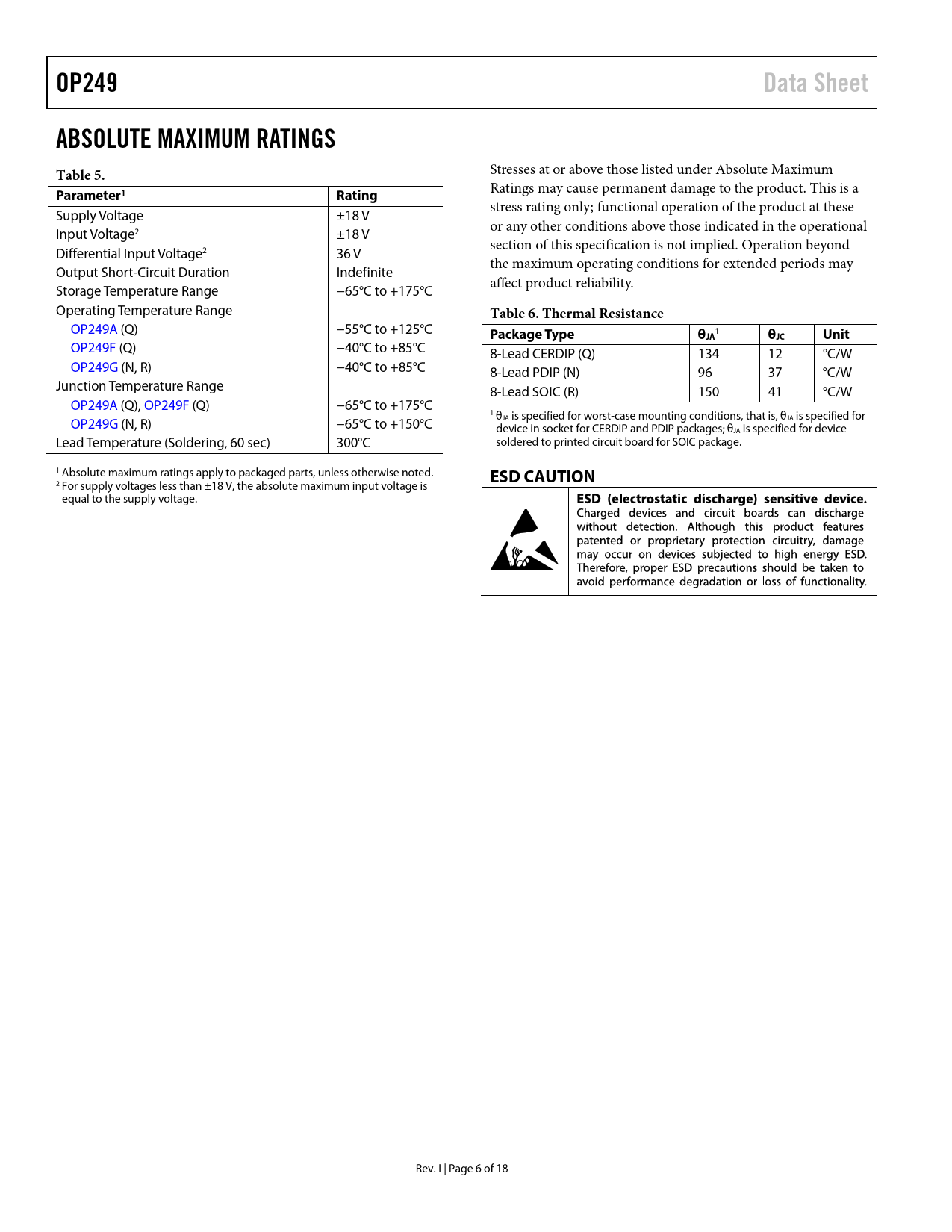

OP249 Data Sheet ABSOLUTE MAXIMUM RATINGS Table 5.
Stresses at or above those listed under Absolute Maximum
Parameter1 Rating
Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these Supply Voltage ±18 V or any other conditions above those indicated in the operational Input Voltage2 ±18 V section of this specification is not implied. Operation beyond Differential Input Voltage2 36 V the maximum operating conditions for extended periods may Output Short-Circuit Duration Indefinite affect product reliability. Storage Temperature Range −65°C to +175°C Operating Temperature Range
Table 6. Thermal Resistance
OP249A (Q) −55°C to +125°C
Package Type θ 1 JA θJC Unit
OP249F (Q) −40°C to +85°C 8-Lead CERDIP (Q) 134 12 °C/W OP249G (N, R) −40°C to +85°C 8-Lead PDIP (N) 96 37 °C/W Junction Temperature Range 8-Lead SOIC (R) 150 41 °C/W OP249A (Q), OP249F (Q) −65°C to +175°C 1 θ OP249G (N, R) −65°C to +150°C JA is specified for worst-case mounting conditions, that is, θJA is specified for device in socket for CERDIP and PDIP packages; θJA is specified for device Lead Temperature (Soldering, 60 sec) 300°C soldered to printed circuit board for SOIC package. 1 Absolute maximum ratings apply to packaged parts, unless otherwise noted.
ESD CAUTION
2 For supply voltages less than ±18 V, the absolute maximum input voltage is equal to the supply voltage. Rev. I | Page 6 of 18 Document Outline Features Applications Pin Configurations General Description Table of Contents Revision History Specifications Electrical Characteristics Absolute Maximum Ratings ESD Caution Typical Performance Characteristics Applications Information Open-Loop Gain Linearity Offset Voltage Adjustment Settling Time DAC Output Amplifier Discussion on Driving ADCs Outline Dimensions Ordering Guide
