Datasheet AD822 (Analog Devices) - 4
| Fabricante | Analog Devices |
| Descripción | Single-Supply, Rail-to-Rail Low Power FET-Input Dual Op Amp |
| Páginas / Página | 25 / 4 — Data Sheet. AD822. 20µs. 100 .. .. VOUT. (GND) |
| Revisión | J |
| Formato / tamaño de archivo | PDF / 538 Kb |
| Idioma del documento | Inglés |
Data Sheet. AD822. 20µs. 100 .. .. VOUT. (GND)
Línea de modelo para esta hoja de datos
AD822
Versión de texto del documento
Data Sheet AD822
The AD822 drives up to 350 pF of direct capacitive load as a fol ower and provides a minimum output current of 15 mA.
1V 1V 20µs
This al ows the amplifier to handle a wide range of load conditions.
100 . . . .
Its combination of ac and dc performance, plus the outstanding
90 5V
load drive capability, results in an exceptionally versatile amplifier
.
for the single-supply user.
VOUT
The AD822 is available in two performance grades. The A grade and B grade are rated over the industrial temperature range of −40°C to +85°C.
10 . . 0%
The AD822 is offered in three varieties of 8-lead packages:
0V (GND)
PDIP, MSOP, and SOIC_N.
1V

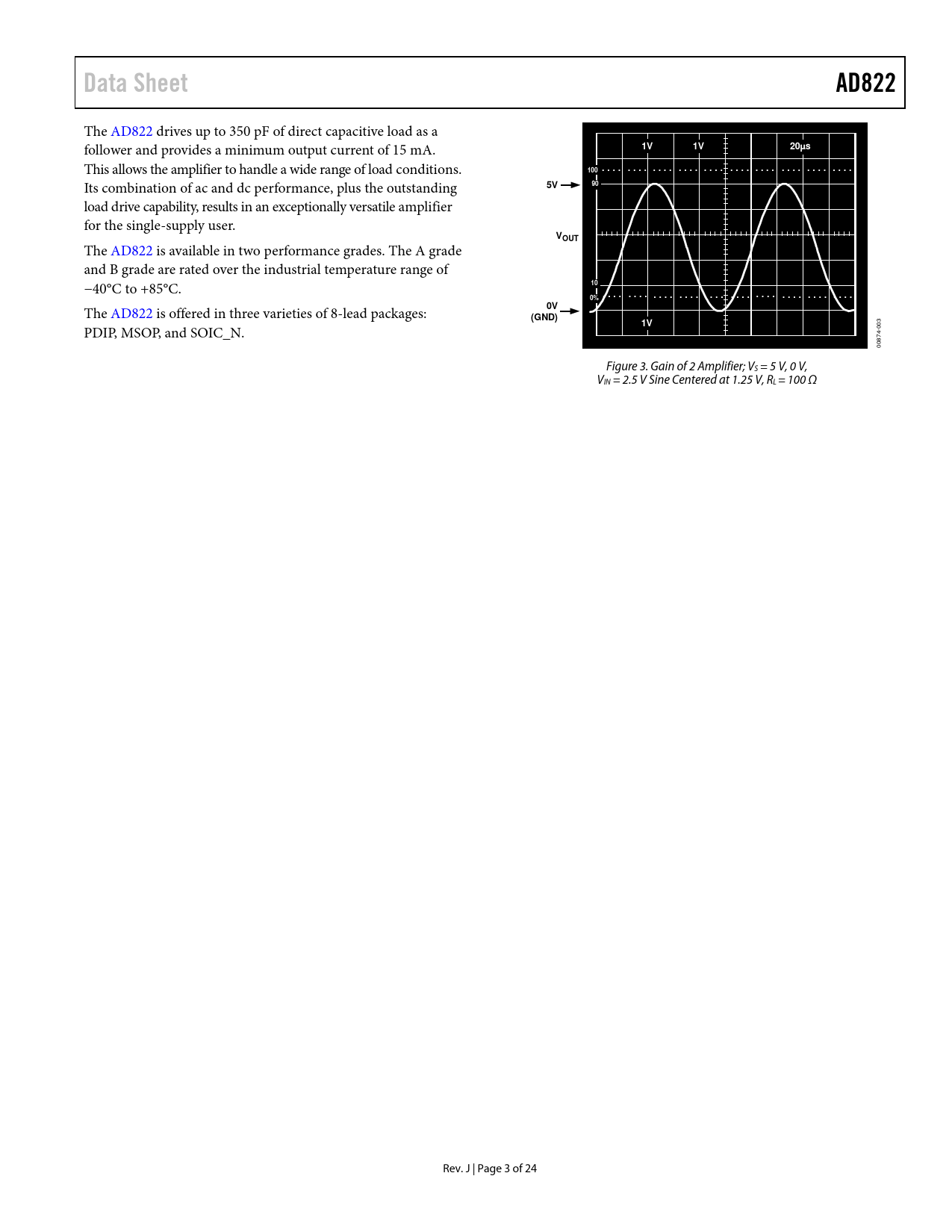

003 00874- Figure 3. Gain of 2 Amplifier; VS = 5 V, 0 V, VIN = 2.5 V Sine Centered at 1.25 V, RL = 100 Ω Rev. J | Page 3 of 24 Document Outline FEATURES APPLICATIONS CONNECTION DIAGRAM GENERAL DESCRIPTION REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE MAXIMUM POWER DISSIPATION ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS APPLICATIONS INFORMATION INPUT CHARACTERISTICS OUTPUT CHARACTERISTICS SINGLE-SUPPLY VOLTAGE TO FREQUENCY CONVERTER LOW DROPOUT BIPOLAR BRIDGE DRIVER OUTLINE DIMENSIONS ORDERING GUIDE
