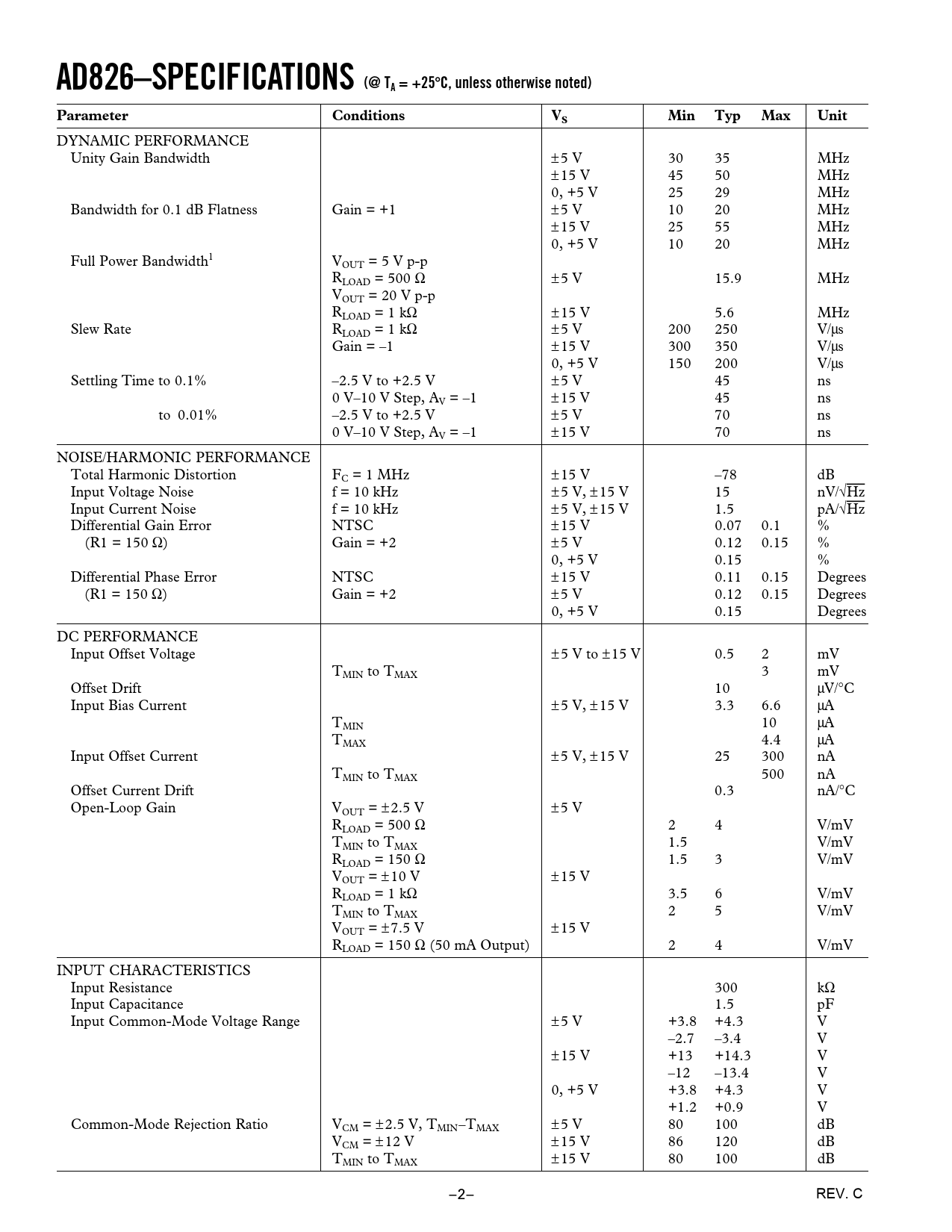

AD826–SPECIFICATIONS (@ TA = +25 C, unless otherwise noted) Parameter Conditions VS Min Typ Max Unit
