Datasheet OP295, OP495 (Analog Devices) - 5
| Fabricante | Analog Devices |
| Descripción | Dual/Quad Rail-to-Rail Operational Amplifiers |
| Páginas / Página | 16 / 5 — OP295/OP495. ABSOLUTE MAXIMUM RATINGS. THERMAL RESISTANCE. Table 4. … |
| Revisión | G |
| Formato / tamaño de archivo | PDF / 379 Kb |
| Idioma del documento | Inglés |

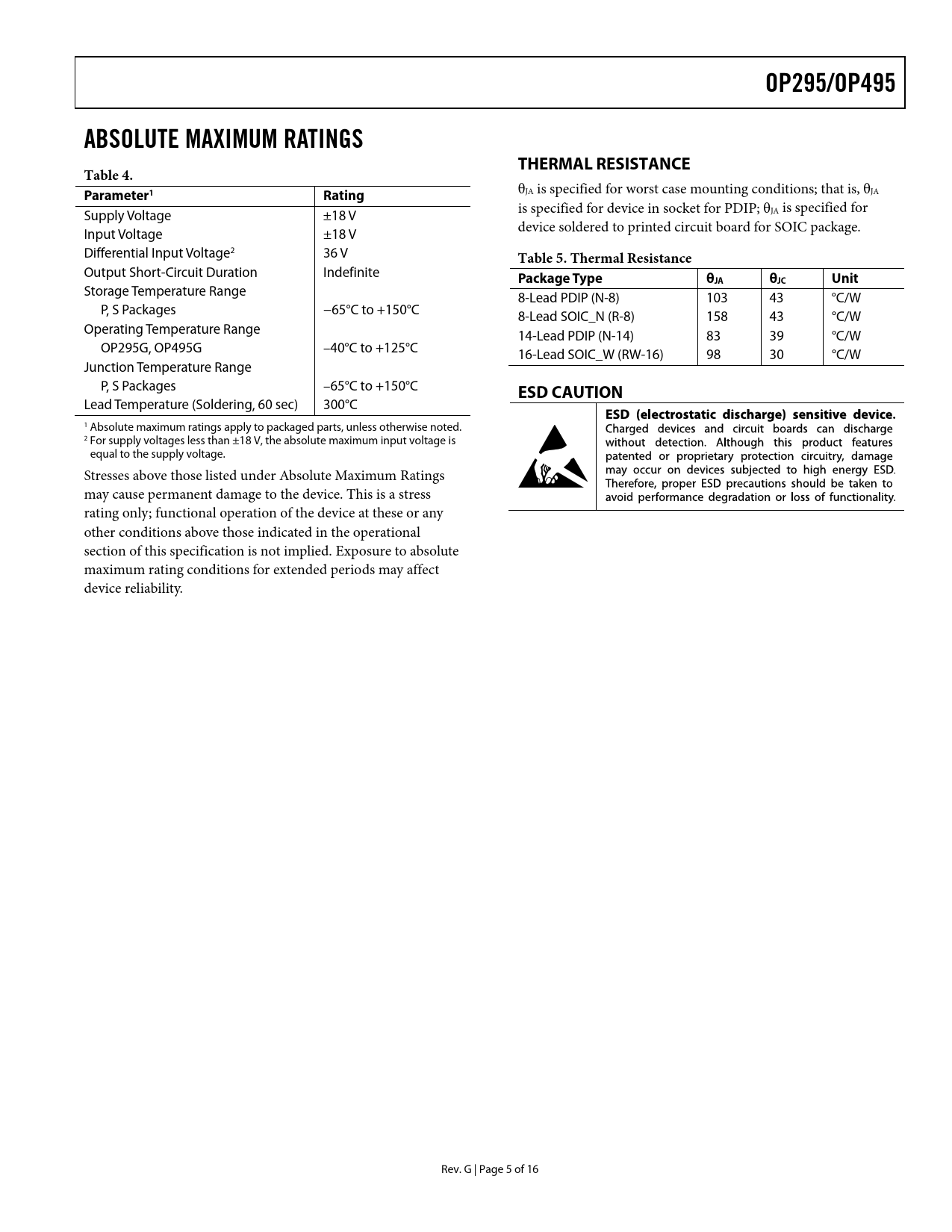

OP295/OP495. ABSOLUTE MAXIMUM RATINGS. THERMAL RESISTANCE. Table 4. Parameter1. Rating. Table 5. Thermal Resistance. Package Type. θJA
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 5 link to page 5
OP295/OP495 ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE Table 4.
θ
Parameter1 Rating
JA is specified for worst case mounting conditions; that is, θJA is specified for device in socket for PDIP; θ Supply Voltage ±18 V JA is specified for device soldered to printed circuit board for SOIC package. Input Voltage ±18 V Differential Input Voltage2 36 V
Table 5. Thermal Resistance
Output Short-Circuit Duration Indefinite
Package Type θJA θJC Unit
Storage Temperature Range 8-Lead PDIP (N-8) 103 43 °C/W P, S Packages −65°C to +150°C 8-Lead SOIC_N (R-8) 158 43 °C/W Operating Temperature Range 14-Lead PDIP (N-14) 83 39 °C/W OP295G, OP495G –40°C to +125°C 16-Lead SOIC_W (RW-16) 98 30 °C/W Junction Temperature Range P, S Packages –65°C to +150°C
ESD CAUTION
Lead Temperature (Soldering, 60 sec) 300°C 1 Absolute maximum ratings apply to packaged parts, unless otherwise noted. 2 For supply voltages less than ±18 V, the absolute maximum input voltage is equal to the supply voltage. Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Rev. G | Page 5 of 16 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION PIN CONFIGURATIONS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS APPLICATIONS RAIL-TO-RAIL APPLICATION INFORMATION LOW DROP-OUT REFERENCE LOW NOISE, SINGLE-SUPPLY PREAMPLIFIER DRIVING HEAVY LOADS DIRECT ACCESS ARRANGEMENT SINGLE-SUPPLY INSTRUMENTATION AMPLIFIER SINGLE-SUPPLY RTD THERMOMETER AMPLIFIER COLD JUNCTION COMPENSATED, BATTERY-POWERED THERMOCOUPLE AMPLIFIER 5 V ONLY, 12-BIT DAC THAT SWINGS 0 V TO 4.095 V 4 mA TO 20 mA CURRENT-LOOP TRANSMITTER 3 V LOW DROPOUT LINEAR VOLTAGE REGULATOR LOW DROPOUT, 500 mA VOLTAGE REGULATOR WITH FOLDBACK CURRENT LIMITING SQUARE WAVE OSCILLATOR SINGLE-SUPPLY DIFFERENTIAL SPEAKER DRIVER HIGH ACCURACY, SINGLE-SUPPLY, LOW POWER COMPARATOR OUTLINE DIMENSIONS ORDERING GUIDE
