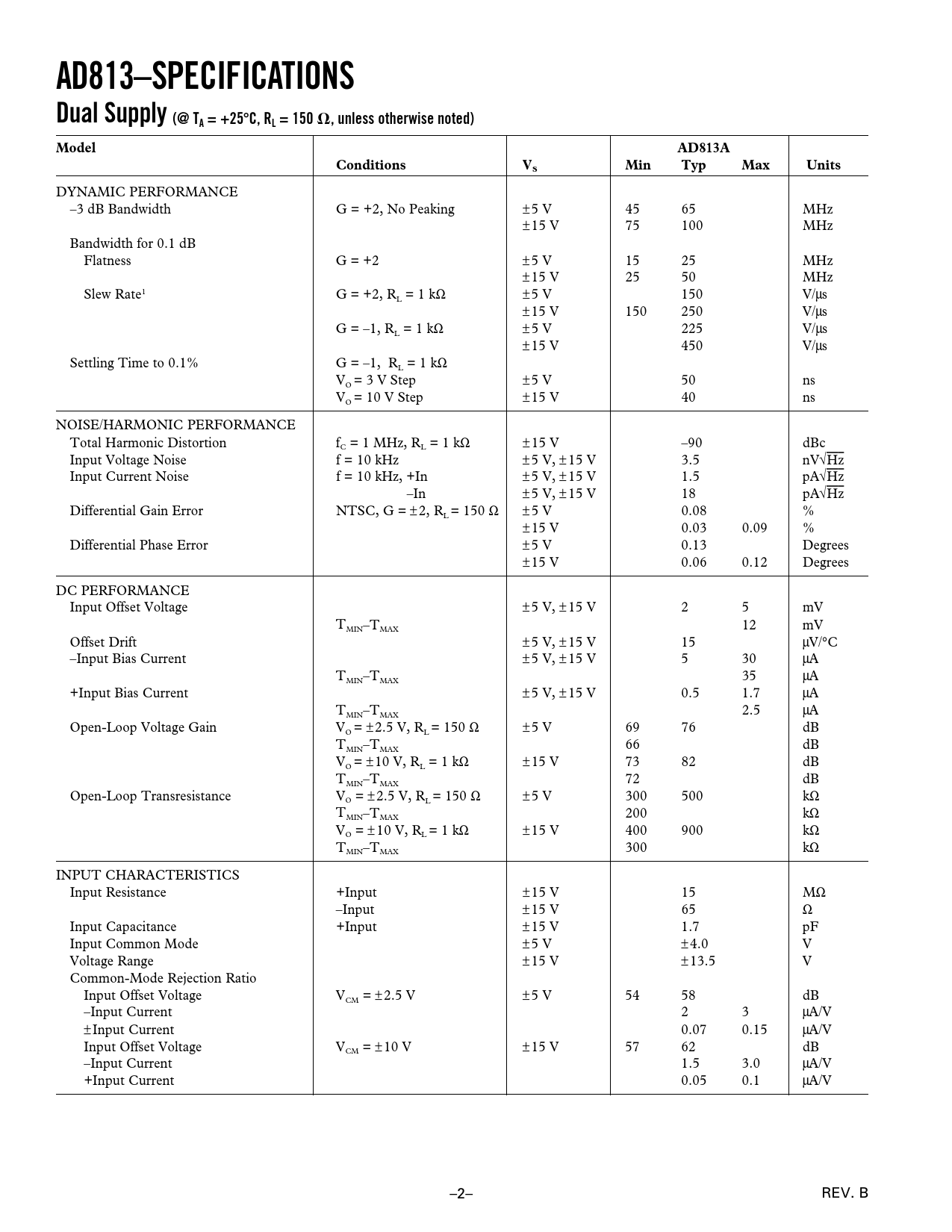

AD813–SPECIFICATIONS Dual Supply (@ TA = +25
8
C, RL = 150
V
, unless otherwise noted) Model AD813A Conditions V Min Typ Max Units S
DYNAMIC PERFORMANCE –3 dB Bandwidth G = +2, No Peaking ±5 V 45 65 MHz ±15 V 75 100 MHz Bandwidth for 0.1 dB Flatness G = +2 ±5 V 15 25 MHz ±15 V 25 50 MHz Slew Rate1 G = +2, R = 1 kΩ ±5 V 150 V/µs L ±15 V 150 250 V/µs G = –1, R = 1 kΩ ±5 V 225 V/µs L ±15 V 450 V/µs Settling Time to 0.1% G = –1, R = 1 kΩ L V = 3 V Step ±5 V 50 ns O V = 10 V Step ±15 V 40 ns O NOISE/HARMONIC PERFORMANCE Total Harmonic Distortion f = 1 MHz, R = 1 kΩ ±15 V –90 dBc C L Input Voltage Noise f = 10 kHz ±5 V, ± 15 V 3.5 nV√Hz Input Current Noise f = 10 kHz, +In ±5 V, ± 15 V 1.5 pA√Hz –In ±5 V, ± 15 V 18 pA√Hz Differential Gain Error NTSC, G = ± 2, R = 150 Ω ±5 V 0.08 % L ±15 V 0.03 0.09 % Differential Phase Error ±5 V 0.13 Degrees ±15 V 0.06 0.12 Degrees DC PERFORMANCE Input Offset Voltage ±5 V, ± 15 V 2 5 mV T –T 12 mV MIN MAX Offset Drift ±5 V, ± 15 V 15 µV/°C –Input Bias Current ±5 V, ± 15 V 5 30 µA T –T 35 µA MIN MAX +Input Bias Current ±5 V, ± 15 V 0.5 1.7 µA T –T 2.5 µA MIN MAX Open-Loop Voltage Gain V = ± 2.5 V, R = 150 Ω ±5 V 69 76 dB O L T –T 66 dB MIN MAX V = ± 10 V, R = 1 kΩ ±15 V 73 82 dB O L T –T 72 dB MIN MAX Open-Loop Transresistance V = ± 2.5 V, R = 150 Ω ±5 V 300 500 kΩ O L T –T 200 kΩ MIN MAX V = ± 10 V, R = 1 kΩ ±15 V 400 900 kΩ O L T –T 300 kΩ MIN MAX INPUT CHARACTERISTICS Input Resistance +Input ±15 V 15 MΩ –Input ±15 V 65 Ω Input Capacitance +Input ±15 V 1.7 pF Input Common Mode ±5 V ±4.0 V Voltage Range ±15 V ±13.5 V Common-Mode Rejection Ratio Input Offset Voltage V = ± 2.5 V ±5 V 54 58 dB CM –Input Current 2 3 µA/V ±Input Current 0.07 0.15 µA/V Input Offset Voltage V = ± 10 V ±15 V 57 62 dB CM –Input Current 1.5 3.0 µA/V +Input Current 0.05 0.1 µA/V –2– REV. B
