Datasheet OP193, OP293 (Analog Devices)

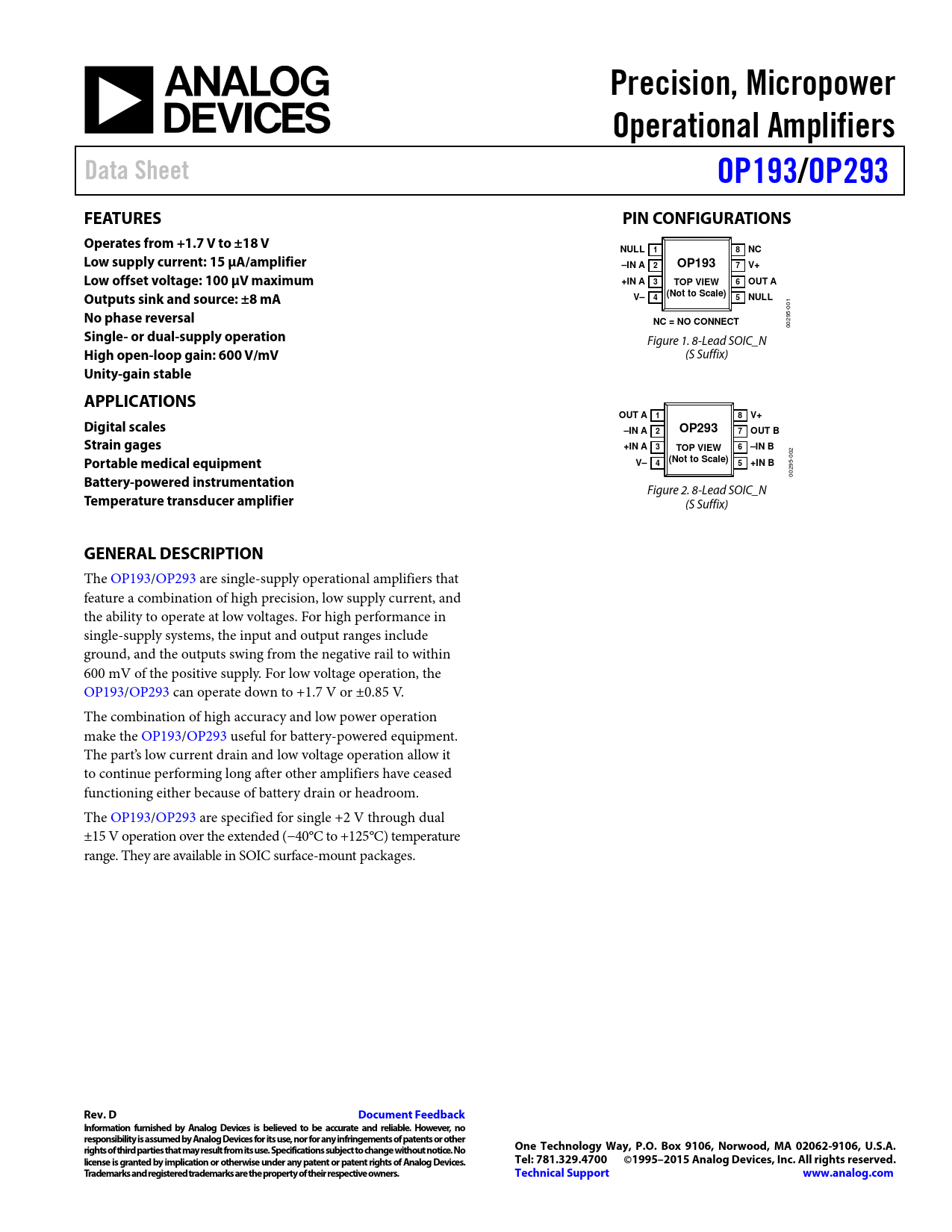

Precision, Micropower Operational Amplifiers Data Sheet OP193/ OP293 FEATURES PIN CONFIGURATIONS Operates from +1.7 V to ±18 V NULL 1 8 NC Low supply current: 15 µA/amplifier –IN A 2 OP193 7 V+ Low offset voltage: 100 µV maximum +IN A 3 6 TOP VIEW OUT A Outputs sink and source: ±8 mA V– (Not to Scale) 4 5 NULL
001
No phase reversal NC = NO CONNECT
00295-
Single- or dual-supply operation
Figure 1. 8-Lead SOIC_N
High open-loop gain: 600 V/mV
(S Suffix)
Unity-gain stable APPLICATIONS OUT A 1 8 V+ Digital scales –IN A 2 OP293 7 OUT B Strain gages +IN A 3 6 TOP VIEW –IN B Portable medical equipment
002
V– (Not to Scale) 4 5 +IN B Battery-powered instrumentation
00295- Figure 2. 8-Lead SOIC_N
Temperature transducer amplifier
(S Suffix)
GENERAL DESCRIPTION
The OP193/OP293 are single-supply operational amplifiers that feature a combination of high precision, low supply current, and the ability to operate at low voltages. For high performance in single-supply systems, the input and output ranges include ground, and the outputs swing from the negative rail to within 600 mV of the positive supply. For low voltage operation, the OP193/OP293 can operate down to +1.7 V or ±0.85 V. The combination of high accuracy and low power operation make the OP193/OP293 useful for battery-powered equipment. The part’s low current drain and low voltage operation al ow it to continue performing long after other amplifiers have ceased functioning either because of battery drain or headroom. The OP193/OP293 are specified for single +2 V through dual ±15 V operation over the extended (−40°C to +125°C) temperature range. They are available in SOIC surface-mount packages.
Rev. D Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 ©1995–2015 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. Technical Support www.analog.com
Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION PIN CONFIGURATIONS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS FUNCTIONAL DESCRIPTION DRIVING CAPACITIVE LOADS INPUT OVERVOLTAGE PROTECTION OUTPUT PHASE REVERSAL—OP193 OUTPUT PHASE REVERSAL—OP293 BATTERY-POWERED APPLICATIONS A MICROPOWER FALSE-GROUND GENERATOR A BATTERY-POWERED VOLTAGE REFERENCE A SINGLE-SUPPLY CURRENT MONITOR A SINGLE-SUPPLY INSTRUMENTATION AMPLIFIER A LOW POWER, TEMPERATURE TO 4 mA TO 20 mA TRANSMITTER A MICROPOWER VOLTAGE CONTROLLED OSCILLATOR OUTLINE DIMENSIONS ORDERING GUIDE
