Datasheet OP281, OP481 (Analog Devices)

FabricanteAnalog Devices
DescripciónUltralow Power, Rail-to-Rail Output Operational Amplifiers
Páginas / Página20 / 1 — Ultralow Power, Rail-to-Rail Output. Operational Amplifiers. OP281/OP481. …
RevisiónD
Formato / tamaño de archivoPDF / 400 Kb
Idioma del documentoInglés

Ultralow Power, Rail-to-Rail Output. Operational Amplifiers. OP281/OP481. FEATURES. PIN CONFIGURATIONS

Datasheet OP281, OP481 Analog Devices, Revisión: D

Línea de modelo para esta hoja de datos

Versión de texto del documento

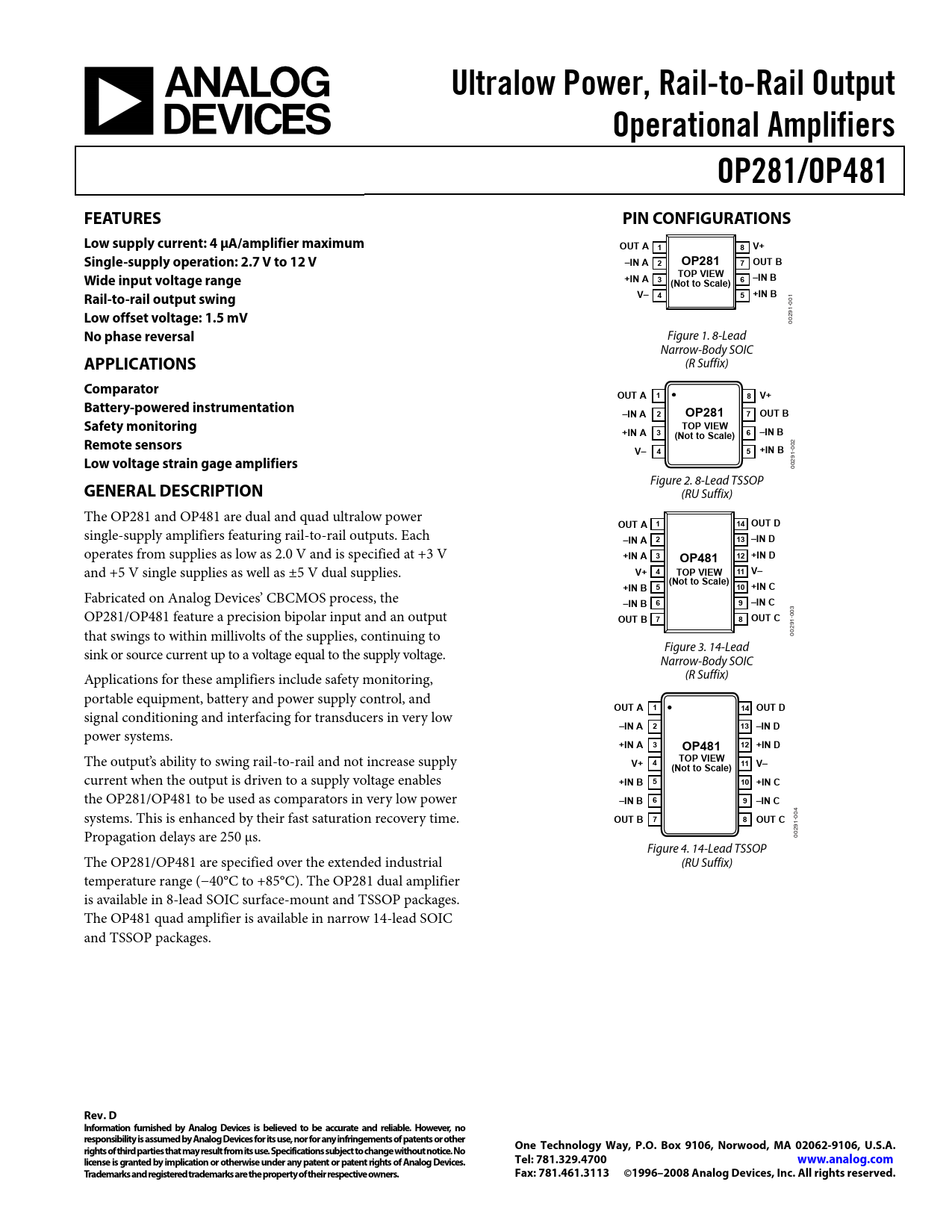

Ultralow Power, Rail-to-Rail Output Operational Amplifiers OP281/OP481 FEATURES PIN CONFIGURATIONS Low supply current: 4 μA/amplifier maximum OUT A 1 8 V+ Single-supply operation: 2.7 V to 12 V –IN A 2 OP281 7 OUT B TOP VIEW Wide input voltage range +IN A 3 6 –IN B (Not to Scale) Rail-to-rail output swing V– 4 5 +IN B
1 0 0 1-
Low offset voltage: 1.5 mV
29 00
No phase reversal
Figure 1. 8-Lead Narrow-Body SOIC
APPLICATIONS
(R Suffix)
Comparator OUT A 1 8 V+ Battery-powered instrumentation –IN A 2 OP281 7 OUT B Safety monitoring TOP VIEW +IN A 3 (Not to Scale) 6 –IN B Remote sensors
2
V– 4 5
-00
+IN B Low voltage strain gage amplifiers
291 00 Figure 2. 8-Lead TSSOP
GENERAL DESCRIPTION
(RU Suffix) The OP281 and OP481 are dual and quad ultralow power
OUT A 1 14 OUT D
single-supply amplifiers featuring rail-to-rail outputs. Each
–IN A 2 13 –IN D
operates from supplies as low as 2.0 V and is specified at +3 V
+IN A 3 12 +IN D OP481
and +5 V single supplies as well as ±5 V dual supplies.
V+ 4 TOP VIEW 11 V– (Not to Scale) +IN B 5 10 +IN C
Fabricated on Analog Devices’ CBCMOS process, the
–IN B 6 9 –IN C
3 OP281/OP481 feature a precision bipolar input and an output 0
OUT B 7 8 OUT C
0 1- 29 that swings to within millivolts of the supplies, continuing to 00 Figure 3. 14-Lead sink or source current up to a voltage equal to the supply voltage. Narrow-Body SOIC Applications for these amplifiers include safety monitoring, (R Suffix) portable equipment, battery and power supply control, and
OUT A 1 14 OUT D
signal conditioning and interfacing for transducers in very low
–IN A 2 13 –IN D
power systems.
+IN A 3 OP481 12 +IN D
The output’s ability to swing rail-to-rail and not increase supply
V+ TOP VIEW 4 11 V– (Not to Scale)
current when the output is driven to a supply voltage enables
+IN B 5 10 +IN C
the OP281/OP481 to be used as comparators in very low power
–IN B 6 9 –IN C
systems. This is enhanced by their fast saturation recovery time. 04
OUT B 7 8 OUT C
0 1- Propagation delays are 250 μs. 029 0 Figure 4. 14-Lead TSSOP The OP281/OP481 are specified over the extended industrial (RU Suffix) temperature range (−40°C to +85°C). The OP281 dual amplifier is available in 8-lead SOIC surface-mount and TSSOP packages. The OP481 quad amplifier is available in narrow 14-lead SOIC and TSSOP packages.
