500 MHz, G = +1 and +2 Triple. Video Buffers with Disable. AD8074/. AD8075. FEATURES. FUNCTIONAL BLOCK DIAGRAM. Dual Supply
Línea de modelo para esta hoja de datos
Versión de texto del documento
a

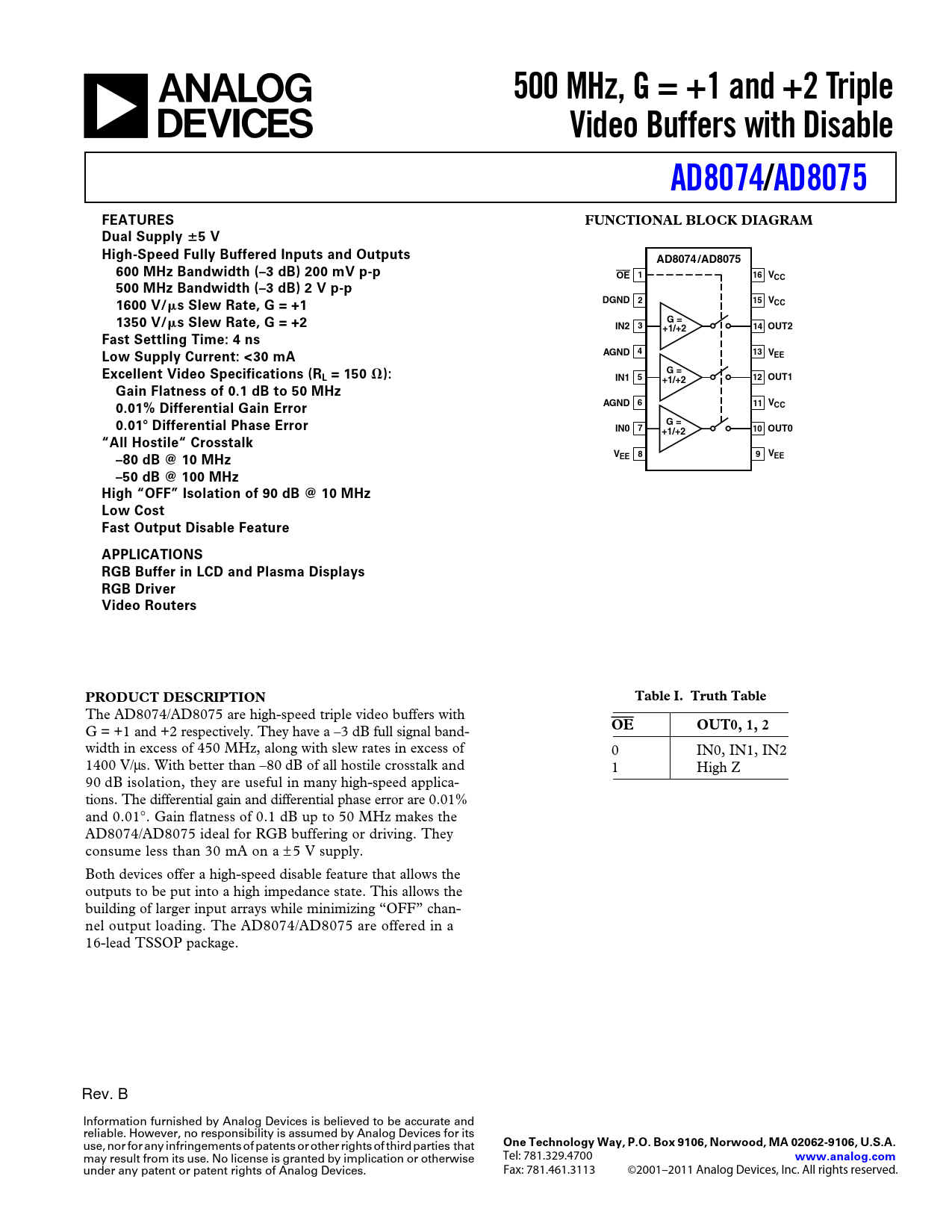

500 MHz, G = +1 and +2 Triple Video Buffers with Disable AD8074/ AD8075 FEATURES FUNCTIONAL BLOCK DIAGRAM Dual Supply
ⴞ
5 V High-Speed Fully Buffered Inputs and Outputs AD8074 /AD8075 600 MHz Bandwidth (–3 dB) 200 mV p-p OE 1 16 VCC 500 MHz Bandwidth (–3 dB) 2 V p-p DGND 2 15 VCC 1600 V/
s Slew Rate, G = +1 G = 1350 V/
s Slew Rate, G = +2 IN2 3 14 OUT2 +1/+2 Fast Settling Time: 4 ns AGND 4 13 VEE Low Supply Current: < 30 mA G = Excellent Video Specifications (RL = 150
⍀
): IN1 5 12 OUT1 +1/+2 Gain Flatness of 0.1 dB to 50 MHz AGND 6 11 VCC 0.01% Differential Gain Error G = 0.01
ⴗ
Differential Phase Error IN0 7 10 OUT0 +1/+2 “All Hostile“ Crosstalk VEE 8 9 VEE –80 dB @ 10 MHz –50 dB @ 100 MHz High “OFF” Isolation of 90 dB @ 10 MHz Low Cost Fast Output Disable Feature APPLICATIONS RGB Buffer in LCD and Plasma Displays RGB Driver Video Routers PRODUCT DESCRIPTION Table I. Truth Table
The AD8074/AD8075 are high-speed triple video buffers with
OE OUT0, 1, 2
G = +1 and +2 respectively. They have a –3 dB full signal band- width in excess of 450 MHz, along with slew rates in excess of 0 IN0, IN1, IN2 1400 V/µs. With better than –80 dB of all hostile crosstalk and 1 High Z 90 dB isolation, they are useful in many high-speed applica- tions. The differential gain and differential phase error are 0.01% and 0.01°. Gain flatness of 0.1 dB up to 50 MHz makes the AD8074/AD8075 ideal for RGB buffering or driving. They consume less than 30 mA on a ± 5 V supply. Both devices offer a high-speed disable feature that allows the outputs to be put into a high impedance state. This allows the building of larger input arrays while minimizing “OFF” chan- nel output loading. The AD8074/AD8075 are offered in a 16-lead TSSOP package. Rev. B Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
may result from its use. No license is granted by implication or otherwise Tel: 781.329.4700
www.analog.com
under any patent or patent rights of Analog Devices. Fax: 781.461.3113 ©2001–2011 Analog Devices, Inc. All rights reserved. Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM PRODUCT DESCRIPTION AD8074/AD8075-SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION ESD CAUTION MAXIMUM POWER DISSIPATION AD8074/AD8075-TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION OUTLINE DIMENSIONS ORDERING GUIDE
