AD8565/AD8566/AD8567. SPECIFICATIONS ELECTRICAL CHARACTERISTICS. Table 1. Parameter. Symbol. Conditions. Min. Typ. Max. Unit
Versión de texto del documento

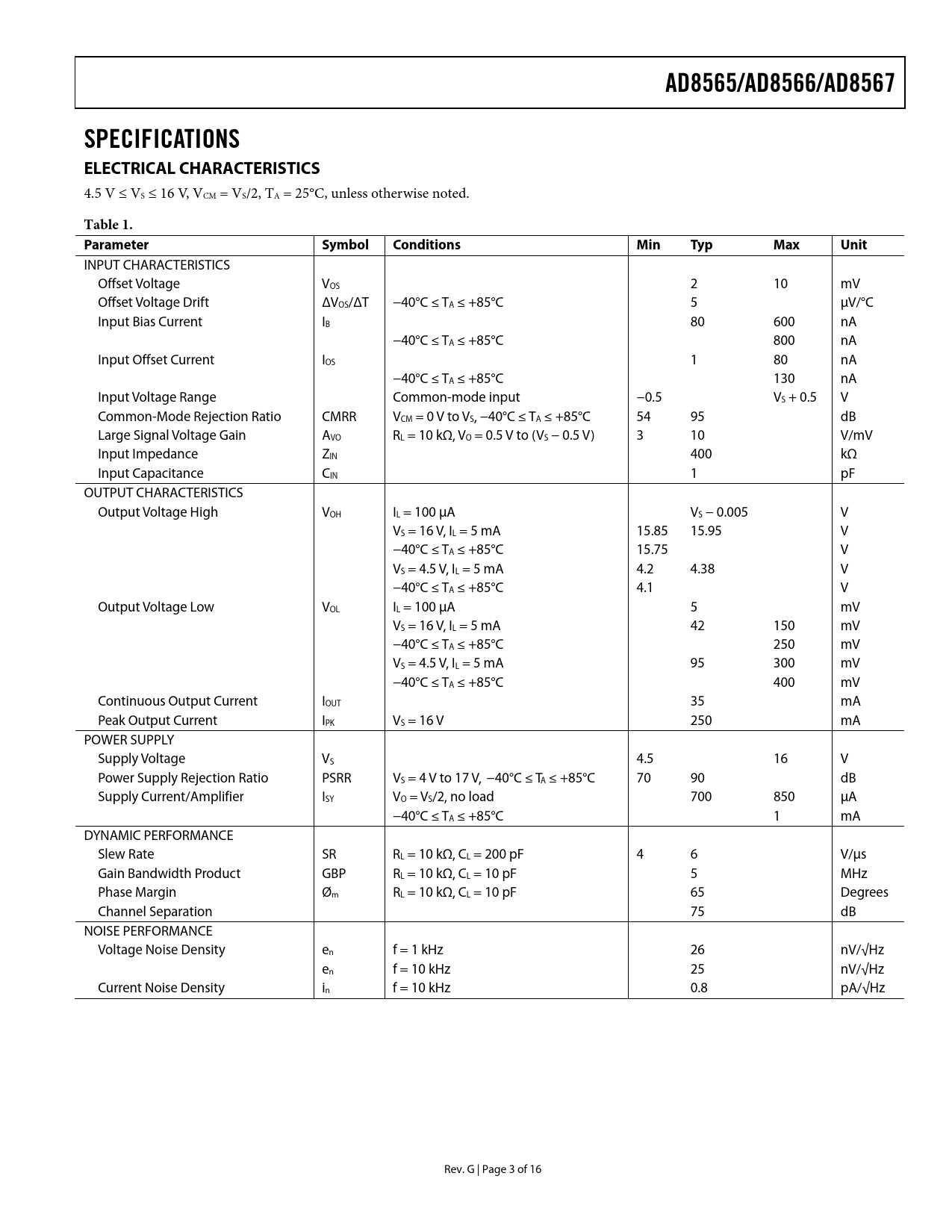

AD8565/AD8566/AD8567 SPECIFICATIONS ELECTRICAL CHARACTERISTICS
4.5 V ≤ VS ≤ 16 V, VCM = VS/2, TA = 25°C, unless otherwise noted.
Table 1. Parameter Symbol Conditions Min Typ Max Unit
INPUT CHARACTERISTICS Offset Voltage VOS 2 10 mV Offset Voltage Drift ΔVOS/ΔT −40°C ≤ TA ≤ +85°C 5 µV/°C Input Bias Current IB 80 600 nA −40°C ≤ TA ≤ +85°C 800 nA Input Offset Current IOS 1 80 nA −40°C ≤ TA ≤ +85°C 130 nA Input Voltage Range Common-mode input −0.5 VS + 0.5 V Common-Mode Rejection Ratio CMRR VCM = 0 V to VS, −40°C ≤ TA ≤ +85°C 54 95 dB Large Signal Voltage Gain AVO RL = 10 kΩ, VO = 0.5 V to (VS − 0.5 V) 3 10 V/mV Input Impedance ZIN 400 kΩ Input Capacitance CIN 1 pF OUTPUT CHARACTERISTICS Output Voltage High VOH IL = 100 µA VS − 0.005 V VS = 16 V, IL = 5 mA 15.85 15.95 V −40°C ≤ TA ≤ +85°C 15.75 V VS = 4.5 V, IL = 5 mA 4.2 4.38 V −40°C ≤ TA ≤ +85°C 4.1 V Output Voltage Low VOL IL = 100 µA 5 mV VS = 16 V, IL = 5 mA 42 150 mV −40°C ≤ TA ≤ +85°C 250 mV VS = 4.5 V, IL = 5 mA 95 300 mV −40°C ≤ TA ≤ +85°C 400 mV Continuous Output Current IOUT 35 mA Peak Output Current IPK VS = 16 V 250 mA POWER SUPPLY Supply Voltage VS 4.5 16 V Power Supply Rejection Ratio PSRR VS = 4 V to 17 V, −40°C ≤ TA ≤ +85°C 70 90 dB Supply Current/Amplifier ISY VO = VS/2, no load 700 850 µA −40°C ≤ TA ≤ +85°C 1 mA DYNAMIC PERFORMANCE Slew Rate SR RL = 10 kΩ, CL = 200 pF 4 6 V/µs Gain Bandwidth Product GBP RL = 10 kΩ, CL = 10 pF 5 MHz Phase Margin Øm RL = 10 kΩ, CL = 10 pF 65 Degrees Channel Separation 75 dB NOISE PERFORMANCE Voltage Noise Density en f = 1 kHz 26 nV/√Hz en f = 10 kHz 25 nV/√Hz Current Noise Density in f = 10 kHz 0.8 pA/√Hz Rev. G | Page 3 of 16 Document Outline Features Applications General Description Pin Configurations Revision History Specifications Electrical Characteristics Absolute Maximum Ratings Thermal Resistance ESD Caution Typical Performance Characteristics Theory of Operation Input Overvoltage Protection Output Phase Reversal Power Dissipation Thermal Pad—AD8567 Total Harmonic Distortion + Noise (THD + N) Short-Circuit Output Conditions LCD Panel Applications Outline Dimensions Ordering Guide
4.5 V ≤ VS ≤ 16 V, VCM = VS/2, TA = 25°C, unless otherwise noted.
Table 1. Parameter Symbol Conditions Min Typ Max Unit
INPUT CHARACTERISTICS Offset Voltage VOS 2 10 mV Offset Voltage Drift ΔVOS/ΔT −40°C ≤ TA ≤ +85°C 5 µV/°C Input Bias Current IB 80 600 nA −40°C ≤ TA ≤ +85°C 800 nA Input Offset Current IOS 1 80 nA −40°C ≤ TA ≤ +85°C 130 nA Input Voltage Range Common-mode input −0.5 VS + 0.5 V Common-Mode Rejection Ratio CMRR VCM = 0 V to VS, −40°C ≤ TA ≤ +85°C 54 95 dB Large Signal Voltage Gain AVO RL = 10 kΩ, VO = 0.5 V to (VS − 0.5 V) 3 10 V/mV Input Impedance ZIN 400 kΩ Input Capacitance CIN 1 pF OUTPUT CHARACTERISTICS Output Voltage High VOH IL = 100 µA VS − 0.005 V VS = 16 V, IL = 5 mA 15.85 15.95 V −40°C ≤ TA ≤ +85°C 15.75 V VS = 4.5 V, IL = 5 mA 4.2 4.38 V −40°C ≤ TA ≤ +85°C 4.1 V Output Voltage Low VOL IL = 100 µA 5 mV VS = 16 V, IL = 5 mA 42 150 mV −40°C ≤ TA ≤ +85°C 250 mV VS = 4.5 V, IL = 5 mA 95 300 mV −40°C ≤ TA ≤ +85°C 400 mV Continuous Output Current IOUT 35 mA Peak Output Current IPK VS = 16 V 250 mA POWER SUPPLY Supply Voltage VS 4.5 16 V Power Supply Rejection Ratio PSRR VS = 4 V to 17 V, −40°C ≤ TA ≤ +85°C 70 90 dB Supply Current/Amplifier ISY VO = VS/2, no load 700 850 µA −40°C ≤ TA ≤ +85°C 1 mA DYNAMIC PERFORMANCE Slew Rate SR RL = 10 kΩ, CL = 200 pF 4 6 V/µs Gain Bandwidth Product GBP RL = 10 kΩ, CL = 10 pF 5 MHz Phase Margin Øm RL = 10 kΩ, CL = 10 pF 65 Degrees Channel Separation 75 dB NOISE PERFORMANCE Voltage Noise Density en f = 1 kHz 26 nV/√Hz en f = 10 kHz 25 nV/√Hz Current Noise Density in f = 10 kHz 0.8 pA/√Hz Rev. G | Page 3 of 16 Document Outline Features Applications General Description Pin Configurations Revision History Specifications Electrical Characteristics Absolute Maximum Ratings Thermal Resistance ESD Caution Typical Performance Characteristics Theory of Operation Input Overvoltage Protection Output Phase Reversal Power Dissipation Thermal Pad—AD8567 Total Harmonic Distortion + Noise (THD + N) Short-Circuit Output Conditions LCD Panel Applications Outline Dimensions Ordering Guide
