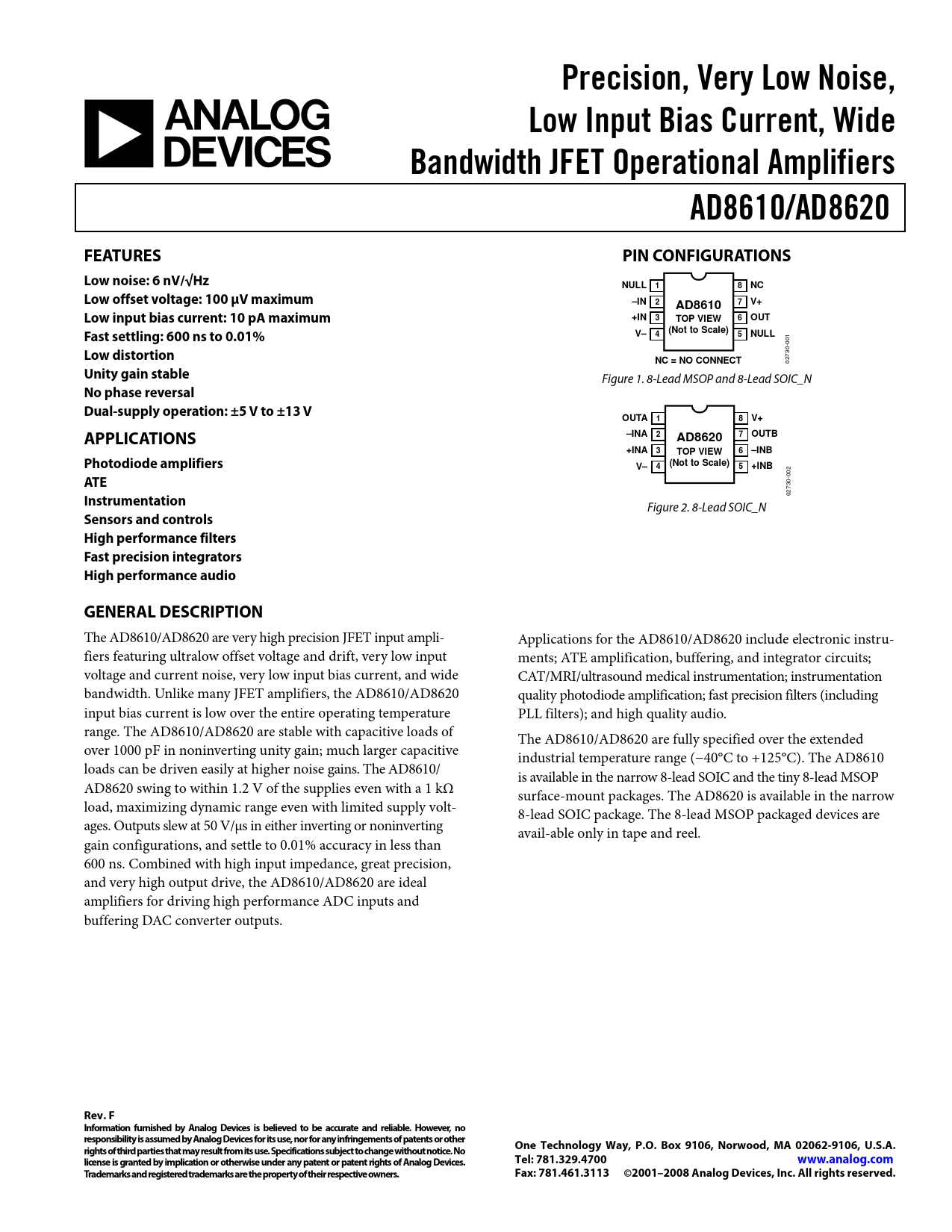

Precision, Very Low Noise, Low Input Bias Current, Wide Bandwidth JFET Operational Amplifiers AD8610/AD8620 FEATURES PIN CONFIGURATIONS Low noise: 6 nV/√Hz NULL 1 8 NC Low offset voltage: 100 μV maximum –IN 2 AD8610 7 V+ Low input bias current: 10 pA maximum +IN 3 TOP VIEW 6 OUT (Not to Scale) Fast settling: 600 ns to 0.01% V– 4 5 NULL
1 0 0 0-
Low distortion
73
NC = NO CONNECT
02
Unity gain stable
Figure 1. 8-Lead MSOP and 8-Lead SOIC_N
No phase reversal Dual-supply operation: ±5 V to ±13 V OUTA 1 8 V+ APPLICATIONS –INA 2 AD8620 7 OUTB +INA 3 TOP VIEW 6 –INB Photodiode amplifiers (Not to Scale) V– 4 5 +INB
02 0
ATE
0- 3 27 0
Instrumentation
Figure 2. 8-Lead SOIC_N
Sensors and controls High performance filters Fast precision integrators High performance audio GENERAL DESCRIPTION
The AD8610/AD8620 are very high precision JFET input ampli- Applications for the AD8610/AD8620 include electronic instru- fiers featuring ultralow offset voltage and drift, very low input ments; ATE amplification, buffering, and integrator circuits; voltage and current noise, very low input bias current, and wide CAT/MRI/ultrasound medical instrumentation; instrumentation bandwidth. Unlike many JFET amplifiers, the AD8610/AD8620 quality photodiode amplification; fast precision filters (including input bias current is low over the entire operating temperature PLL filters); and high quality audio. range. The AD8610/AD8620 are stable with capacitive loads of The AD8610/AD8620 are fully specified over the extended over 1000 pF in noninverting unity gain; much larger capacitive industrial temperature range (−40°C to +125°C). The AD8610 loads can be driven easily at higher noise gains. The AD8610/ is available in the narrow 8-lead SOIC and the tiny 8-lead MSOP AD8620 swing to within 1.2 V of the supplies even with a 1 kΩ surface-mount packages. The AD8620 is available in the narrow load, maximizing dynamic range even with limited supply volt- 8-lead SOIC package. The 8-lead MSOP packaged devices are ages. Outputs slew at 50 V/μs in either inverting or noninverting avail-able only in tape and reel. gain configurations, and settle to 0.01% accuracy in less than 600 ns. Combined with high input impedance, great precision, and very high output drive, the AD8610/AD8620 are ideal amplifiers for driving high performance ADC inputs and buffering DAC converter outputs.
