Datasheet AD8027, AD8028 (Analog Devices) - 9
| Fabricante | Analog Devices |
| Descripción | Low Distortion, High Speed Rail-to-Rail Input/Output Amplifier |
| Páginas / Página | 27 / 9 — Data Sheet. AD8027/AD8028. VOUTA 1. +VS. –IN A 2. 7 VOUTB. +IN A 3. 6 –IN … |
| Revisión | D |
| Formato / tamaño de archivo | PDF / 773 Kb |
| Idioma del documento | Inglés |

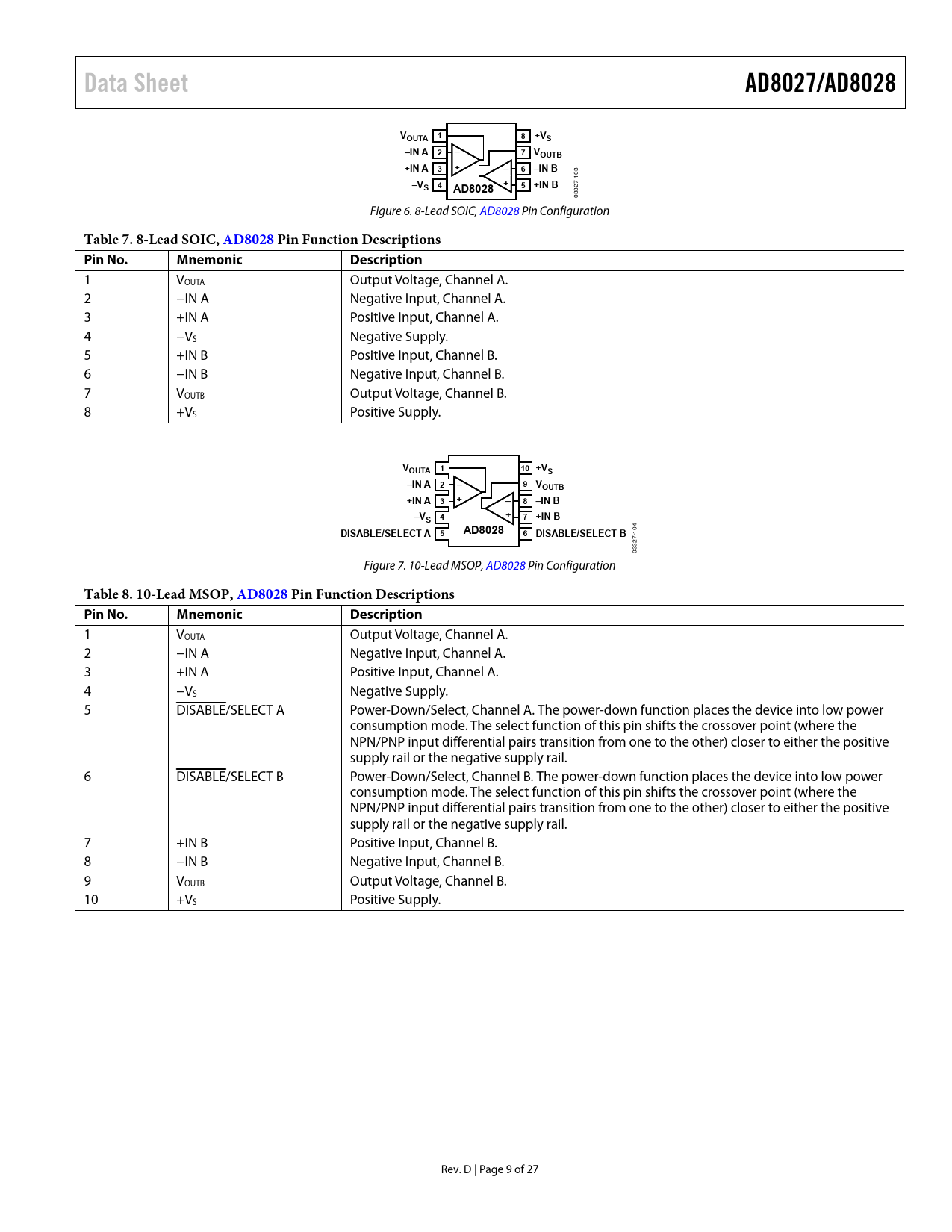

Data Sheet. AD8027/AD8028. VOUTA 1. +VS. –IN A 2. 7 VOUTB. +IN A 3. 6 –IN B. –VS 4. 5 +IN B. AD8028. Table 7. 8-Lead SOIC, AD8028 Pi
Línea de modelo para esta hoja de datos
Versión de texto del documento
Data Sheet AD8027/AD8028 VOUTA 1 8 +VS –IN A 2 – 7 VOUTB +IN A 3 + – 6 –IN B
103
–VS 4 + 5 +IN B AD8028
3327- 0 Figure 6. 8-Lead SOIC, AD8028 Pin Configuration
Table 7. 8-Lead SOIC, AD8028 Pi n Function Descriptions Pin No. Mnemonic Description
1 VOUTA Output Voltage, Channel A. 2 −IN A Negative Input, Channel A. 3 +IN A Positive Input, Channel A. 4 −VS Negative Supply. 5 +IN B Positive Input, Channel B. 6 −IN B Negative Input, Channel B. 7 VOUTB Output Voltage, Channel B. 8 +VS Positive Supply.
V 10 OUTA 1 +VS –IN A 2 – 9 VOUTB +IN A 3 + – 8 –IN B –V + 7 +IN B S 4 AD8028
104
DISABLE/SELECT A 5 6 DISABLE/SELECT B
03327- Figure 7. 10-Lead MSOP, AD8028 Pin Configuration
Table 8. 10-Lead MSOP, AD8028 Pi n Function Descriptions Pin No. Mnemonic Description
1 VOUTA Output Voltage, Channel A. 2 −IN A Negative Input, Channel A. 3 +IN A Positive Input, Channel A. 4 −VS Negative Supply. 5 DISABLE/SELECT A Power-Down/Select, Channel A. The power-down function places the device into low power consumption mode. The select function of this pin shifts the crossover point (where the NPN/PNP input differential pairs transition from one to the other) closer to either the positive supply rail or the negative supply rail. 6 DISABLE/SELECT B Power-Down/Select, Channel B. The power-down function places the device into low power consumption mode. The select function of this pin shifts the crossover point (where the NPN/PNP input differential pairs transition from one to the other) closer to either the positive supply rail or the negative supply rail. 7 +IN B Positive Input, Channel B. 8 −IN B Negative Input, Channel B. 9 VOUTB Output Voltage, Channel B. 10 +VS Positive Supply. Rev. D | Page 9 of 27 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION PIN CONNECTION DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS MAXIMUM POWER DISSIPATION Output Short Circuit ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUIT THEORY OF OPERATION INPUT STAGE CROSSOVER SELECTION OUTPUT STAGE DC ERRORS WIDEBAND OPERATION CIRCUIT CONSIDERATIONS Balanced Input Impedances PCB Layout Grounding Power Supply Bypassing APPLICATIONS INFORMATION USING THE /DISABLE SELECT PIN DRIVING A 16-BIT ADC BAND-PASS FILTER DESIGN TOOLS AND TECHNICAL SUPPORT OUTLINE DIMENSIONS ORDERING GUIDE AUTOMOTIVE PRODUCTS
