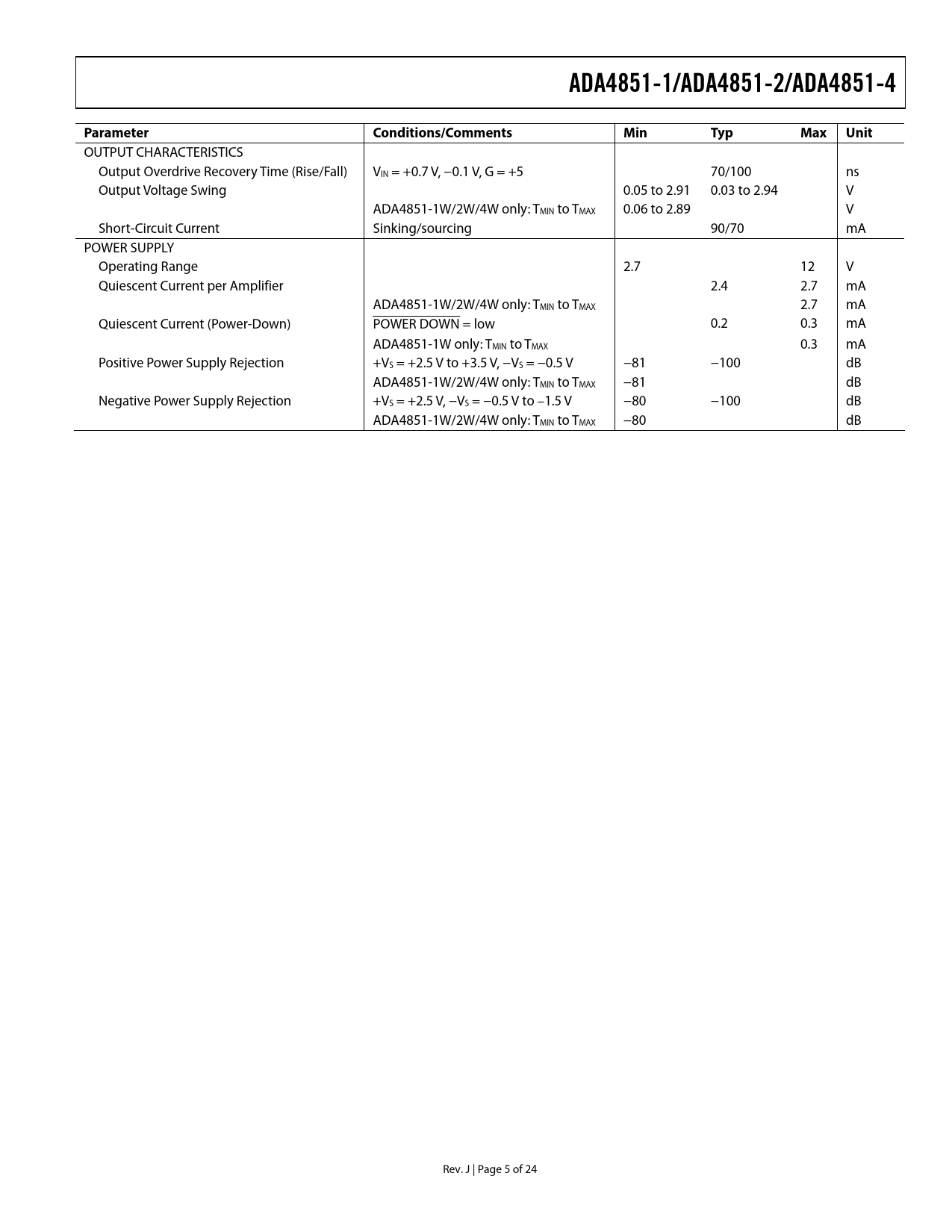

Datasheet ADA4851-1, ADA4851-2, ADA4851-4 (Analog Devices) - 5

ADA4851-1/ADA4851-2/ADA4851-4 Parameter Conditions/Comments Min Typ Max Unit
OUTPUT CHARACTERISTICS Output Overdrive Recovery Time (Rise/Fall) VIN = +0.7 V, −0.1 V, G = +5 70/100 ns Output Voltage Swing 0.05 to 2.91 0.03 to 2.94 V ADA4851-1W/2W/4W only: TMIN to TMAX 0.06 to 2.89 V Short-Circuit Current Sinking/sourcing 90/70 mA POWER SUPPLY Operating Range 2.7 12 V Quiescent Current per Amplifier 2.4 2.7 mA ADA4851-1W/2W/4W only: TMIN to TMAX 2.7 mA Quiescent Current (Power-Down) POWER DOWN = low 0.2 0.3 mA ADA4851-1W only: TMIN to TMAX 0.3 mA Positive Power Supply Rejection +VS = +2.5 V to +3.5 V, −VS = −0.5 V −81 −100 dB ADA4851-1W/2W/4W only: TMIN to TMAX −81 dB Negative Power Supply Rejection +VS = +2.5 V, −VS = −0.5 V to –1.5 V −80 −100 dB ADA4851-1W/2W/4W only: TMIN to TMAX −80 dB Rev. J | Page 5 of 24 Document Outline FEATURES APPLICATIONS PIN CONFIGURATIONS GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS SPECIFICATIONS WITH +3 V SUPPLY SPECIFICATIONS WITH +5 V SUPPLY SPECIFICATIONS WITH ±5 V SUPPLY ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE Maximum Power Dissipation ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS CIRCUIT DESCRIPTION HEADROOM CONSIDERATIONS OVERLOAD BEHAVIOR AND RECOVERY Input Output SINGLE-SUPPLY VIDEO AMPLIFIER VIDEO RECONSTRUCTION FILTER OUTLINE DIMENSIONS ORDERING GUIDE AUTOMOTIVE PRODUCTS
