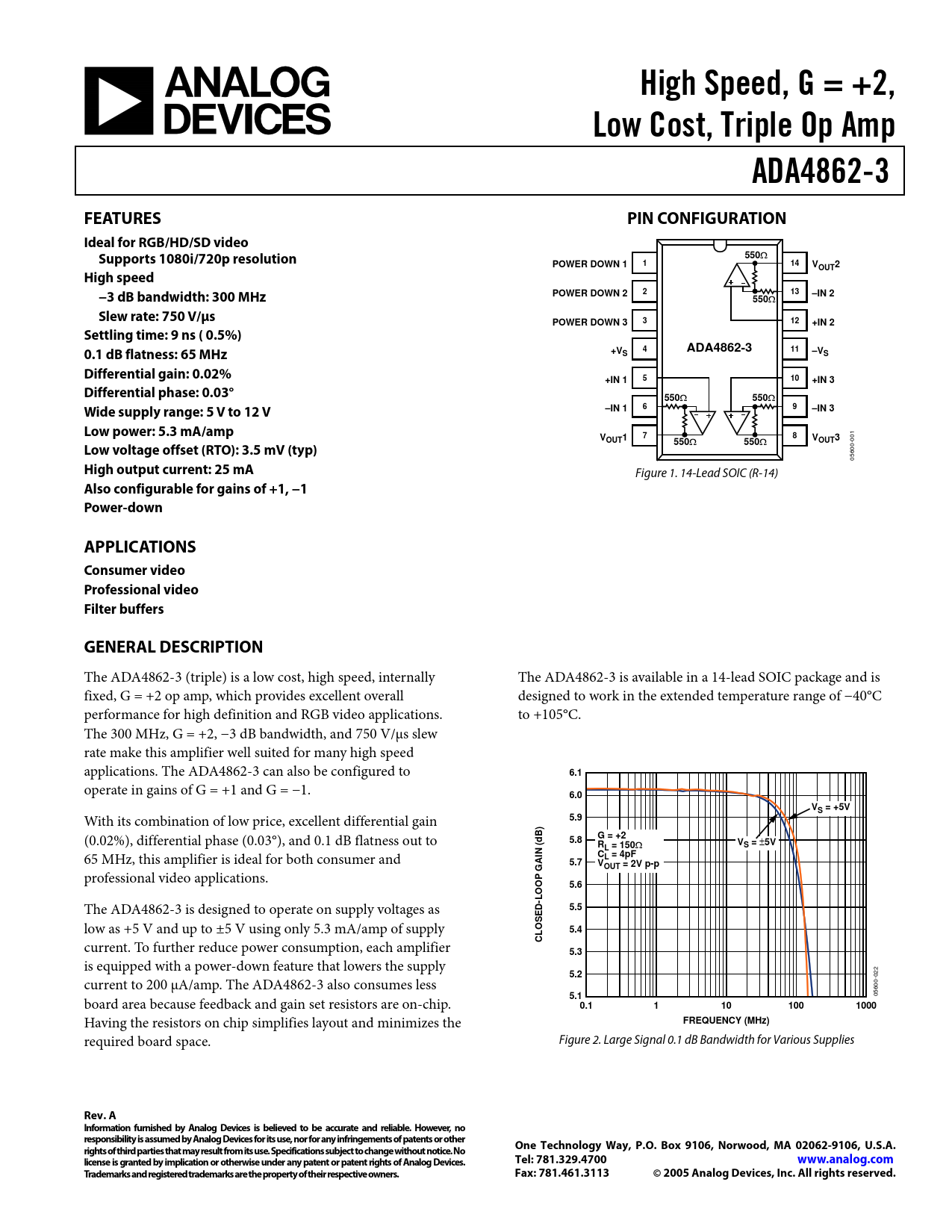

Datasheet ADA4862-3 (Analog Devices)

High Speed, G = +2, Low Cost, Triple Op Amp ADA4862-3 FEATURES PIN CONFIGURATION Ideal for RGB/HD/SD video Supports 1080i/720p resolution 550
Ω
POWER DOWN 1 1 14 VOUT2 High speed −3 dB bandwidth: 300 MHz POWER DOWN 2 2 13 –IN 2 550
Ω
Slew rate: 750 V/μs POWER DOWN 3 3 12 +IN 2 Settling time: 9 ns ( 0.5%) ADA4862-3 0.1 dB flatness: 65 MHz +V 4 11 S –VS Differential gain: 0.02% +IN 1 5 10 +IN 3 Differential phase: 0.03° 550
Ω
550
Ω
Wide supply range: 5 V to 12 V –IN 1 6 9 –IN 3 Low power: 5.3 mA/amp V 8 OUT1 7 VOUT3 550
Ω
550
Ω
Low voltage offset (RTO): 3.5 mV (typ)
05600-001
High output current: 25 mA
Figure 1. 14-Lead SOIC (R-14)
Also configurable for gains of +1, −1 Power-down APPLICATIONS Consumer video Professional video Filter buffers GENERAL DESCRIPTION
The ADA4862-3 (triple) is a low cost, high speed, internally The ADA4862-3 is available in a 14-lead SOIC package and is fixed, G = +2 op amp, which provides excellent overall designed to work in the extended temperature range of −40°C performance for high definition and RGB video applications. to +105°C. The 300 MHz, G = +2, −3 dB bandwidth, and 750 V/μs slew rate make this amplifier well suited for many high speed applications. The ADA4862-3 can also be configured to
6.1
operate in gains of G = +1 and G = −1.
6.0 VS = +5V
With its combination of low price, excellent differential gain
5.9 B)
(0.02%), differential phase (0.03°), and 0.1 dB flatness out to
d G = +2 5.8 R V L = 150
Ω
S =
±
5V
65 MHz, this amplifier is ideal for both consumer and
CL = 4pF 5.7 VOUT = 2V p-p
professional video applications.
5.6 OOP GAIN ( L
The ADA4862-3 is designed to operate on supply voltages as
5.5
low as +5 V and up to ±5 V using only 5.3 mA/amp of supply
5.4 CLOSED-
current. To further reduce power consumption, each amplifier
5.3
is equipped with a power-down feature that lowers the supply
5.2
current to 200 μA/amp. The ADA4862-3 also consumes less
5.1
05600-022 board area because feedback and gain set resistors are on-chip.
0.1 1 10 100 1000
Having the resistors on chip simplifies layout and minimizes the
FREQUENCY (MHz)
required board space. Figure 2. Large Signal 0.1 dB Bandwidth for Various Supplies
Rev. A Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. rights of third parties that may result from its use. Specifications subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 www.analog.com Trademarks and registered trademarks are the property of their respective owners. Fax: 781.461.3113 © 2005 Analog Devices, Inc. All rights reserved.
Document Outline FEATURES APPLICATIONS PIN CONFIGURATION GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE Maximum Power Dissipation ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS APPLICATIONS USING THE ADA4862-3 IN GAINS = +1, −1 Unity-Gain Operation (Option 1) Option 2 VIDEO LINE DRIVER SINGLE-SUPPLY OPERATION POWER DOWN LAYOUT CONSIDERATIONS POWER SUPPLY BYPASSING OUTLINE DIMENSIONS ORDERING GUIDE
