AD8677
V = ±15 V, T = +25°C, unless otherwise specified. S A

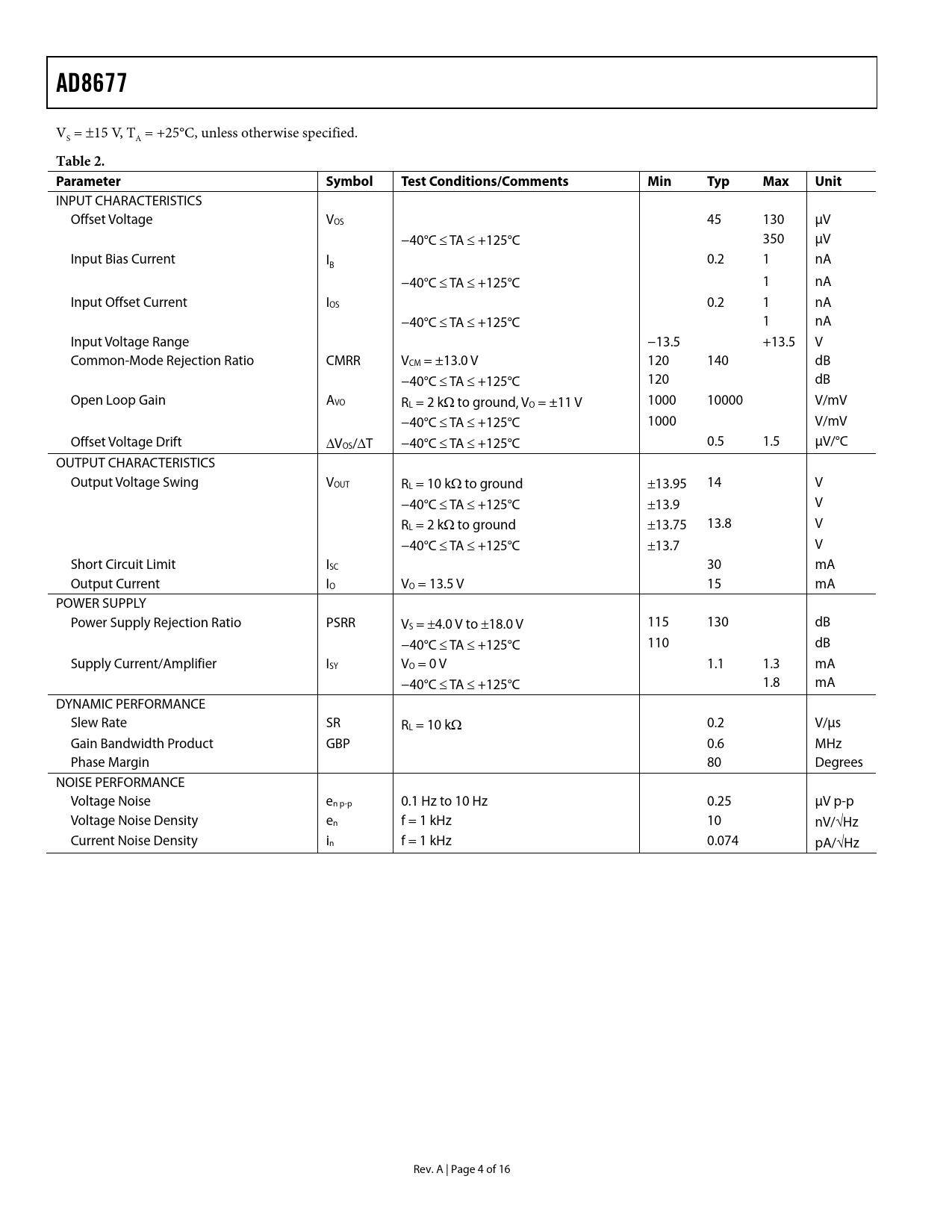

Table 2. Parameter Symbol Test Conditions/Comments Min Typ Max Unit
INPUT CHARACTERISTICS Offset Voltage VOS 45 130 μV −40°C ≤ TA ≤ +125°C 350 μV Input Bias Current I 0.2 1 nA B −40°C ≤ TA ≤ +125°C 1 nA Input Offset Current IOS 0.2 1 nA −40°C ≤ TA ≤ +125°C 1 nA Input Voltage Range −13.5 +13.5 V Common-Mode Rejection Ratio CMRR VCM = ±13.0 V 120 140 dB −40°C ≤ TA ≤ +125°C 120 dB Open Loop Gain AVO RL = 2 kΩ to ground, VO = ±11 V 1000 10000 V/mV −40°C ≤ TA ≤ +125°C 1000 V/mV Offset Voltage Drift ΔVOS/ΔT −40°C ≤ TA ≤ +125°C 0.5 1.5 μV/°C OUTPUT CHARACTERISTICS Output Voltage Swing VOUT RL = 10 kΩ to ground ±13.95 14 V −40°C ≤ TA ≤ +125°C ±13.9 V RL = 2 kΩ to ground ±13.75 13.8 V −40°C ≤ TA ≤ +125°C ±13.7 V Short Circuit Limit ISC 30 mA Output Current IO VO = 13.5 V 15 mA POWER SUPPLY Power Supply Rejection Ratio PSRR VS = ±4.0 V to ±18.0 V 115 130 dB −40°C ≤ TA ≤ +125°C 110 dB Supply Current/Amplifier ISY VO = 0 V 1.1 1.3 mA −40°C ≤ TA ≤ +125°C 1.8 mA DYNAMIC PERFORMANCE Slew Rate SR RL = 10 kΩ 0.2 V/μs Gain Bandwidth Product GBP 0.6 MHz Phase Margin 80 Degrees NOISE PERFORMANCE Voltage Noise en p-p 0.1 Hz to 10 Hz 0.25 μV p-p Voltage Noise Density en f = 1 kHz 10 nV/√Hz Current Noise Density in f = 1 kHz 0.074 pA/√Hz Rev. A | Page 4 of 16 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION PIN CONFIGURATIONS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS OUTLINE DIMENSIONS ORDERING GUIDE
