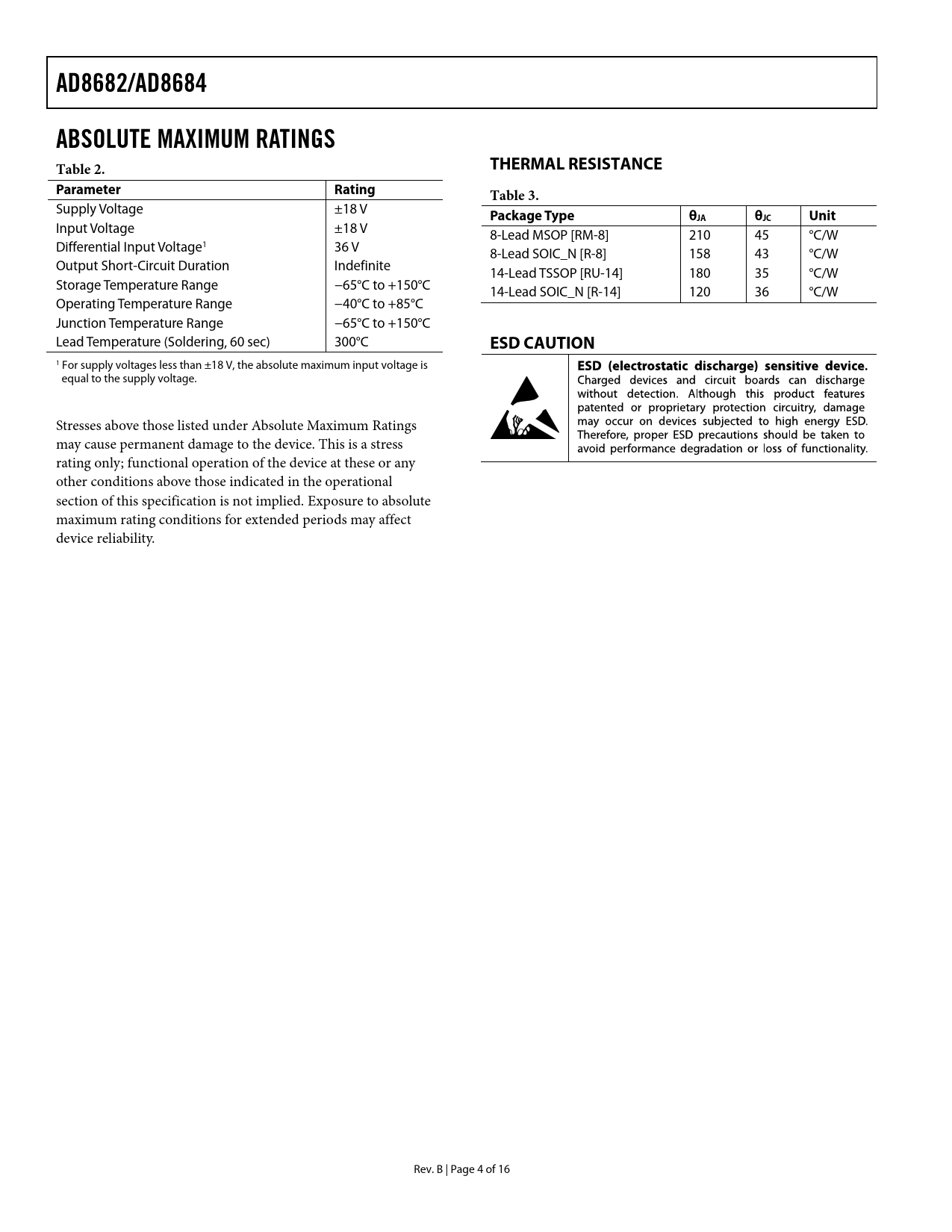

AD8682/AD8684 ABSOLUTE MAXIMUM RATINGS Table 2. THERMAL RESISTANCE Parameter Rating Table 3.
Supply Voltage ±18 V
Package Type θJA θJC Unit
Input Voltage ±18 V 8-Lead MSOP [RM-8] 210 45 °C/W Differential Input Voltage1 36 V 8-Lead SOIC_N [R-8] 158 43 °C/W Output Short-Circuit Duration Indefinite 14-Lead TSSOP [RU-14] 180 35 °C/W Storage Temperature Range −65°C to +150°C 14-Lead SOIC_N [R-14] 120 36 °C/W Operating Temperature Range −40°C to +85°C Junction Temperature Range −65°C to +150°C Lead Temperature (Soldering, 60 sec) 300°C
ESD CAUTION
1 For supply voltages less than ±18 V, the absolute maximum input voltage is equal to the supply voltage. Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Rev. B | Page 4 of 16 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS APPLICATIONS INFORMATION HIGH-SIDE SIGNAL CONDITIONING PHASE INVERSION ACTIVE FILTERS PROGRAMMABLE STATE VARIABLE FILTER OUTLINE DIMENSIONS ORDERING GUIDE
