Datasheet ADA4311-1 (Analog Devices) - 7
| Fabricante | Analog Devices |
| Descripción | Low Cost, Dual, High Current Output Line Driver with Shutdown |
| Páginas / Página | 17 / 7 — ADA4311-1. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. +VS 1. 10 OUT B. … |
| Formato / tamaño de archivo | PDF / 304 Kb |
| Idioma del documento | Inglés |

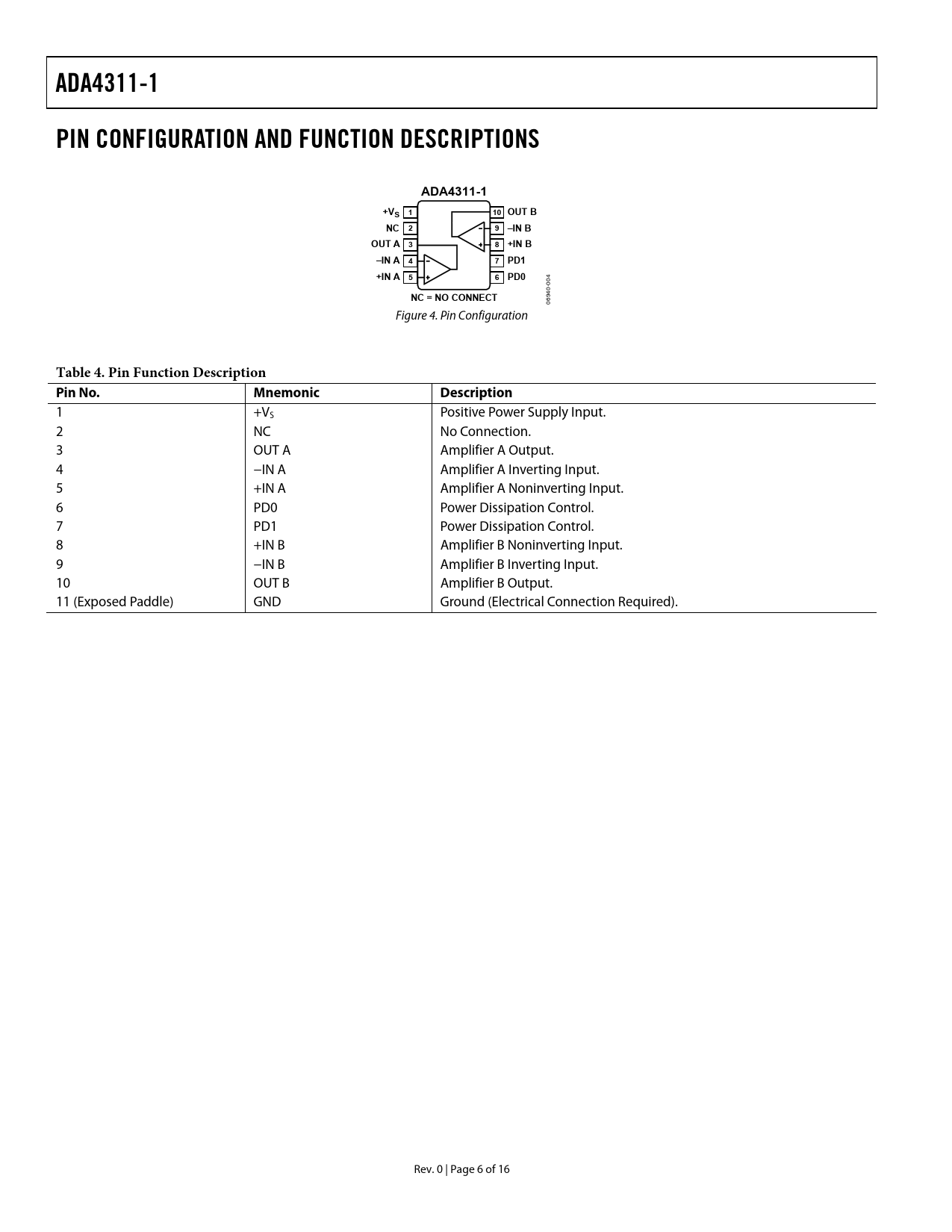

ADA4311-1. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. +VS 1. 10 OUT B. NC 2. 9 –IN B. OUT A 3. 8 +IN B. –IN A 4. 7 PD1. +IN A 5. 6 PD0
Versión de texto del documento
ADA4311-1 PIN CONFIGURATION AND FUNCTION DESCRIPTIONS ADA4311-1 +VS 1 10 OUT B NC 2 9 –IN B OUT A 3 8 +IN B –IN A 4 7 PD1 +IN A 5 6 PD0
4 00 0-
NC = NO CONNECT
94 06 Figure 4. Pin Configuration
Table 4. Pin Function Description Pin No. Mnemonic Description
1 +VS Positive Power Supply Input. 2 NC No Connection. 3 OUT A Amplifier A Output. 4 −IN A Amplifier A Inverting Input. 5 +IN A Amplifier A Noninverting Input. 6 PD0 Power Dissipation Control. 7 PD1 Power Dissipation Control. 8 +IN B Amplifier B Noninverting Input. 9 −IN B Amplifier B Inverting Input. 10 OUT B Amplifier B Output. 11 (Exposed Paddle) GND Ground (Electrical Connection Required). Rev. 0 | Page 6 of 16 Document Outline FEATURES APPLICATIONS PIN CONFIGURATION TYPICAL APPLICATION GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE Maximum Power Dissipation ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION APPLICATION INFORMATION FEEDBACK RESISTOR SELECTION POWER CONTROL MODES OF OPERATION EXPOSED THERMAL PAD CONNECTIONS POWERLINE APPLICATION BOARD LAYOUT POWER SUPPLY BYPASSING OUTLINE DIMENSIONS ORDERING GUIDE
