Datasheet ADA4500-2 (Analog Devices) - 8
| Fabricante | Analog Devices |
| Descripción | 10 MHz, 14.5 nV/√Hz, Rail-to-Rail I/O, Zero Input Crossover Distortion Amplifier |
| Páginas / Página | 25 / 8 — Data Sheet. ADA4500-2. ABSOLUTE MAXIMUM RATINGS. THERMAL RESISTANCE. … |
| Revisión | B |
| Formato / tamaño de archivo | PDF / 1.3 Mb |
| Idioma del documento | Inglés |

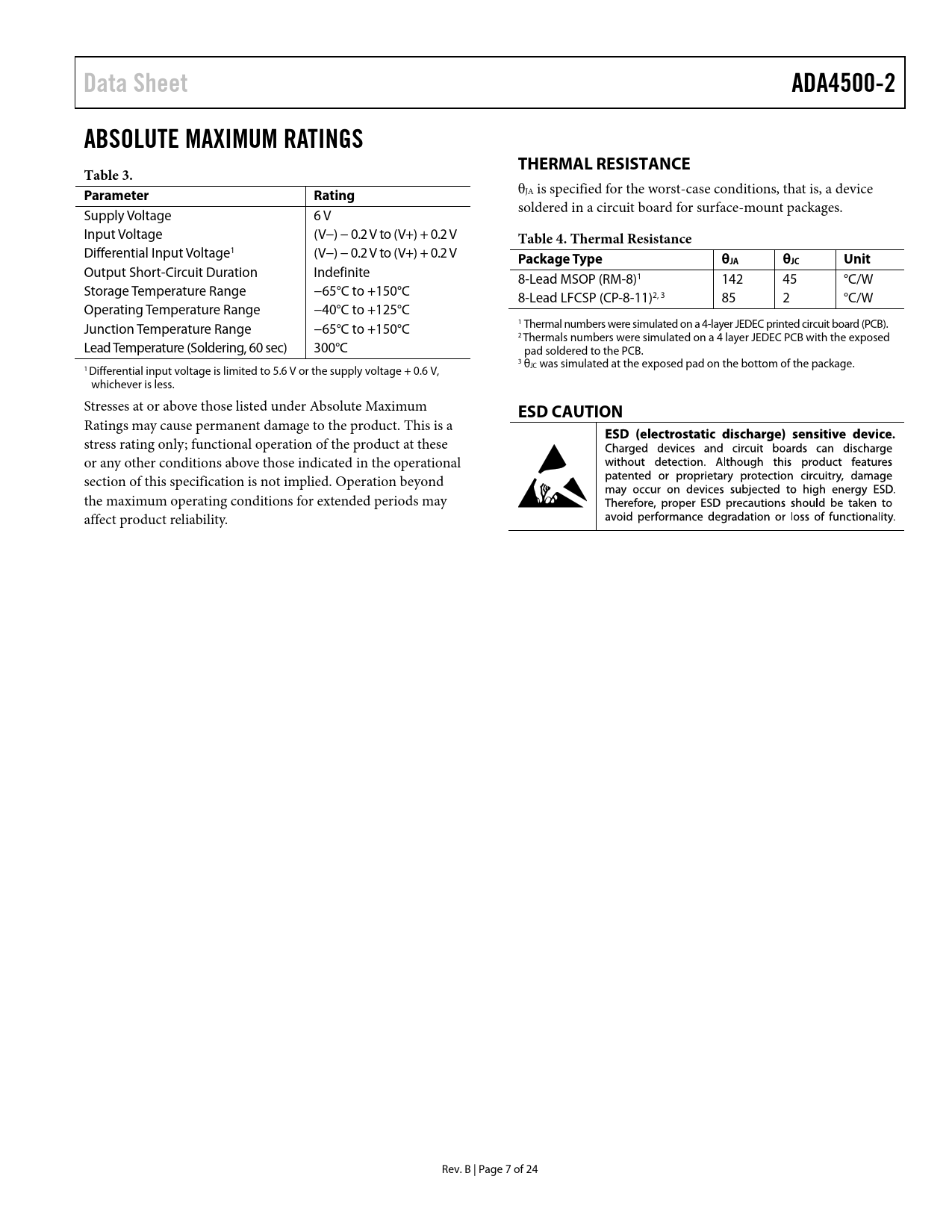

Data Sheet. ADA4500-2. ABSOLUTE MAXIMUM RATINGS. THERMAL RESISTANCE. Table 3. Parameter Rating. Table 4. Thermal Resistance
Versión de texto del documento
Data Sheet ADA4500-2 ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE Table 3.
θ
Parameter Rating
JA is specified for the worst-case conditions, that is, a device soldered in a circuit board for surface-mount packages. Supply Voltage 6 V Input Voltage (V−) − 0.2 V to (V+) + 0.2 V
Table 4. Thermal Resistance
Differential Input Voltage1 (V−) − 0.2 V to (V+) + 0.2 V
Package Type θJA θJC Unit
Output Short-Circuit Duration Indefinite 8-Lead MSOP (RM-8)1 142 45 °C/W Storage Temperature Range −65°C to +150°C 8-Lead LFCSP (CP-8-11)2, 3 85 2 °C/W Operating Temperature Range −40°C to +125°C 1 Junction Temperature Range −65°C to +150°C Thermal numbers were simulated on a 4-layer JEDEC printed circuit board (PCB). 2 Thermals numbers were simulated on a 4 layer JEDEC PCB with the exposed Lead Temperature (Soldering, 60 sec) 300°C pad soldered to the PCB. 3 θ 1 JC was simulated at the exposed pad on the bottom of the package. Differential input voltage is limited to 5.6 V or the supply voltage + 0.6 V, whichever is less. Stresses at or above those listed under Absolute Maximum
ESD CAUTION
Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational section of this specification is not implied. Operation beyond the maximum operating conditions for extended periods may affect product reliability. Rev. B | Page 7 of 24 Document Outline FEATURES APPLICATIONS PIN CONFIGURATION GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS VSY = 2.7 V ELECTRICAL CHARACTERISTICS VSY = 5.0 V ELECTRICAL CHARACTERISTICS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION RAIL-TO-RAIL OUTPUT RAIL-TO-RAIL INPUT (RRI) ZERO CROSS-OVER DISTORTION OVERLOAD RECOVERY POWER-ON CURRENT PROFILE APPLICATIONS INFORMATION RESISTANCE AND CAPACITANCE SENSOR CIRCUIT ADAPTIVE SINGLE-ENDED-TO-DIFFERENTIAL SIGNAL CONVERTER The Challenge The Solution OUTLINE DIMENSIONS ORDERING GUIDE
