Datasheet ADA4500-2 (Analog Devices) - 5

FabricanteAnalog Devices
Descripción10 MHz, 14.5 nV/√Hz, Rail-to-Rail I/O, Zero Input Crossover Distortion Amplifier
Páginas / Página25 / 5 — ADA4500-2. Data Sheet. Parameter Symbol. Test. Conditions/Conditions. …
RevisiónB
Formato / tamaño de archivoPDF / 1.3 Mb
Idioma del documentoInglés

ADA4500-2. Data Sheet. Parameter Symbol. Test. Conditions/Conditions. Min. Typ. Max. Unit

ADA4500-2 Data Sheet Parameter Symbol Test Conditions/Conditions Min Typ Max Unit

Versión de texto del documento

ADA4500-2 Data Sheet Parameter Symbol Test Conditions/Conditions Min Typ Max Unit

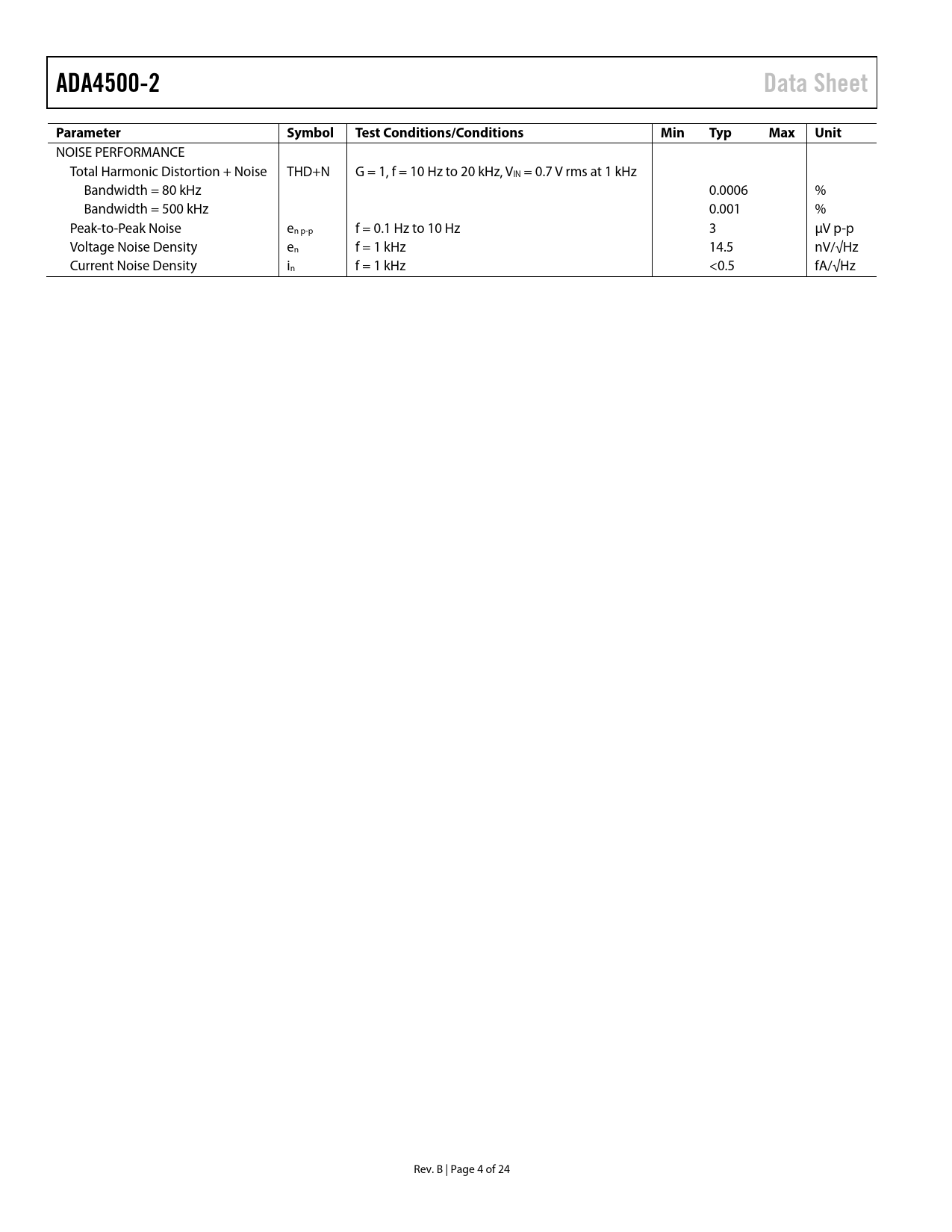

NOISE PERFORMANCE Total Harmonic Distortion + Noise THD+N G = 1, f = 10 Hz to 20 kHz, VIN = 0.7 V rms at 1 kHz Bandwidth = 80 kHz 0.0006 % Bandwidth = 500 kHz 0.001 % Peak-to-Peak Noise en p-p f = 0.1 Hz to 10 Hz 3 μV p-p Voltage Noise Density en f = 1 kHz 14.5 nV/√Hz Current Noise Density in f = 1 kHz <0.5 fA/√Hz Rev. B | Page 4 of 24 Document Outline FEATURES APPLICATIONS PIN CONFIGURATION GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS VSY = 2.7 V ELECTRICAL CHARACTERISTICS VSY = 5.0 V ELECTRICAL CHARACTERISTICS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION RAIL-TO-RAIL OUTPUT RAIL-TO-RAIL INPUT (RRI) ZERO CROSS-OVER DISTORTION OVERLOAD RECOVERY POWER-ON CURRENT PROFILE APPLICATIONS INFORMATION RESISTANCE AND CAPACITANCE SENSOR CIRCUIT ADAPTIVE SINGLE-ENDED-TO-DIFFERENTIAL SIGNAL CONVERTER The Challenge The Solution OUTLINE DIMENSIONS ORDERING GUIDE
