Datasheet MIC861 (Microchip) - 5
| Fabricante | Microchip |
| Descripción | The MIC861 is a rail-to-rail output, input common-mode to ground, operational amplifier in Teeny™ SC70 packaging |
| Páginas / Página | 11 / 5 |
| Formato / tamaño de archivo | PDF / 1.1 Mb |
| Idioma del documento | Inglés |
Línea de modelo para esta hoja de datos
Versión de texto del documento

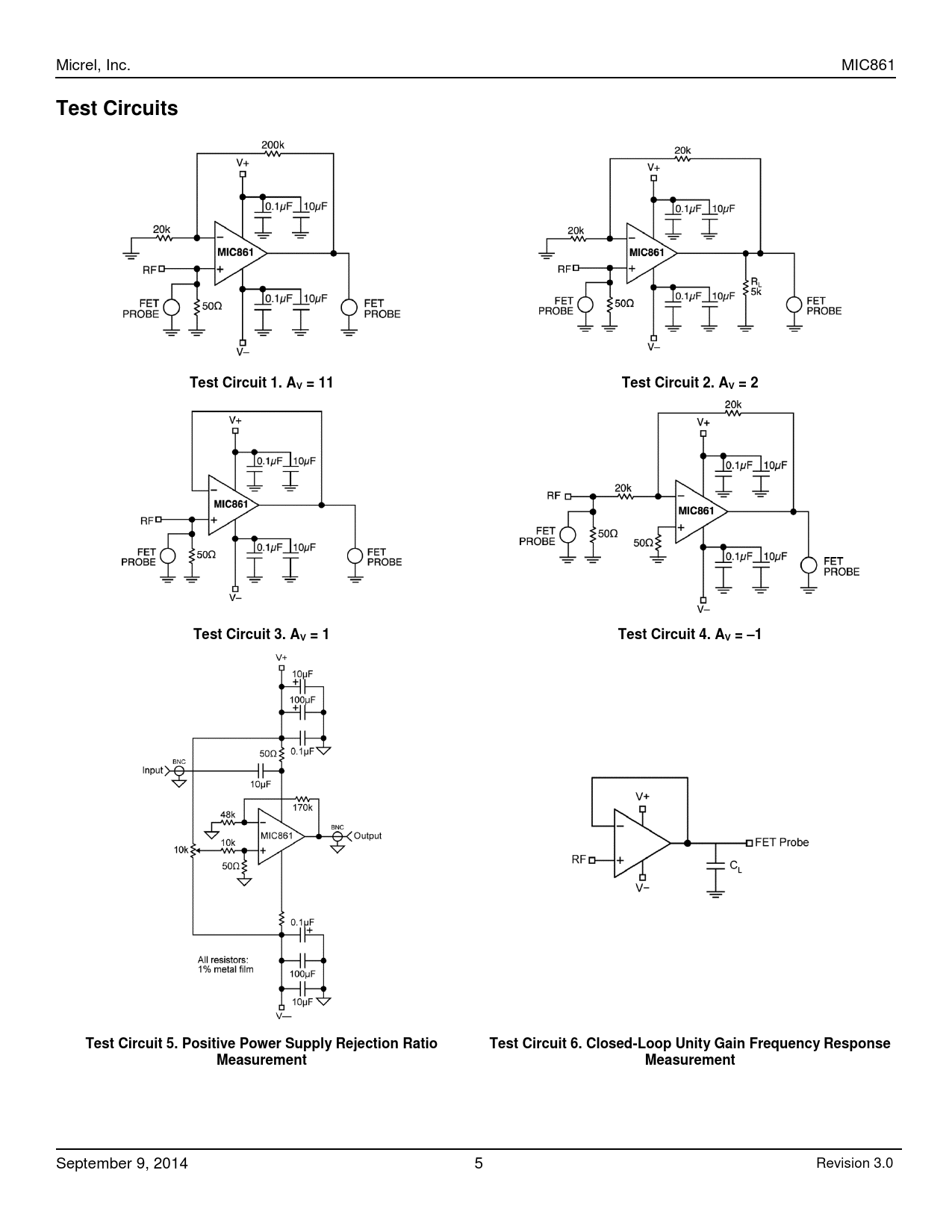

Micrel, Inc. MIC861 Test Circuits Test Circuit 1. AV = 11 Test Circuit 2. AV = 2 Test Circuit 3. AV = 1 Test Circuit 4. AV = –1 Test Circuit 5. Positive Power Supply Rejection Ratio
Measurement Test Circuit 6. Closed-Loop Unity Gain Frequency Response
Measurement September 9, 2014 5 Revision 3.0
Measurement Test Circuit 6. Closed-Loop Unity Gain Frequency Response
Measurement September 9, 2014 5 Revision 3.0
