Datasheet LTC1998 (Analog Devices) - 2
| Fabricante | Analog Devices |
| Descripción | 2.5µA, 1% Accurate SOT-23 Comparator and Voltage Reference for Battery Monitoring |
| Páginas / Página | 12 / 2 — ABSOLUTE MAXIMUM RATINGS. PIN CONFIGURATION. (Note 1). ORDER INFORMATION. … |
| Formato / tamaño de archivo | PDF / 139 Kb |
| Idioma del documento | Inglés |
ABSOLUTE MAXIMUM RATINGS. PIN CONFIGURATION. (Note 1). ORDER INFORMATION. LEAD FREE FINISH. TAPE AND REEL. PART MARKING
Línea de modelo para esta hoja de datos
Versión de texto del documento

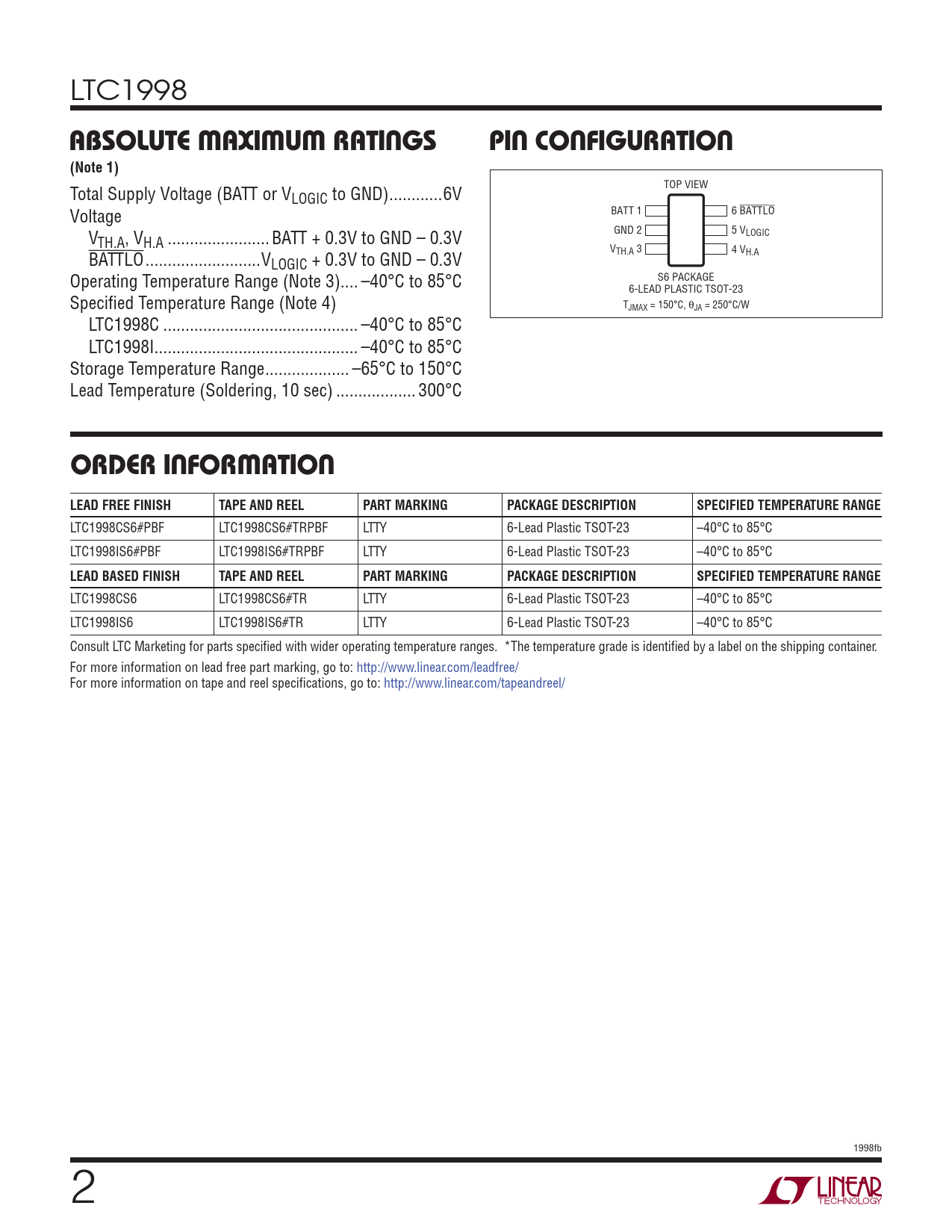

LTC1998
ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Note 1)
TOP VIEW Total Supply Voltage (BATT or VLOGIC to GND) ..6V Voltage BATT 1 6 BATTLO V GND 2 5 VLOGIC TH.A, VH.A ... BATT + 0.3V to GND – 0.3V VTH.A 3 4 V BATTLO ..V H.A LOGIC + 0.3V to GND – 0.3V Operating Temperature Range (Note 3).. –40°C to 85°C S6 PACKAGE 6-LEAD PLASTIC TSOT-23 Specifi ed Temperature Range (Note 4) TJMAX = 150°C, θJA = 250°C/W LTC1998C .. –40°C to 85°C LTC1998I.. –40°C to 85°C Storage Temperature Range ... –65°C to 150°C Lead Temperature (Soldering, 10 sec) .. 300°C
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LTC1998CS6#PBF LTC1998CS6#TRPBF LTTY 6-Lead Plastic TSOT-23 –40°C to 85°C LTC1998IS6#PBF LTC1998IS6#TRPBF LTTY 6-Lead Plastic TSOT-23 –40°C to 85°C
LEAD BASED FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LTC1998CS6 LTC1998CS6#TR LTTY 6-Lead Plastic TSOT-23 –40°C to 85°C LTC1998IS6 LTC1998IS6#TR LTTY 6-Lead Plastic TSOT-23 –40°C to 85°C Consult LTC Marketing for parts specifi ed with wider operating temperature ranges. *The temperature grade is identifi ed by a label on the shipping container. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifi cations, go to: http://www.linear.com/tapeandreel/ 1998fb 2
ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Note 1)
TOP VIEW Total Supply Voltage (BATT or VLOGIC to GND) ..6V Voltage BATT 1 6 BATTLO V GND 2 5 VLOGIC TH.A, VH.A ... BATT + 0.3V to GND – 0.3V VTH.A 3 4 V BATTLO ..V H.A LOGIC + 0.3V to GND – 0.3V Operating Temperature Range (Note 3).. –40°C to 85°C S6 PACKAGE 6-LEAD PLASTIC TSOT-23 Specifi ed Temperature Range (Note 4) TJMAX = 150°C, θJA = 250°C/W LTC1998C .. –40°C to 85°C LTC1998I.. –40°C to 85°C Storage Temperature Range ... –65°C to 150°C Lead Temperature (Soldering, 10 sec) .. 300°C
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LTC1998CS6#PBF LTC1998CS6#TRPBF LTTY 6-Lead Plastic TSOT-23 –40°C to 85°C LTC1998IS6#PBF LTC1998IS6#TRPBF LTTY 6-Lead Plastic TSOT-23 –40°C to 85°C
LEAD BASED FINISH TAPE AND REEL PART MARKING PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LTC1998CS6 LTC1998CS6#TR LTTY 6-Lead Plastic TSOT-23 –40°C to 85°C LTC1998IS6 LTC1998IS6#TR LTTY 6-Lead Plastic TSOT-23 –40°C to 85°C Consult LTC Marketing for parts specifi ed with wider operating temperature ranges. *The temperature grade is identifi ed by a label on the shipping container. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifi cations, go to: http://www.linear.com/tapeandreel/ 1998fb 2
