ELECTRICAL CHARACTERISTICS. TA = 25°C, (LT6703HV-2/LT6703HV-3) unless otherwise specifi ed. SYMBOL. PARAMETER. CONDITIONS. MIN. TYP
Línea de modelo para esta hoja de datos
- LT6703CDC-2#TRMPBF LT6703CDC-2#TRPBF LT6703CDC-3#TRMPBF LT6703CDC-3#TRPBF LT6703HDC-2#TRMPBF LT6703HDC-2#TRPBF LT6703HDC-3#TRMPBF LT6703HDC-3#TRPBF LT6703HVCS5-2#TRMPBF LT6703HVCS5-2#TRPBF LT6703HVCS5-3#TRMPBF LT6703HVCS5-3#TRPBF LT6703HVHS5-2#TRMPBF LT6703HVHS5-2#TRPBF LT6703HVHS5-3#TRMPBF LT6703HVHS5-3#TRPBF LT6703HVIS5-2#TRMPBF LT6703HVIS5-2#TRPBF LT6703HVIS5-3#TRMPBF LT6703HVIS5-3#TRPBF LT6703IDC-2#TRMPBF LT6703IDC-2#TRPBF LT6703IDC-3#TRMPBF LT6703IDC-3#TRPBF
- LT6703CDC-2#PBF LT6703CDC-2#TRMPBF LT6703CDC-2#TRPBF LT6703HDC-2#PBF LT6703HDC-2#TRMPBF LT6703HDC-2#TRPBF LT6703IDC-2#PBF LT6703IDC-2#TRMPBF LT6703IDC-2#TRPBF
- LT6703CDC-3#PBF LT6703CDC-3#TRMPBF LT6703CDC-3#TRPBF LT6703HDC-3#PBF LT6703HDC-3#TRMPBF LT6703HDC-3#TRPBF LT6703IDC-3#PBF LT6703IDC-3#TRMPBF LT6703IDC-3#TRPBF
Versión de texto del documento

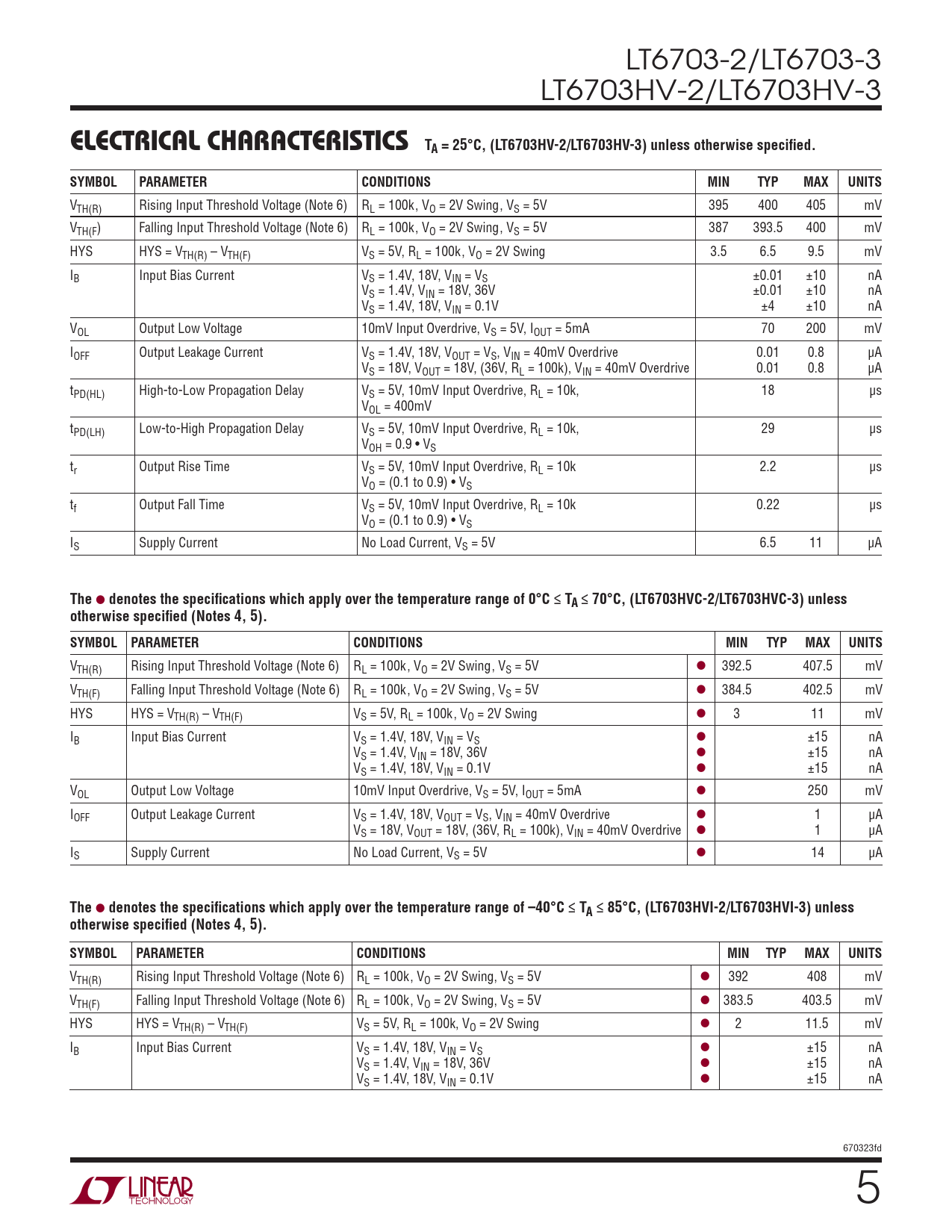

LT6703-2/LT6703-3 LT6703HV-2/LT6703HV-3
ELECTRICAL CHARACTERISTICS TA = 25°C, (LT6703HV-2/LT6703HV-3) unless otherwise specifi ed. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VTH(R) Rising Input Threshold Voltage (Note 6) RL = 100k, VO = 2V Swing, VS = 5V 395 400 405 mV VTH(F) Falling Input Threshold Voltage (Note 6) RL = 100k, VO = 2V Swing, VS = 5V 387 393.5 400 mV HYS HYS = VTH(R) – VTH(F) VS = 5V, RL = 100k, VO = 2V Swing 3.5 6.5 9.5 mV IB Input Bias Current VS = 1.4V, 18V, VIN = VS ±0.01 ±10 nA VS = 1.4V, VIN = 18V, 36V ±0.01 ±10 nA VS = 1.4V, 18V, VIN = 0.1V ±4 ±10 nA VOL Output Low Voltage 10mV Input Overdrive, VS = 5V, IOUT = 5mA 70 200 mV IOFF Output Leakage Current VS = 1.4V, 18V, VOUT = VS, VIN = 40mV Overdrive 0.01 0.8 μA VS = 18V, VOUT = 18V, (36V, RL = 100k), VIN = 40mV Overdrive 0.01 0.8 μA tPD(HL) High-to-Low Propagation Delay VS = 5V, 10mV Input Overdrive, RL = 10k, 18 μs VOL = 400mV tPD(LH) Low-to-High Propagation Delay VS = 5V, 10mV Input Overdrive, RL = 10k, 29 μs VOH = 0.9 • VS tr Output Rise Time VS = 5V, 10mV Input Overdrive, RL = 10k 2.2 μs VO = (0.1 to 0.9) • VS tf Output Fall Time VS = 5V, 10mV Input Overdrive, RL = 10k 0.22 μs VO = (0.1 to 0.9) • VS IS Supply Current No Load Current, VS = 5V 6.5 11 μA
The
l
denotes the specifi cations which apply over the temperature range of 0°C ≤ TA ≤ 70°C, (LT6703HVC-2/LT6703HVC-3) unless otherwise specifi ed (Notes 4, 5). SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VTH(R) Rising Input Threshold Voltage (Note 6) RL = 100k, VO = 2V Swing, VS = 5V l 392.5 407.5 mV VTH(F) Falling Input Threshold Voltage (Note 6) RL = 100k, VO = 2V Swing, VS = 5V l 384.5 402.5 mV HYS HYS = VTH(R) – VTH(F) VS = 5V, RL = 100k, VO = 2V Swing l 3 11 mV IB Input Bias Current VS = 1.4V, 18V, VIN = VS l ±15 nA VS = 1.4V, VIN = 18V, 36V l ±15 nA VS = 1.4V, 18V, VIN = 0.1V l ±15 nA VOL Output Low Voltage 10mV Input Overdrive, VS = 5V, IOUT = 5mA l 250 mV IOFF Output Leakage Current VS = 1.4V, 18V, VOUT = VS, VIN = 40mV Overdrive l 1 μA VS = 18V, VOUT = 18V, (36V, RL = 100k), VIN = 40mV Overdrive l 1 μA IS Supply Current No Load Current, VS = 5V l 14 μA
The
l
denotes the specifi cations which apply over the temperature range of –40°C ≤ TA ≤ 85°C, (LT6703HVI-2/LT6703HVI-3) unless otherwise specifi ed (Notes 4, 5). SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VTH(R) Rising Input Threshold Voltage (Note 6) RL = 100k, VO = 2V Swing, VS = 5V l 392 408 mV VTH(F) Falling Input Threshold Voltage (Note 6) RL = 100k, VO = 2V Swing, VS = 5V l 383.5 403.5 mV HYS HYS = VTH(R) – VTH(F) VS = 5V, RL = 100k, VO = 2V Swing l 2 11.5 mV IB Input Bias Current VS = 1.4V, 18V, VIN = VS l ±15 nA VS = 1.4V, VIN = 18V, 36V l ±15 nA VS = 1.4V, 18V, VIN = 0.1V l ±15 nA 670323fd 5
ELECTRICAL CHARACTERISTICS TA = 25°C, (LT6703HV-2/LT6703HV-3) unless otherwise specifi ed. SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VTH(R) Rising Input Threshold Voltage (Note 6) RL = 100k, VO = 2V Swing, VS = 5V 395 400 405 mV VTH(F) Falling Input Threshold Voltage (Note 6) RL = 100k, VO = 2V Swing, VS = 5V 387 393.5 400 mV HYS HYS = VTH(R) – VTH(F) VS = 5V, RL = 100k, VO = 2V Swing 3.5 6.5 9.5 mV IB Input Bias Current VS = 1.4V, 18V, VIN = VS ±0.01 ±10 nA VS = 1.4V, VIN = 18V, 36V ±0.01 ±10 nA VS = 1.4V, 18V, VIN = 0.1V ±4 ±10 nA VOL Output Low Voltage 10mV Input Overdrive, VS = 5V, IOUT = 5mA 70 200 mV IOFF Output Leakage Current VS = 1.4V, 18V, VOUT = VS, VIN = 40mV Overdrive 0.01 0.8 μA VS = 18V, VOUT = 18V, (36V, RL = 100k), VIN = 40mV Overdrive 0.01 0.8 μA tPD(HL) High-to-Low Propagation Delay VS = 5V, 10mV Input Overdrive, RL = 10k, 18 μs VOL = 400mV tPD(LH) Low-to-High Propagation Delay VS = 5V, 10mV Input Overdrive, RL = 10k, 29 μs VOH = 0.9 • VS tr Output Rise Time VS = 5V, 10mV Input Overdrive, RL = 10k 2.2 μs VO = (0.1 to 0.9) • VS tf Output Fall Time VS = 5V, 10mV Input Overdrive, RL = 10k 0.22 μs VO = (0.1 to 0.9) • VS IS Supply Current No Load Current, VS = 5V 6.5 11 μA
The
l
denotes the specifi cations which apply over the temperature range of 0°C ≤ TA ≤ 70°C, (LT6703HVC-2/LT6703HVC-3) unless otherwise specifi ed (Notes 4, 5). SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VTH(R) Rising Input Threshold Voltage (Note 6) RL = 100k, VO = 2V Swing, VS = 5V l 392.5 407.5 mV VTH(F) Falling Input Threshold Voltage (Note 6) RL = 100k, VO = 2V Swing, VS = 5V l 384.5 402.5 mV HYS HYS = VTH(R) – VTH(F) VS = 5V, RL = 100k, VO = 2V Swing l 3 11 mV IB Input Bias Current VS = 1.4V, 18V, VIN = VS l ±15 nA VS = 1.4V, VIN = 18V, 36V l ±15 nA VS = 1.4V, 18V, VIN = 0.1V l ±15 nA VOL Output Low Voltage 10mV Input Overdrive, VS = 5V, IOUT = 5mA l 250 mV IOFF Output Leakage Current VS = 1.4V, 18V, VOUT = VS, VIN = 40mV Overdrive l 1 μA VS = 18V, VOUT = 18V, (36V, RL = 100k), VIN = 40mV Overdrive l 1 μA IS Supply Current No Load Current, VS = 5V l 14 μA
The
l
denotes the specifi cations which apply over the temperature range of –40°C ≤ TA ≤ 85°C, (LT6703HVI-2/LT6703HVI-3) unless otherwise specifi ed (Notes 4, 5). SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VTH(R) Rising Input Threshold Voltage (Note 6) RL = 100k, VO = 2V Swing, VS = 5V l 392 408 mV VTH(F) Falling Input Threshold Voltage (Note 6) RL = 100k, VO = 2V Swing, VS = 5V l 383.5 403.5 mV HYS HYS = VTH(R) – VTH(F) VS = 5V, RL = 100k, VO = 2V Swing l 2 11.5 mV IB Input Bias Current VS = 1.4V, 18V, VIN = VS l ±15 nA VS = 1.4V, VIN = 18V, 36V l ±15 nA VS = 1.4V, 18V, VIN = 0.1V l ±15 nA 670323fd 5
