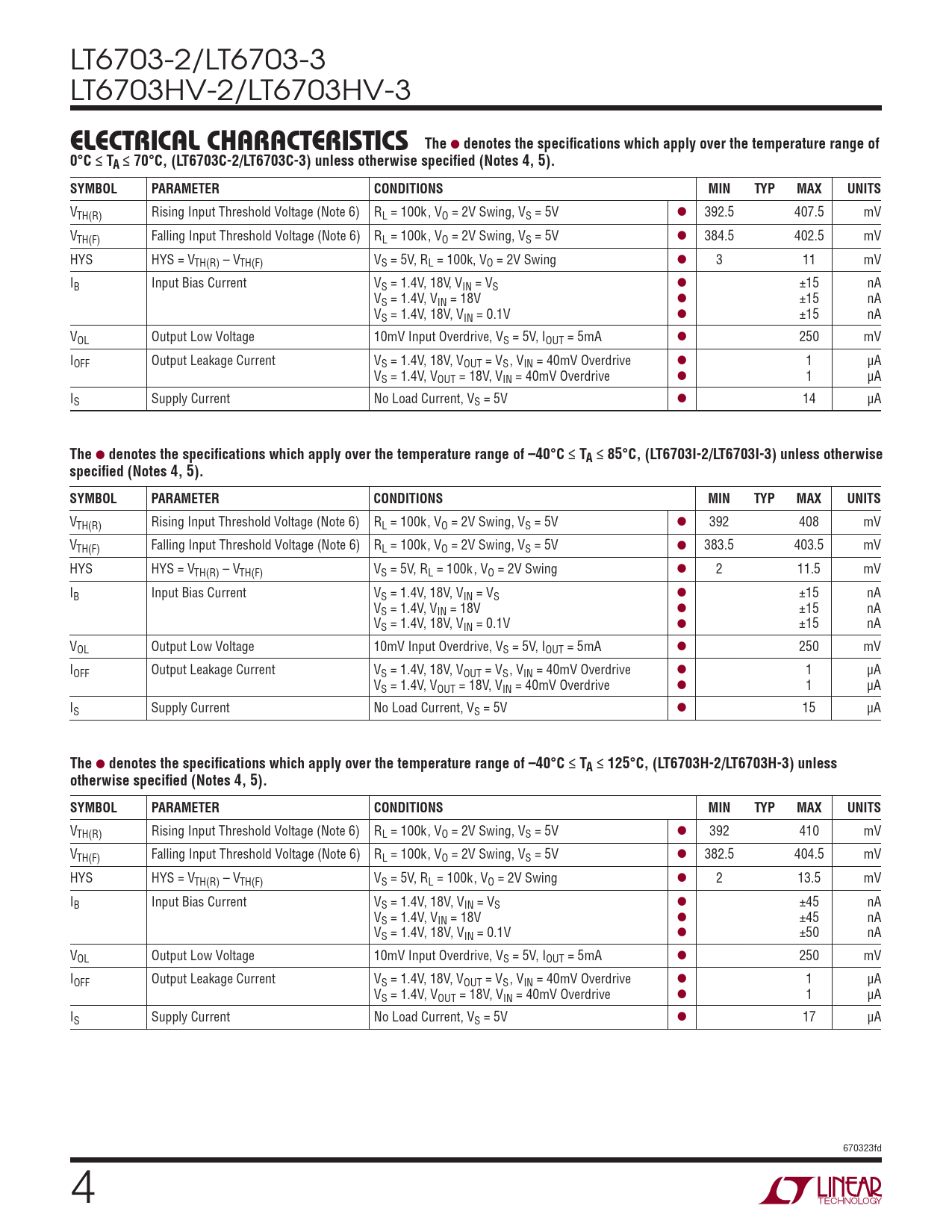

LT6703-2/LT6703-3 LT6703HV-2/LT6703HV-3
ELECTRICAL CHARACTERISTICS The
l
denotes the specifi cations which apply over the temperature range of 0°C ≤ TA ≤ 70°C, (LT6703C-2/LT6703C-3) unless otherwise specifi ed (Notes 4, 5). SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VTH(R) Rising Input Threshold Voltage (Note 6) RL = 100k, VO = 2V Swing, VS = 5V l 392.5 407.5 mV VTH(F) Falling Input Threshold Voltage (Note 6) RL = 100k, VO = 2V Swing, VS = 5V l 384.5 402.5 mV HYS HYS = VTH(R) – VTH(F) VS = 5V, RL = 100k, VO = 2V Swing l 3 11 mV IB Input Bias Current VS = 1.4V, 18V, VIN = VS l ±15 nA VS = 1.4V, VIN = 18V l ±15 nA VS = 1.4V, 18V, VIN = 0.1V l ±15 nA VOL Output Low Voltage 10mV Input Overdrive, VS = 5V, IOUT = 5mA l 250 mV IOFF Output Leakage Current VS = 1.4V, 18V, VOUT = VS, VIN = 40mV Overdrive l 1 μA VS = 1.4V, VOUT = 18V, VIN = 40mV Overdrive l 1 μA IS Supply Current No Load Current, VS = 5V l 14 μA
The
l
denotes the specifi cations which apply over the temperature range of –40°C ≤ TA ≤ 85°C, (LT6703I-2/LT6703I-3) unless otherwise specifi ed (Notes 4, 5). SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VTH(R) Rising Input Threshold Voltage (Note 6) RL = 100k, VO = 2V Swing, VS = 5V l 392 408 mV VTH(F) Falling Input Threshold Voltage (Note 6) RL = 100k, VO = 2V Swing, VS = 5V l 383.5 403.5 mV HYS HYS = VTH(R) – VTH(F) VS = 5V, RL = 100k, VO = 2V Swing l 2 11.5 mV IB Input Bias Current VS = 1.4V, 18V, VIN = VS l ±15 nA VS = 1.4V, VIN = 18V l ±15 nA VS = 1.4V, 18V, VIN = 0.1V l ±15 nA VOL Output Low Voltage 10mV Input Overdrive, VS = 5V, IOUT = 5mA l 250 mV IOFF Output Leakage Current VS = 1.4V, 18V, VOUT = VS, VIN = 40mV Overdrive l 1 μA VS = 1.4V, VOUT = 18V, VIN = 40mV Overdrive l 1 μA IS Supply Current No Load Current, VS = 5V l 15 μA
The
l
denotes the specifi cations which apply over the temperature range of –40°C ≤ TA ≤ 125°C, (LT6703H-2/LT6703H-3) unless otherwise specifi ed (Notes 4, 5). SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VTH(R) Rising Input Threshold Voltage (Note 6) RL = 100k, VO = 2V Swing, VS = 5V l 392 410 mV VTH(F) Falling Input Threshold Voltage (Note 6) RL = 100k, VO = 2V Swing, VS = 5V l 382.5 404.5 mV HYS HYS = VTH(R) – VTH(F) VS = 5V, RL = 100k, VO = 2V Swing l 2 13.5 mV IB Input Bias Current VS = 1.4V, 18V, VIN = VS l ±45 nA VS = 1.4V, VIN = 18V l ±45 nA VS = 1.4V, 18V, VIN = 0.1V l ±50 nA VOL Output Low Voltage 10mV Input Overdrive, VS = 5V, IOUT = 5mA l 250 mV IOFF Output Leakage Current VS = 1.4V, 18V, VOUT = VS, VIN = 40mV Overdrive l 1 μA VS = 1.4V, VOUT = 18V, VIN = 40mV Overdrive l 1 μA IS Supply Current No Load Current, VS = 5V l 17 μA 670323fd 4
ELECTRICAL CHARACTERISTICS The
l
denotes the specifi cations which apply over the temperature range of 0°C ≤ TA ≤ 70°C, (LT6703C-2/LT6703C-3) unless otherwise specifi ed (Notes 4, 5). SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VTH(R) Rising Input Threshold Voltage (Note 6) RL = 100k, VO = 2V Swing, VS = 5V l 392.5 407.5 mV VTH(F) Falling Input Threshold Voltage (Note 6) RL = 100k, VO = 2V Swing, VS = 5V l 384.5 402.5 mV HYS HYS = VTH(R) – VTH(F) VS = 5V, RL = 100k, VO = 2V Swing l 3 11 mV IB Input Bias Current VS = 1.4V, 18V, VIN = VS l ±15 nA VS = 1.4V, VIN = 18V l ±15 nA VS = 1.4V, 18V, VIN = 0.1V l ±15 nA VOL Output Low Voltage 10mV Input Overdrive, VS = 5V, IOUT = 5mA l 250 mV IOFF Output Leakage Current VS = 1.4V, 18V, VOUT = VS, VIN = 40mV Overdrive l 1 μA VS = 1.4V, VOUT = 18V, VIN = 40mV Overdrive l 1 μA IS Supply Current No Load Current, VS = 5V l 14 μA
The
l
denotes the specifi cations which apply over the temperature range of –40°C ≤ TA ≤ 85°C, (LT6703I-2/LT6703I-3) unless otherwise specifi ed (Notes 4, 5). SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VTH(R) Rising Input Threshold Voltage (Note 6) RL = 100k, VO = 2V Swing, VS = 5V l 392 408 mV VTH(F) Falling Input Threshold Voltage (Note 6) RL = 100k, VO = 2V Swing, VS = 5V l 383.5 403.5 mV HYS HYS = VTH(R) – VTH(F) VS = 5V, RL = 100k, VO = 2V Swing l 2 11.5 mV IB Input Bias Current VS = 1.4V, 18V, VIN = VS l ±15 nA VS = 1.4V, VIN = 18V l ±15 nA VS = 1.4V, 18V, VIN = 0.1V l ±15 nA VOL Output Low Voltage 10mV Input Overdrive, VS = 5V, IOUT = 5mA l 250 mV IOFF Output Leakage Current VS = 1.4V, 18V, VOUT = VS, VIN = 40mV Overdrive l 1 μA VS = 1.4V, VOUT = 18V, VIN = 40mV Overdrive l 1 μA IS Supply Current No Load Current, VS = 5V l 15 μA
The
l
denotes the specifi cations which apply over the temperature range of –40°C ≤ TA ≤ 125°C, (LT6703H-2/LT6703H-3) unless otherwise specifi ed (Notes 4, 5). SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS
VTH(R) Rising Input Threshold Voltage (Note 6) RL = 100k, VO = 2V Swing, VS = 5V l 392 410 mV VTH(F) Falling Input Threshold Voltage (Note 6) RL = 100k, VO = 2V Swing, VS = 5V l 382.5 404.5 mV HYS HYS = VTH(R) – VTH(F) VS = 5V, RL = 100k, VO = 2V Swing l 2 13.5 mV IB Input Bias Current VS = 1.4V, 18V, VIN = VS l ±45 nA VS = 1.4V, VIN = 18V l ±45 nA VS = 1.4V, 18V, VIN = 0.1V l ±50 nA VOL Output Low Voltage 10mV Input Overdrive, VS = 5V, IOUT = 5mA l 250 mV IOFF Output Leakage Current VS = 1.4V, 18V, VOUT = VS, VIN = 40mV Overdrive l 1 μA VS = 1.4V, VOUT = 18V, VIN = 40mV Overdrive l 1 μA IS Supply Current No Load Current, VS = 5V l 17 μA 670323fd 4
