Datasheet LT1720, LT1721 (Analog Devices) - 2
| Fabricante | Analog Devices |
| Descripción | Dual/Quad, 4.5ns, Single Supply 3V/5V Comparators with Rail-to-Rail Outputs |
| Páginas / Página | 28 / 2 — ABSOLUTE MAXIMUM RATINGS (Note 1). PIN CONFIGURATION |
| Formato / tamaño de archivo | PDF / 274 Kb |
| Idioma del documento | Inglés |
ABSOLUTE MAXIMUM RATINGS (Note 1). PIN CONFIGURATION
Línea de modelo para esta hoja de datos
- LT1720CDD#PBF LT1720CDD#PBF LT1720CDD#TRPBF LT1720CDD#TRPBF LT1720CMS8#PBF LT1720CMS8#PBF LT1720CMS8#TRPBF LT1720CMS8#TRPBF LT1720CS8#PBF LT1720CS8#PBF LT1720CS8#TRPBF LT1720CS8#TRPBF LT1720IDD#PBF LT1720IDD#PBF LT1720IDD#TRPBF LT1720IDD#TRPBF LT1720IMS8#PBF LT1720IMS8#PBF LT1720IMS8#TRPBF LT1720IMS8#TRPBF LT1720IS8#PBF LT1720IS8#PBF LT1720IS8#TRPBF LT1720IS8#TRPBF
Versión de texto del documento
LT1720/LT1721
ABSOLUTE MAXIMUM RATINGS (Note 1)
Supply Voltage, VCC to GND ..7V Storage Temperature Range ... –65°C to 150°C Input Current ... ±10mA (DD Package) ... –65°C to 125°C Output Current (Continuous) ... ±20mA Operating Temperature Range Junction Temperature .. 150°C C Grade ... 0°C to 70°C (DD Package) .. 125°C I Grade ... –40°C to 85°C Lead Temperature (Soldering, 10 sec) .. 300°C
PIN CONFIGURATION

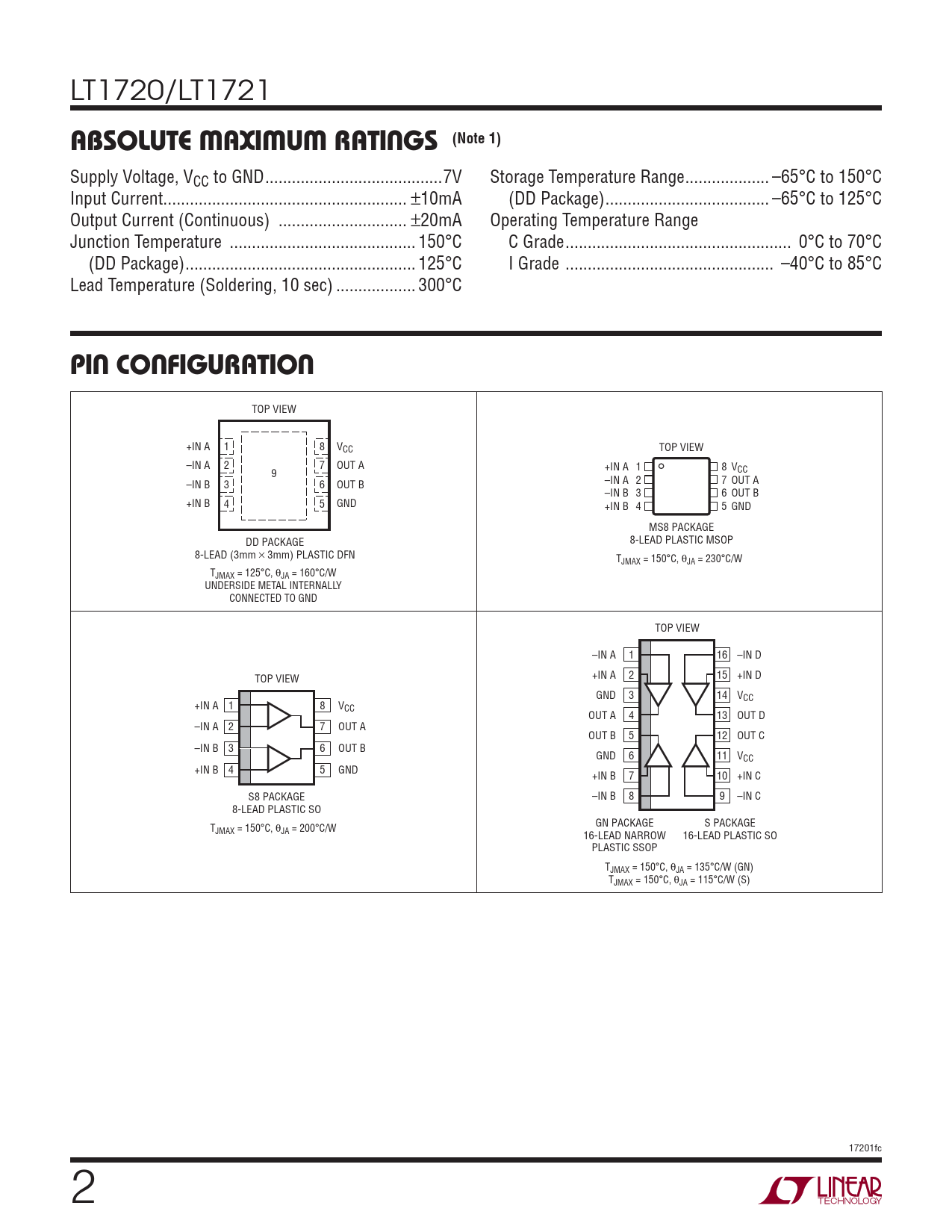

TOP VIEW +IN A 1 8 VCC TOP VIEW –IN A 2 7 OUT A +IN A 1 8 V 9 CC –IN B 3 6 OUT B –IN A 2 7 OUT A –IN B 3 6 OUT B +IN B 4 5 GND +IN B 4 5 GND MS8 PACKAGE DD PACKAGE 8-LEAD PLASTIC MSOP 8-LEAD (3mm s 3mm) PLASTIC DFN TJMAX = 150°C, θJA = 230°C/W TJMAX = 125°C, θJA = 160°C/W UNDERSIDE METAL INTERNALLY CONNECTED TO GND TOP VIEW –IN A 1 16 –IN D TOP VIEW +IN A 2 15 +IN D GND 3 14 VCC +IN A 1 8 VCC OUT A 4 13 OUT D –IN A 2 7 OUT A OUT B 5 12 OUT C –IN B 3 6 OUT B GND 6 11 VCC +IN B 4 5 GND +IN B 7 10 +IN C S8 PACKAGE –IN B 8 9 –IN C 8-LEAD PLASTIC SO T GN PACKAGE S PACKAGE JMAX = 150°C, θJA = 200°C/W 16-LEAD NARROW 16-LEAD PLASTIC SO PLASTIC SSOP TJMAX = 150°C, θJA = 135°C/W (GN) TJMAX = 150°C, θJA = 115°C/W (S) 17201fc 2
