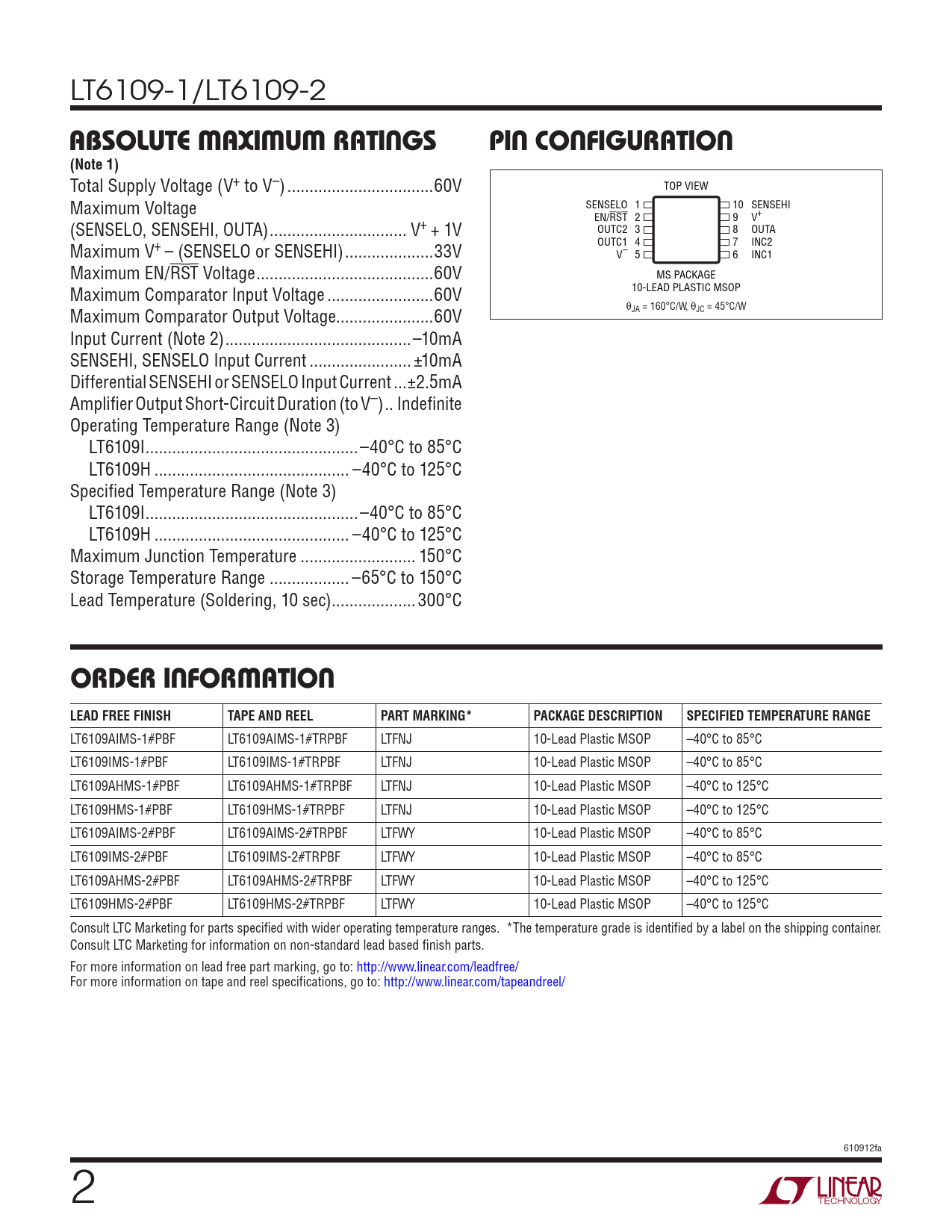

LT6109-1/LT6109-2
ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Note 1)
Total Supply Voltage (V+ to V–) ...60V TOP VIEW Maximum Voltage SENSELO 1 10 SENSEHI EN/RST 2 9 V+ (SENSELO, SENSEHI, OUTA) ... V+ + 1V OUTC2 3 8 OUTA Maximum V+ – (SENSELO or SENSEHI) ..33V OUTC1 4 7 INC2 V– 5 6 INC1 Maximum EN/RST Voltage ..60V MS PACKAGE Maximum Comparator Input Voltage ..60V 10-LEAD PLASTIC MSOP Maximum Comparator Output Voltage..60V θJA = 160°C/W, θJC = 45°C/W Input Current (Note 2) ..–10mA SENSEHI, SENSELO Input Current ... ±10mA Differential SENSEHI or SENSELO Input Current ...±2.5mA Amplifier Output Short-Circuit Duration (to V–) .. Indefinite Operating Temperature Range (Note 3) LT6109I ..–40°C to 85°C LT6109H .. –40°C to 125°C Specified Temperature Range (Note 3) LT6109I ..–40°C to 85°C LT6109H .. –40°C to 125°C Maximum Junction Temperature .. 150°C Storage Temperature Range .. –65°C to 150°C Lead Temperature (Soldering, 10 sec) ...300°C
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LT6109AIMS-1#PBF LT6109AIMS-1#TRPBF LTFNJ 10-Lead Plastic MSOP –40°C to 85°C LT6109IMS-1#PBF LT6109IMS-1#TRPBF LTFNJ 10-Lead Plastic MSOP –40°C to 85°C LT6109AHMS-1#PBF LT6109AHMS-1#TRPBF LTFNJ 10-Lead Plastic MSOP –40°C to 125°C LT6109HMS-1#PBF LT6109HMS-1#TRPBF LTFNJ 10-Lead Plastic MSOP –40°C to 125°C LT6109AIMS-2#PBF LT6109AIMS-2#TRPBF LTFWY 10-Lead Plastic MSOP –40°C to 85°C LT6109IMS-2#PBF LT6109IMS-2#TRPBF LTFWY 10-Lead Plastic MSOP –40°C to 85°C LT6109AHMS-2#PBF LT6109AHMS-2#TRPBF LTFWY 10-Lead Plastic MSOP –40°C to 125°C LT6109HMS-2#PBF LT6109HMS-2#TRPBF LTFWY 10-Lead Plastic MSOP –40°C to 125°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. Consult LTC Marketing for information on non-standard lead based finish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/ 610912fa 2 Document Outline Features Description Applications Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagrams Applications Information Typical Applications Package Description Revison History Typical Application Related Parts
