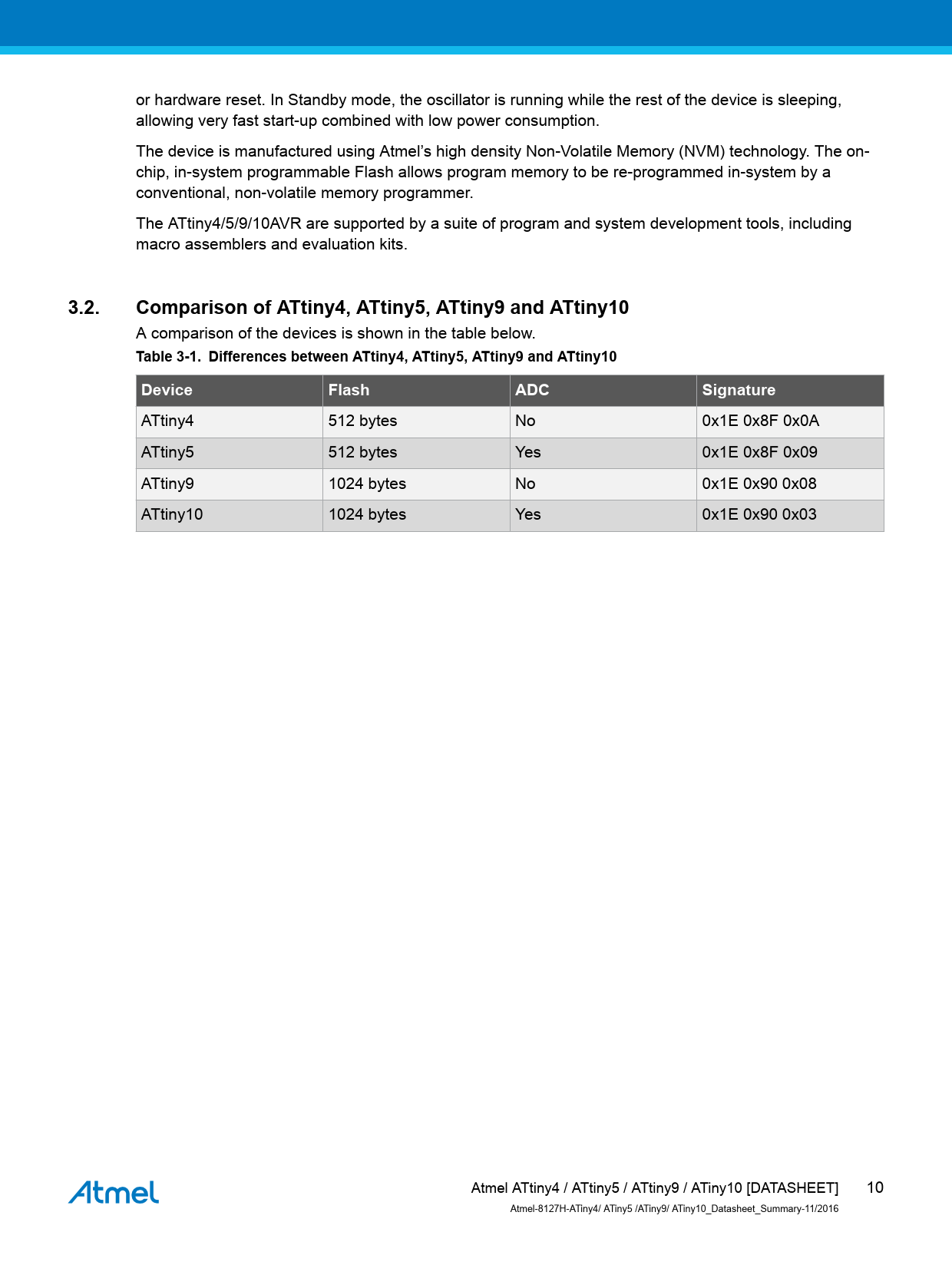

Datasheet ATtiny4, ATtiny5, ATtiny9, ATiny10. Summary Datasheet (Microchip) - 10

or hardware reset. In Standby mode, the oscillator is running while the rest of the device is sleeping, allowing very fast start-up combined with low power consumption. The device is manufactured using Atmel’s high density Non-Volatile Memory (NVM) technology. The on- chip, in-system programmable Flash allows program memory to be re-programmed in-system by a conventional, non-volatile memory programmer. The ATtiny4/5/9/10AVR are supported by a suite of program and system development tools, including macro assemblers and evaluation kits.
3.2. Comparison of ATtiny4, ATtiny5, ATtiny9 and ATtiny10
A comparison of the devices is shown in the table below.
Table 3-1. Differences between ATtiny4, ATtiny5, ATtiny9 and ATtiny10 Device Flash ADC Signature
ATtiny4 512 bytes No 0x1E 0x8F 0x0A ATtiny5 512 bytes Yes 0x1E 0x8F 0x09 ATtiny9 1024 bytes No 0x1E 0x90 0x08 ATtiny10 1024 bytes Yes 0x1E 0x90 0x03 Atmel ATtiny4 / ATtiny5 / ATtiny9 / ATiny10 [DATASHEET] 10 Atmel-8127H-ATiny4/ ATiny5 /ATiny9/ ATiny10_Datasheet_Summary-11/2016 Document Outline Introduction Feature Table of Contents 1. Pin Configurations 1.1. Pin Descriptions 1.1.1. VCC 1.1.2. GND 1.1.3. Port B (PB[3:0]) 1.1.4. RESET 2. Ordering Information 2.1. ATtiny4 2.2. ATtiny5 2.3. ATtiny9 2.4. ATtiny10 3. Overview 3.1. Block Diagram 3.1.1. Description 3.2. Comparison of ATtiny4, ATtiny5, ATtiny9 and ATtiny10 4. General Information 4.1. Resources 4.2. Data Retention 4.3. About Code Examples 4.4. Capacitive Touch Sensing 4.4.1. QTouch Library 5. Packaging Information 5.1. 6ST1 5.2. 8MA4 6. Errata 6.1. ATtiny4 6.1.1. Rev. E 6.1.2. Rev. D 6.1.3. Rev. A – C 6.2. ATtiny5 6.2.1. Rev. E 6.2.2. Rev. D 6.2.3. Rev. A – C 6.3. ATtiny9 6.3.1. Rev. E 6.3.2. Rev. D 6.3.3. Rev. A – C 6.4. ATtiny10 6.4.1. Rev. E 6.4.2. Rev. C – D 6.4.3. Rev. A – B
