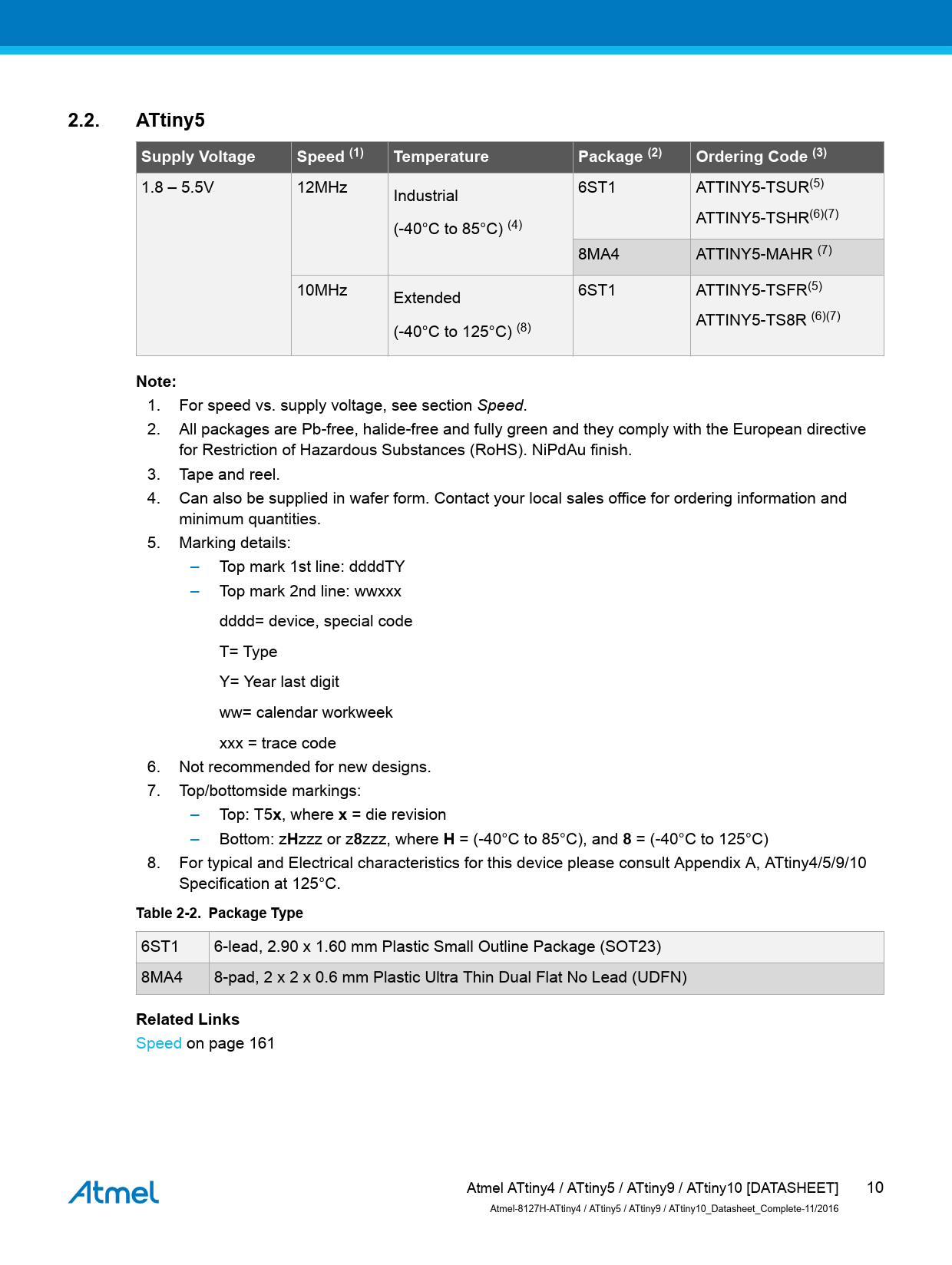

2.2. ATtiny5 Supply Voltage Speed (1) Temperature Package (2) Ordering Code (3)
1.8 – 5.5V 12MHz Industrial 6ST1 ATTINY5-TSUR(5) ATTINY5-TSHR(6)(7) (-40°C to 85°C) (4) 8MA4 ATTINY5-MAHR (7) 10MHz Extended 6ST1 ATTINY5-TSFR(5) ATTINY5-TS8R (6)(7) (-40°C to 125°C) (8)
Note: 
1. For speed vs. supply voltage, see section Speed. 2. All packages are Pb-free, halide-free and fully green and they comply with the European directive for Restriction of Hazardous Substances (RoHS). NiPdAu finish. 3. Tape and reel. 4. Can also be supplied in wafer form. Contact your local sales office for ordering information and minimum quantities. 5. Marking details: – Top mark 1st line: ddddTY – Top mark 2nd line: wwxxx dddd= device, special code T= Type Y= Year last digit ww= calendar workweek xxx = trace code 6. Not recommended for new designs. 7. Top/bottomside markings: – Top: T5
x
, where
x
= die revision – Bottom: z
H
zzz or z
8
zzz, where
H
= (-40°C to 85°C), and
8
= (-40°C to 125°C) 8. For typical and Electrical characteristics for this device please consult Appendix A, ATtiny4/5/9/10 Specification at 125°C.
Table 2-2. Package Type
6ST1 6-lead, 2.90 x 1.60 mm Plastic Small Outline Package (SOT23) 8MA4 8-pad, 2 x 2 x 0.6 mm Plastic Ultra Thin Dual Flat No Lead (UDFN)
