Datasheet ATtiny4, ATtiny5, ATtiny9, ATtiny10. Appendix A. Specification at 125C (Microchip) - 10
| Fabricante | Microchip |
| Descripción | 8-bit AVR Microcontroller with 512/1024 Bytes In-System Programmable Flash |
| Páginas / Página | 34 / 10 — Figure 2-4. 2.2. Idle Supply Current. Figure 2-5. ATtiny4/5/9/10 |
| Formato / tamaño de archivo | PDF / 1.2 Mb |
| Idioma del documento | Inglés |
Figure 2-4. 2.2. Idle Supply Current. Figure 2-5. ATtiny4/5/9/10
Línea de modelo para esta hoja de datos
Versión de texto del documento

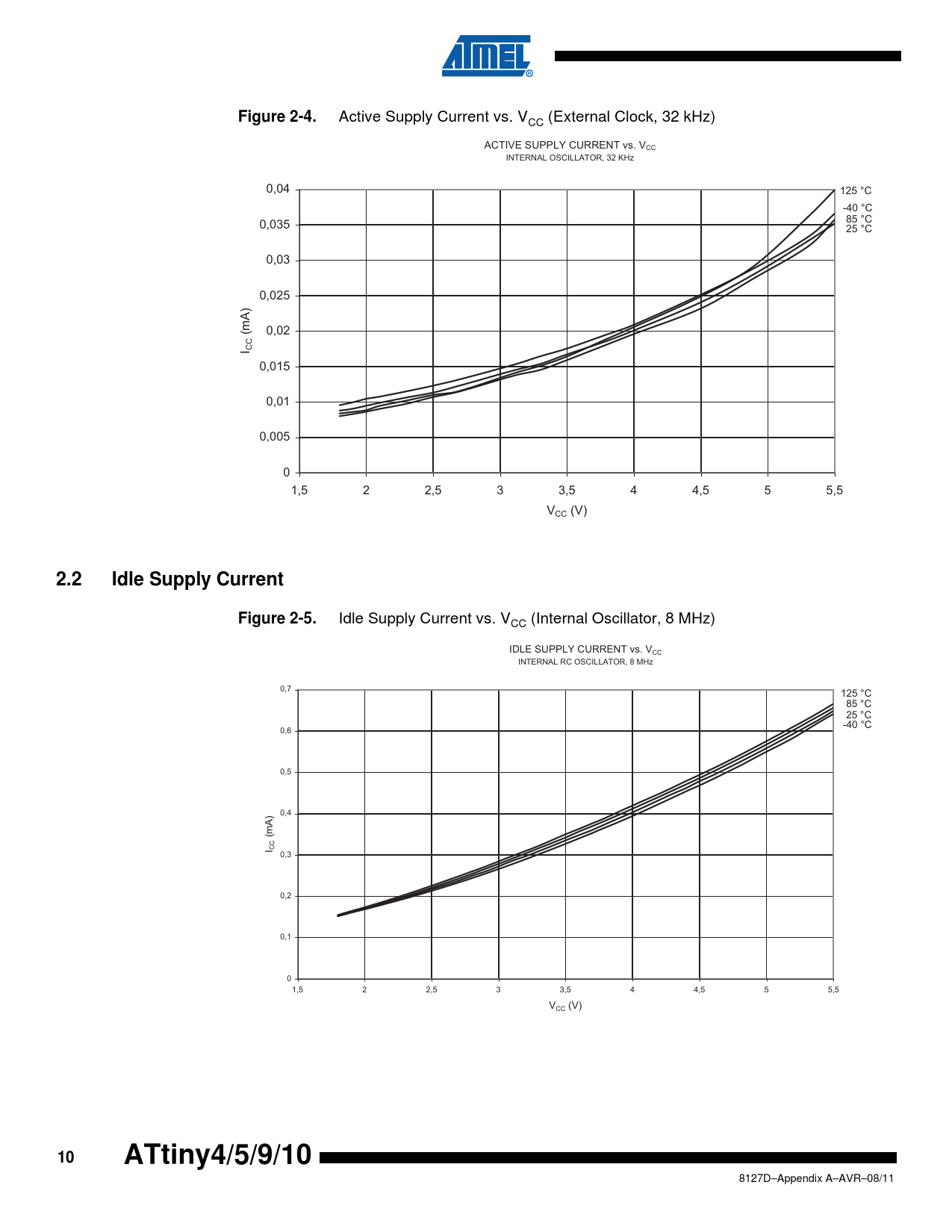

Figure 2-4.
Active Supply Current vs. V (External Clock, 32 kHz) CC ACTIVE SUPPLY CURRENT vs. VCC INTERNAL OSCILLATOR, 32 KHz 0,04 125 °C -40 °C 85 °C 0,035 25 °C 0,03 0,025 0,02 (mA) I CC 0,015 0,01 0,005 0 1,5 2 2,5 3 3,5 4 4,5 5 5,5 VCC (V)
2.2 Idle Supply Current Figure 2-5.
Idle Supply Current vs. V (Internal Oscillator, 8 MHz) CC IDLE SUPPLY CURRENT vs. VCC INTERNAL RC OSCILLATOR, 8 MHz 0,7 125 °C 85 °C 25 °C -40 °C 0,6 0,5 0,4 (mA) I CC 0,3 0,2 0,1 0 1,5 2 2,5 3 3,5 4 4,5 5 5,5 VCC (V)
