2. Overview
The ATtiny13A is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATtiny13A achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power con- sumption versus processing speed.

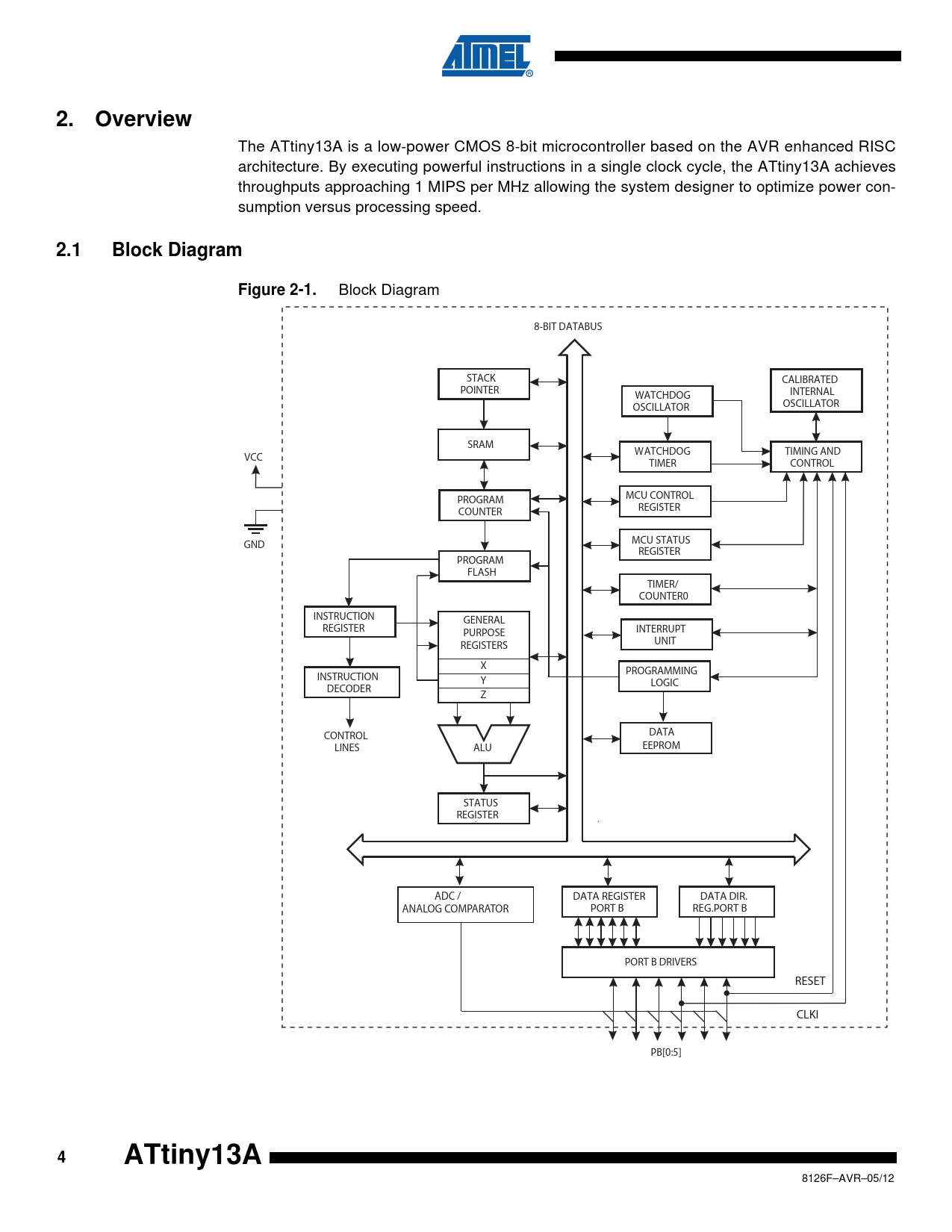

2.1 Block Diagram Figure 2-1.
Block Diagram 8-BIT DATABUS STACK CALIBRATED POINTER INTERNAL WATCHDOG OSCILLATOR OSCILLATOR SRAM WATCHDOG TIMING AND VCC TIMER CONTROL PROGRAM MCU CONTROL REGISTER COUNTER MCU STATUS GND REGISTER PROGRAM FLASH TIMER/ COUNTER0 INSTRUCTION GENERAL REGISTER PURPOSE INTERRUPT REGISTERS UNIT X PROGRAMMING INSTRUCTION Y LOGIC DECODER Z CONTROL DATA LINES ALU EEPROM STATUS REGISTER ADC / DATA REGISTER DATA DIR. ANALOG COMPARATOR PORT B REG.PORT B PORT B DRIVERS RESET CLKI PB[0:5]
