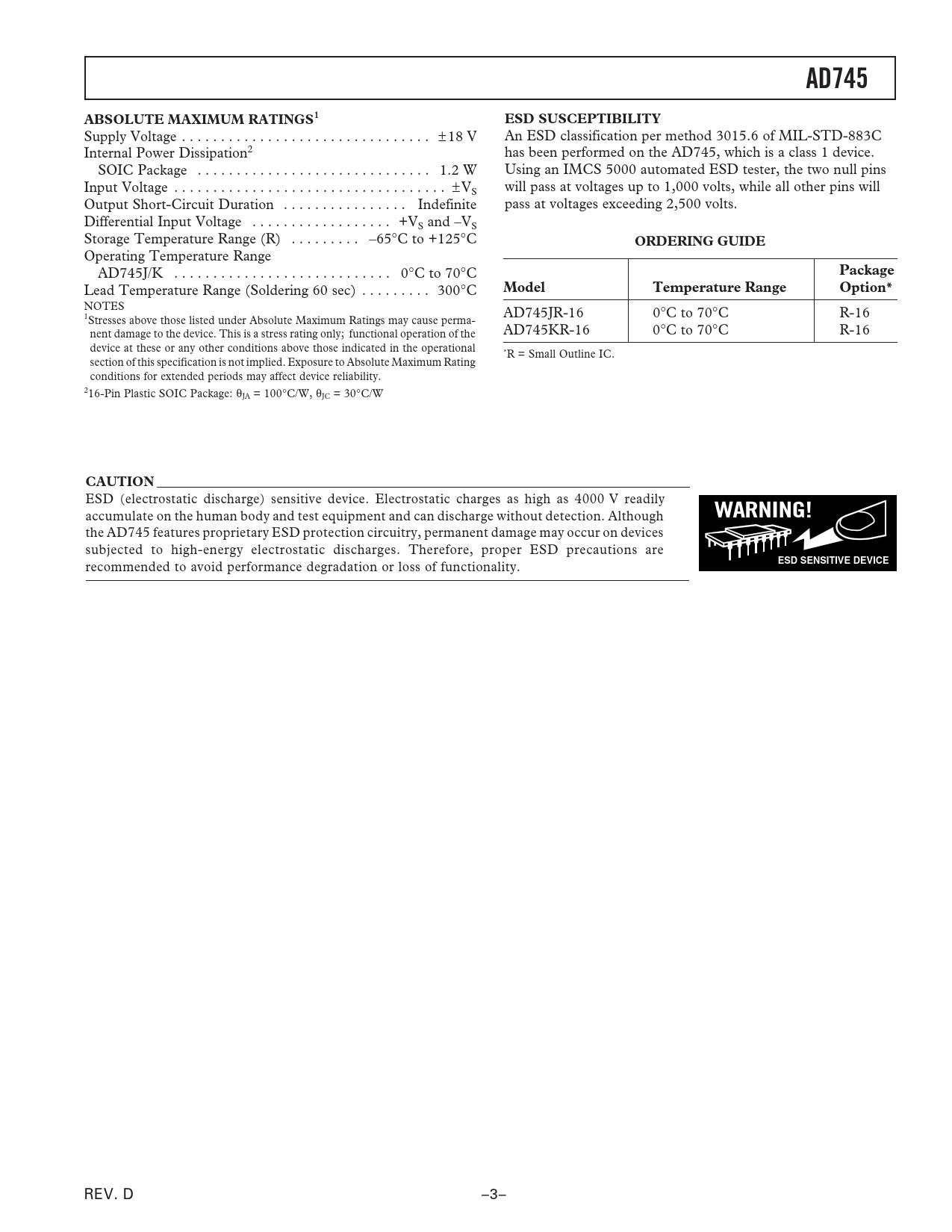

AD745 ABSOLUTE MAXIMUM RATINGS1 ESD SUSCEPTIBILITY
Supply Voltage . ± 18 V An ESD classification per method 3015.6 of MIL-STD-883C Internal Power Dissipation2 has been performed on the AD745, which is a class 1 device. SOIC Package . 1.2 W Using an IMCS 5000 automated ESD tester, the two null pins Input Voltage . ± V will pass at voltages up to 1,000 volts, while all other pins will S Output Short-Circuit Duration . Indefinite pass at voltages exceeding 2,500 volts. Differential Input Voltage . +VS and –VS Storage Temperature Range (R) . –65°C to +125°C
ORDERING GUIDE
Operating Temperature Range
Package
AD745J/K . 0°C to 70°C
Model Temperature Range Option*
Lead Temperature Range (Soldering 60 sec) . 300°C NOTES 1 AD745JR-16 0°C to 70°C R-16 Stresses above those listed under Absolute Maximum Ratings may cause perma- AD745KR-16 0 nent damage to the device. This is a stress rating only; functional operation of the °C to 70°C R-16 device at these or any other conditions above those indicated in the operational *R = Small Outline IC. section of this specification is not implied. Exposure to Absolute Maximum Rating conditions for extended periods may affect device reliability. 216-Pin Plastic SOIC Package: θJA = 100°C/W, θJC = 30°C/W
CAUTION
ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily accumulate on the human body and test equipment and can discharge without detection. Although
WARNING!
the AD745 features proprietary ESD protection circuitry, permanent damage may occur on devices subjected to high-energy electrostatic discharges. Therefore, proper ESD precautions are
ESD SENSITIVE DEVICE
recommended to avoid performance degradation or loss of functionality. REV. D –3–
