Datasheet ADA4084-1, ADA4084-2, ADA4084-4 (Analog Devices) - 10
| Fabricante | Analog Devices |
| Descripción | 30 V, Low Noise, Rail-to-Rail Input/Output, Low Power Operational Single Amplifier |
| Páginas / Página | 35 / 10 — ADA4084-1/ADA4084-2/ADA4084-4. Data Sheet. T A. T D. –IN A 1. 12 –IN D. … |
| Revisión | I |
| Formato / tamaño de archivo | PDF / 992 Kb |
| Idioma del documento | Inglés |
ADA4084-1/ADA4084-2/ADA4084-4. Data Sheet. T A. T D. –IN A 1. 12 –IN D. +IN A 2. ADA4084-4. 11 +IN D. TOP. V+ 3. 10 V–. VIEW. +IN B 4. +IN C. N B. T B
Versión de texto del documento

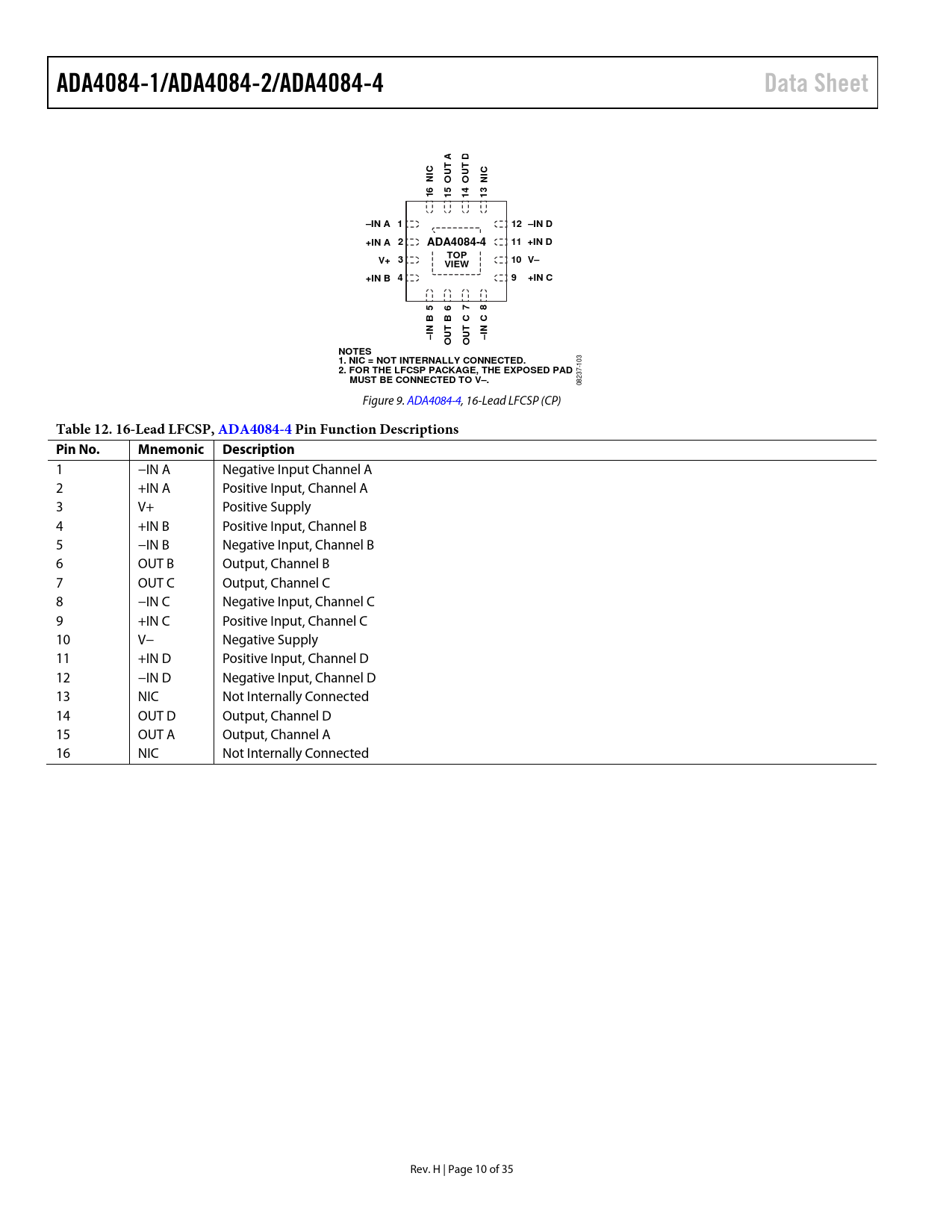

ADA4084-1/ADA4084-2/ADA4084-4 Data Sheet C T A T D C NI OU OU NI 16 15 14 13 –IN A 1 12 –IN D +IN A 2 ADA4084-4 11 +IN D TOP V+ 3 10 V– VIEW +IN B 4 9 +IN C 5 6 7 8 N B T B T C N C –I –I OU OU NOTES 1. NIC = NOT INTERNALLY CONNECTED.
103
2. FOR THE LFCSP PACKAGE, THE EXPOSED PAD MUST BE CONNECTED TO V–.
08237- Figure 9. ADA4084-4, 16-Lead LFCSP (CP)
Table 12. 16-Lead LFCSP, ADA4084-4 Pin Function Descriptions Pin No. Mnemonic Description
1 −IN A Negative Input Channel A 2 +IN A Positive Input, Channel A 3 V+ Positive Supply 4 +IN B Positive Input, Channel B 5 −IN B Negative Input, Channel B 6 OUT B Output, Channel B 7 OUT C Output, Channel C 8 −IN C Negative Input, Channel C 9 +IN C Positive Input, Channel C 10 V− Negative Supply 11 +IN D Positive Input, Channel D 12 −IN D Negative Input, Channel D 13 NIC Not Internally Connected 14 OUT D Output, Channel D 15 OUT A Output, Channel A 16 NIC Not Internally Connected Rev. H | Page 10 of 35 Document Outline FEATURES APPLICATIONS PIN CONNECTION DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS ±1.5 V CHARACTERISTICS ±5 V CHARACTERISTICS ±15 V CHARACTERISTICS APPLICATIONS INFORMATION FUNCTIONAL DESCRIPTION START-UP CHARACTERISTICS INPUT PROTECTION OUTPUT PHASE REVERSAL DESIGNING LOW NOISE CIRCUITS IN SINGLE-SUPPLY APPLICATIONS COMPARATOR OPERATION OUTLINE DIMENSIONS ORDERING GUIDE
