Datasheet ADA4610-1, ADA4610-2, ADA4610-4 (Analog Devices) - 8
| Fabricante | Analog Devices |
| Descripción | Low Noise, Precision, Rail-to-Rail Output, JFET Single Op Amp |
| Páginas / Página | 25 / 8 — ADA4610-1/ADA4610-2/ADA4610-4. Data Sheet. OUT A 1. 8 V+. –IN A. … |
| Revisión | I |
| Formato / tamaño de archivo | PDF / 761 Kb |
| Idioma del documento | Inglés |

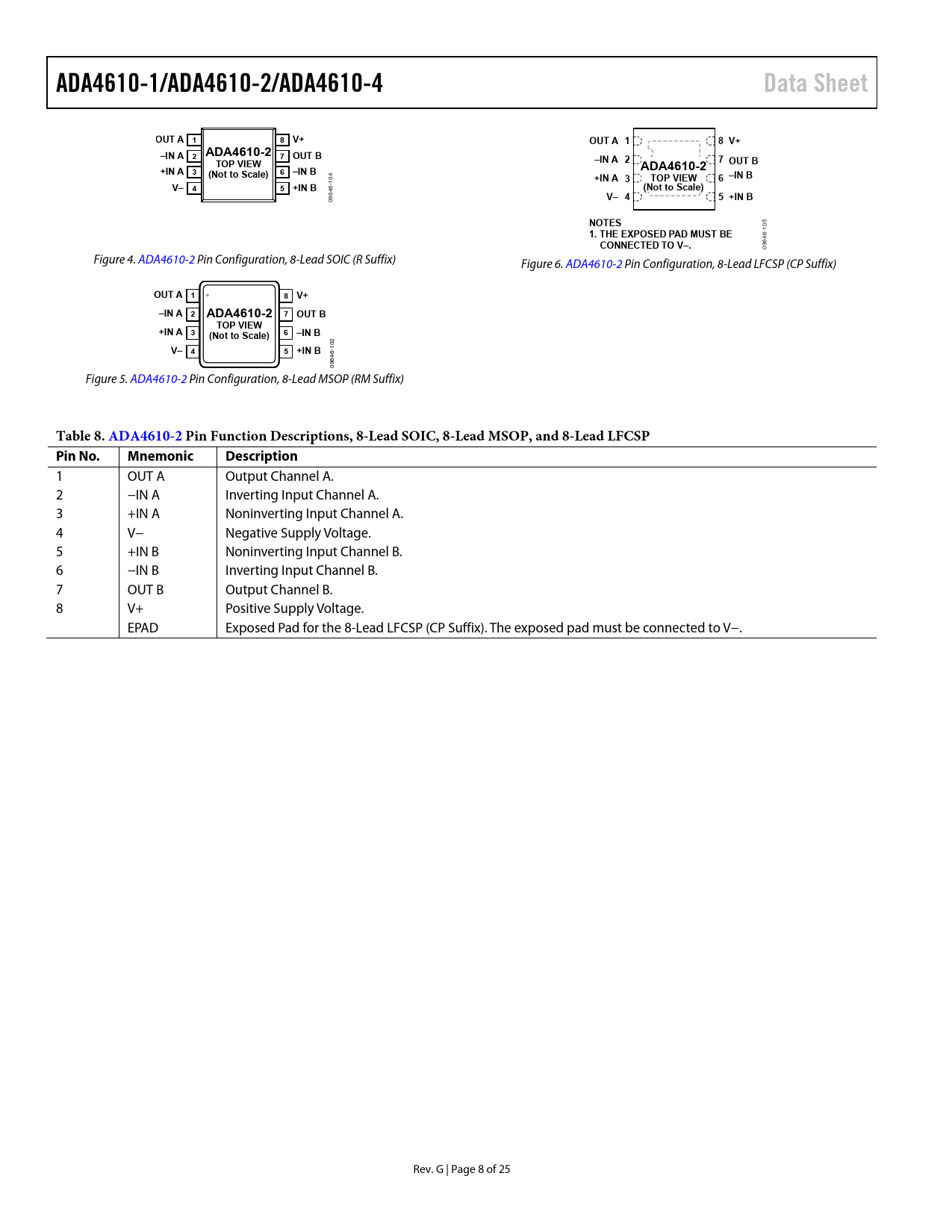

ADA4610-1/ADA4610-2/ADA4610-4. Data Sheet. OUT A 1. 8 V+. –IN A. ADA4610-2. 7 OUT B. TOP VIEW. –IN A 2. +IN A 3. 6 –IN B. (Not to Scale). +IN A
Versión de texto del documento
ADA4610-1/ADA4610-2/ADA4610-4 Data Sheet OUT A 1 8 V+ OUT A 1 8 V+ –IN A ADA4610-2 2 7 OUT B TOP VIEW –IN A 2 7 OUT B ADA4610-2 +IN A 3 6 –IN B
4
(Not to Scale) +IN A –IN B 3 TOP VIEW 6
-10 6
V– 4 5 +IN B (Not to Scale)
64
V– 4 5 +IN B
09
NOTES
05 1
1. THE EXPOSED PAD MUST BE
6-
CONNECTED TO V–.
964 0 Figure 4. ADA4610-2 Pin Configuration, 8-Lead SOIC (R Suffix) Figure 6. ADA4610-2 Pin Configuration, 8-Lead LFCSP (CP Suffix)
OUT A 1 8 V+ –IN A 2 ADA4610-2 7 OUT B TOP VIEW +IN A 3 6 –IN B (Not to Scale)
02
V– 4 5 +IN B
1 6- 964 0 Figure 5. ADA4610-2 Pin Configuration, 8-Lead MSOP (RM Suffix)
Table 8. ADA4610-2 Pi n Function Descriptions, 8-Lead SOIC, 8-Lead MSOP, and 8-Lead LFCSP Pin No. Mnemonic Description
1 OUT A Output Channel A. 2 −IN A Inverting Input Channel A. 3 +IN A Noninverting Input Channel A. 4 V− Negative Supply Voltage. 5 +IN B Noninverting Input Channel B. 6 −IN B Inverting Input Channel B. 7 OUT B Output Channel B. 8 V+ Positive Supply Voltage. EPAD Exposed Pad for the 8-Lead LFCSP (CP Suffix). The exposed pad must be connected to V−. Rev. G | Page 8 of 25 Document Outline FEATURES APPLICATIONS PIN CONFIGURATION GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS COMPARATIVE VOLTAGE AND VARIABLE VOLTAGE GRAPHS FUNCTIONAL DESCRIPTION APPLICATIONS INFORMATION INPUT OVERVOLTAGE PROTECTION PEAK DETECTOR CURRENT TO VOLTAGE (I TO V) CONVERSION APPLICATIONS Photodiode Circuits COMPARATOR OPERATION OUTLINE DIMENSIONS ORDERING GUIDE
