Datasheet ADA4806-1 (Analog Devices)
Fabricante | Analog Devices |
Descripción | 0.2 μV/°C Offset Drift, 105 MHz, Low Power, Multimode, Rail-to-Rail Amplifier |
Páginas / Página | 25 / 1 — 0.2 µV/°C Offset Drift, 105 MHz, Low Power,. Multimode, Rail-to-Rail … |
Revisión | A |
Formato / tamaño de archivo | PDF / 684 Kb |
Idioma del documento | Inglés |
0.2 µV/°C Offset Drift, 105 MHz, Low Power,. Multimode, Rail-to-Rail Amplifier. Data Sheet. ADA4806-1. FEATURES
Versión de texto del documento

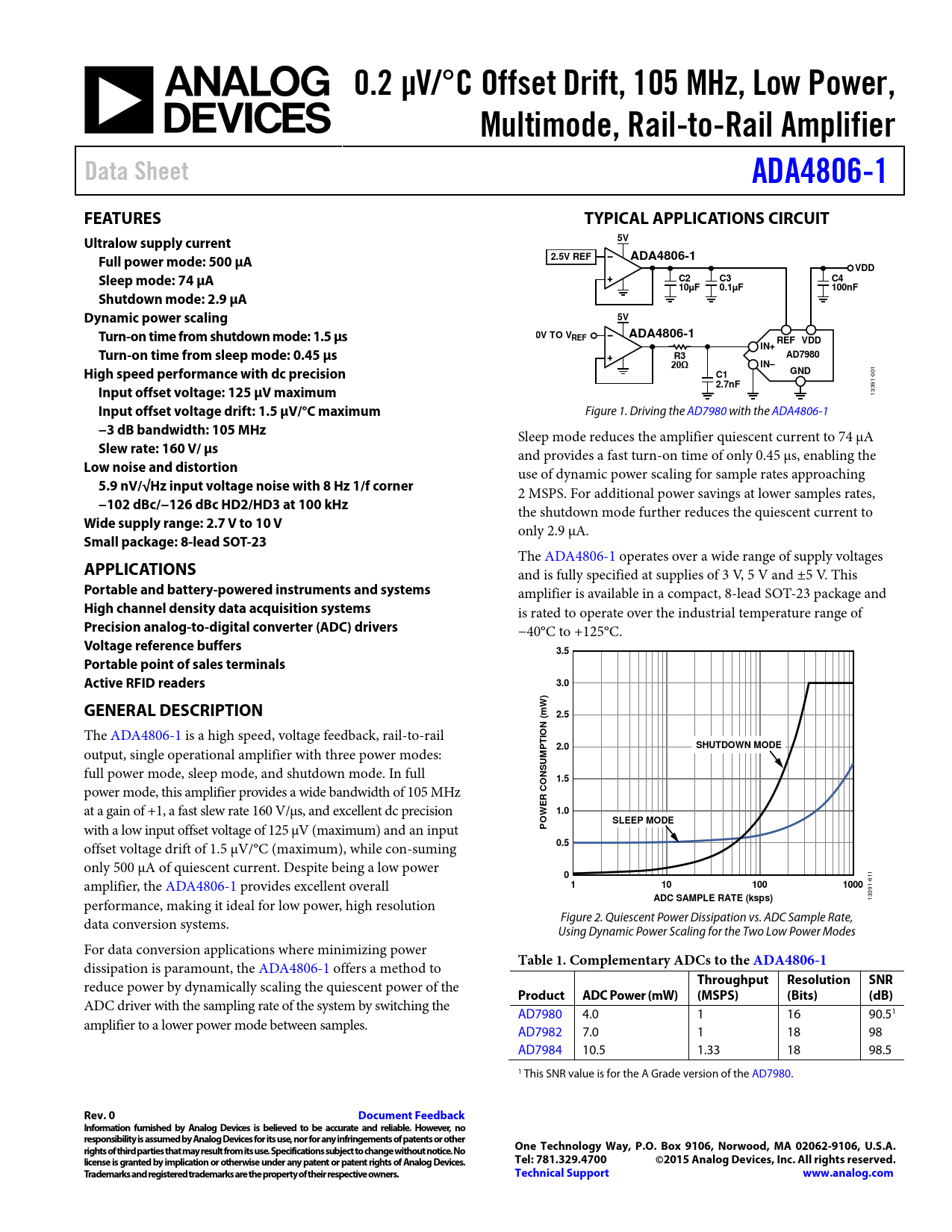

0.2 µV/°C Offset Drift, 105 MHz, Low Power, Multimode, Rail-to-Rail Amplifier Data Sheet ADA4806-1 FEATURES TYPICAL APPLICATIONS CIRCUIT Ultralow supply current 5V Full power mode: 500 µA 2.5V REF ADA4806-1 VDD Sleep mode: 74 µA C2 C3 C4 10µF 0.1µF 100nF Shutdown mode: 2.9 µA Dynamic power scaling 5V Turn-on time from shutdown mode: 1.5 µs 0V TO V ADA4806-1 REF REF VDD IN+ Turn-on time from sleep mode: 0.45 µs R3 AD7980 20Ω IN– High speed performance with dc precision GND
001
C1 Input offset voltage: 125 µV maximum 2.7nF
13391-
Input offset voltage drift: 1.5 µV/°C maximum
Figure 1. Driving the AD7980 with the ADA4806-1
−3 dB bandwidth: 105 MHz
Sleep mode reduces the amplifier quiescent current to 74 µA
Slew rate: 160 V/ µs
and provides a fast turn-on time of only 0.45 µs, enabling the
Low noise and distortion
use of dynamic power scaling for sample rates approaching
5.9 nV/√Hz input voltage noise with 8 Hz 1/f corner
2 MSPS. For additional power savings at lower samples rates,
−102 dBc/−126 dBc HD2/HD3 at 100 kHz
the shutdown mode further reduces the quiescent current to
Wide supply range: 2.7 V to 10 V
only 2.9 µA.
Small package: 8-lead SOT-23
The ADA4806-1 operates over a wide range of supply voltages
APPLICATIONS
and is fully specified at supplies of 3 V, 5 V and ±5 V. This
Portable and battery-powered instruments and systems
amplifier is available in a compact, 8-lead SOT-23 package and
High channel density data acquisition systems
is rated to operate over the industrial temperature range of
Precision analog-to-digital converter (ADC) drivers
−40°C to +125°C.
Voltage reference buffers 3.5 Portable point of sales terminals Active RFID readers 3.0 ) GENERAL DESCRIPTION mW 2.5 N (
The ADA4806-1 is a high speed, voltage feedback, rail-to-rail
IO T SHUTDOWN MODE
output, single operational amplifier with three power modes:
P 2.0 UM
full power mode, sleep mode, and shutdown mode. In full
NS 1.5
power mode, this amplifier provides a wide bandwidth of 105 MHz
R CO
at a gain of +1, a fast slew rate 160 V/μs, and excel ent dc precision
E W 1.0 O
with a low input offset voltage of 125 μV (maximum) and an input
SLEEP MODE P
offset voltage drift of 1.5 μV/°C (maximum), while con-suming
0.5
only 500 μA of quiescent current. Despite being a low power 1
0
1 amplifier, the ADA4806-1 provides excellent overall 6
1 10 100 1000
performance, making it ideal for low power, high resolution
ADC SAMPLE RATE (ksps)
13391- data conversion systems. Figure 2. Quiescent Power Dissipation vs. ADC Sample Rate, Using Dynamic Power Scaling for the Two Low Power Modes For data conversion applications where minimizing power dissipation is paramount, the ADA4806-1 offers a method to
Table 1. Complementary ADCs to the ADA4806-1
reduce power by dynamically scaling the quiescent power of the
Throughput Resolution SNR Product ADC Power (mW) (MSPS) (Bits) (dB)
ADC driver with the sampling rate of the system by switching the AD7980 4.0 1 16 90.51 amplifier to a lower power mode between samples. AD7982 7.0 1 18 98 AD7984 10.5 1.33 18 98.5 1 This SNR value is for the A Grade version of the AD7980.
