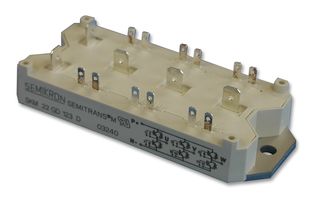

Datasheet SKM22GD123D - Semikron IGBT MODULE, 3-PHASE BRIDGE — Ficha de datos

Descripción detallada

Manufacturer: Semikron

Description: IGBT MODULE, 3-PHASE BRIDGE

Specifications:

• Av Current Ic: 25 A
• Collector Emitter Voltage V(br)ceo: 1.2 kV
• Collector Emitter Voltage Vces: 3 V
• Current Ic Continuous a Max: 25 A
• Current Ic Continuous b Max: 15 A
• Current Temperature: 25°C
• DC Collector Current: 22 A
• External Depth: 45 mm
• External Length / Height: 24 mm
• External Width: 105 mm
• Fixing Centres: 82 mm
• Fixing Hole Diameter: 2.5 mm
• Mounting Type: Screw
• Number of Pins: 17
• Number of Transistors: 6
• Package / Case: SEMITRANS 6
• Power Dissipation Pd: 145 W
• Power Dissipation Ptot Max: 145 W
• Pulsed Current Icm: 25 A
• Rise Time: 35 ns
• Transistor Case Style: SEMITRANS 6
• Transistor Polarity: N Channel
• Transistor Type:
• Voltage Vces: 1.2 kV

RoHS: Yes
