Datasheet CM600HU-12F - Powerex IGBT MODULE, 600 V, 600 A — Ficha de datos

Descripción detallada

Manufacturer: Powerex

Description: IGBT MODULE, 600 V, 600 A

Download Data Sheet

Docket:
CM600HU-12F
Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925-7272

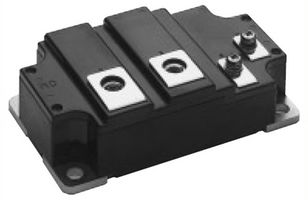

Trench Gate Design Single IGBTMODTM
600 Amperes/600 Volts
N (2 TYP) A D G F G

Specifications:

• Collector Emitter Voltage V(br)ceo: 600 V
• Collector Emitter Voltage Vces: 600 V
• DC Collector Current: 600 A
• Operating Temperature Range: -40°C to +150°C
• Power Dissipation Pd: 1.42 kW
• Transistor Polarity: N Channel

RoHS: Yes

Otros nombres:

CM600HU12F, CM600HU 12F
