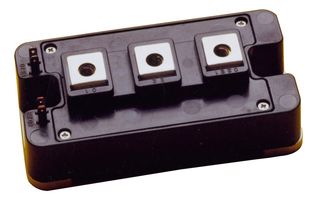

Powerex CM200DY-12NF

Part Number: CM200DY-12NF

Descripción detallada

Manufacturer: Powerex

Description: IGBT MODULE, 600 V, 200 A

data sheetDownload Data Sheet

Docket:
CM200DY-12NF
Powerex, Inc., 200 E.

Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925-7272
Dual IGBTMODTM NF-Series Module
200 Amperes/600 Volts
TC MEASURED POINT (BASEPLATE)

Specifications:

  • Collector Emitter Voltage V(br)ceo: 600 V
  • Collector Emitter Voltage Vces: 600 V
  • DC Collector Current: 200 A
  • Operating Temperature Range: -40°C to +150°C
  • Power Dissipation Pd: 650 W
  • Transistor Polarity: N Channel

RoHS: Yes

Otros nombres:

CM200DY12NF, CM200DY 12NF
