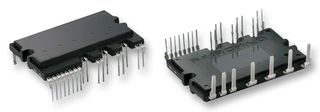

Datasheet FSBF10CH60BTL - Fairchild 6-PACK IGBT MODULE 10 A 600 V 3 PH — Ficha de datos

Descripción detallada

Manufacturer: Fairchild

Description: 6-PACK IGBT MODULE 10 A 600 V 3 PH

Download Data Sheet

Docket:
FSBF10CH60BT Smart Power Module
June 2007
FSBF10CH60BT
Smart Power Module
Features

Specifications:

• Transistor Type: IGBT
• DC Collector Current: 10 A
• Collector Emitter Voltage Vces: 2.2 V
• Power Dissipation Max: 20 W
• Collector Emitter Voltage V(br)ceo: 600 V
• Operating Temperature Range: -40°C to +150°C
• Transistor Case Style: SPM27-JB
• Number of Pins: 27
• Current Ic Continuous a Max: 10 A
• Package / Case: SPM27-JB
• Power Dissipation: 20 W
• Termination Type: Through Hole
• Transistor Polarity: N Channel
• Voltage Vces: 600 V
