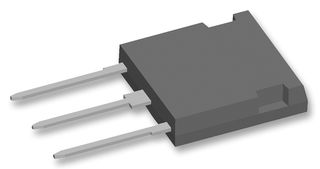

Datasheet IXGF32N170 - IXYS IGBT, ISOI4-PAC — Ficha de datos

Descripción detallada

Manufacturer: IXYS

Description: IGBT, ISOI4-PAC

Download Data Sheet

Docket:


Specifications:

• Transistor Type: IGBT
• DC Collector Current: 44 A
• Collector Emitter Voltage Vces: 3.5 V
• Power Dissipation Max: 200 W
• Collector Emitter Voltage V(br)ceo: 1.7kV
• Operating Temperature Range: -55°C to +150°C
• Transistor Case Style: ISOi4-PAC
• Current Ic Continuous a Max: 26 A
• Junction to Case Thermal Resistance A: 0.65°C/W
• Package / Case: ISOi4-PAC
• Pin Configuration: Single
• Termination Type: Through Hole
• Transistor Polarity: NPN
• Voltage Vces: 1700 V

RoHS: Yes
