Datasheet Wago 890-653 — Ficha de datos

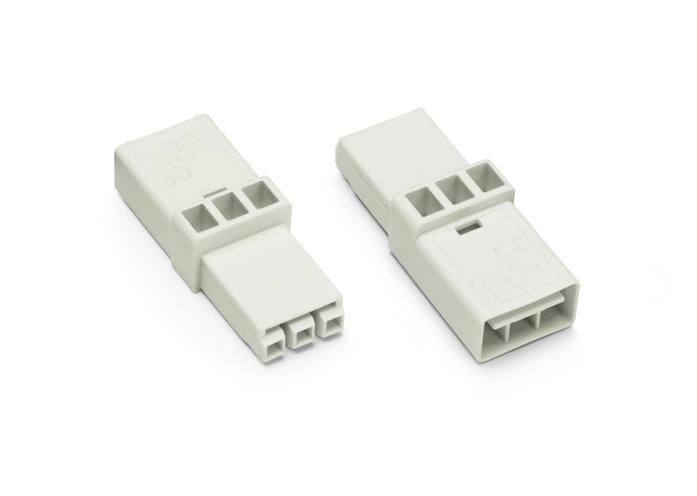

Acoplador intermedio; 1 x enchufe / 1 x enchufe; 3 polos; 100% protegido contra desajustes
Precios
Descripción detallada
Paramétricos
| Coding | A |
| Contact material | Copper or copper alloy, surface-treated |
| Contact type (pluggable connector) | Socket/plug |
| Страна происхождения | DE |
| Degree of protection | IP20 |
| Depth | 37.2 mm / 1.465 inch |
| Fire load | 0.059 MJ |
| Flammability class per UL94 | V0 |
| Global Trade Item Number (GTIN) | 4050821295457 |
| Height | 10.5 mm / 0.413 inch |
| Insulating material | Polyamide 66 (PA 66) |
| Legend (ratings) | (III / 3) ≙ Overvoltage category III / Pollution degree 3 |
| Locking lever | yes |
| Locking of plug-in connection | locking lever |
| Mating force of a plug-in connection | approx. 20 … 70 N (depending on pole number) |
| Mismating protection | Yes |
| Number of Poles | 3 |
| Pin spacing | 4.4 mm (0.173 inch) |
| Product Group | 20 (WINSTA) |
| Rated current | 16 A |
| Rated impulse voltage (III / 3) | 4 kV |
| Rated voltage (III / 3) | 250 V |
| Retention force of a plug-in connection | when locked: > 80N |
| Surrounding air (operating) temperature | -35 … 85 °C |
| Total number of potentials | 3 |
| Type of distribution connector | Intermediate coupler |
| Unmating force of a plug-in connection | when unlocked: approx. 20 … 70 N (depending on pole number) |
| Weight | 3.5 g |
| Width | 14.5 mm / 0.571 inch |
