Hojas de datosConectores enchufablesWago774
774-9993/1517-101

Datasheet Wago 774-9993/1517-101 — Ficha de datos

FabricanteWago
Serie774
Numero de parte774-9993/1517-101
Datasheet Wago 774-9993/1517-101

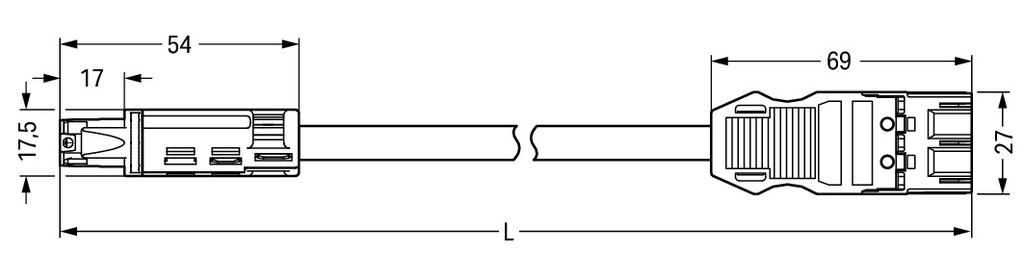

cable adaptador premontado; Eca; Toma / enchufe MIDI; 3 polos; Bacalao. UNA; H05Z1Z1-F 3G 2.5 mm²; 1 m

Precios

Descripción detallada

Wago 774-9993/1517-101

Paramétricos

Colorblack
Connection typeSocket (RD) - Plug (MIDI)
Connector colorblack
Contact materialCopper or copper alloy, surface-treated
Страна происхожденияDE
Cross section of single conductor2.5 mm²
Degree of protectionIP20
Durchmesser der Mantelleitung9.2 … 11.4 mm
Flammability class per UL94V0
Global Trade Item Number (GTIN)4055143237772
Insulating materialPolyamide 66 (PA 66)
Legend (ratings)(III / 3) ≙ Overvoltage category III / Pollution degree 3
Locking of plug-in connectionlocking lever
MarkingL ⏚ N
Mating force of a plug-in connectionapprox. 30 … 70 N (depending on pole number)
Mismating protectionYes
Number of Poles3
Potential markingN ⏚ L
Rated current20 A
Rated impulse voltage (III / 3)4 kV
Rated voltage (III / 3)250 V
Reaction to fire class per EN 50575Eca
Retention force of a plug-in connectionwhen locked: > 80N
Strain relief colorblack
Surrounding air (operating) temperature-35 … 85 °C
Total length1 m
Total number of potentials3
Type of cableH05Z1Z1-F 3G2.5
Type of cable assemblyAdapter cable
Unmating force of a plug-in connectionwhen unlocked: approx. 30 … 70 N (depending on pole number)
Weight161.228 g

Linea modelo

Serie: 774 (100 desde 386)

Clasificación del fabricante

  • Pluggable Connection Systems

Otros nombres:

7749993/1517101, 774 9993/1517 101
