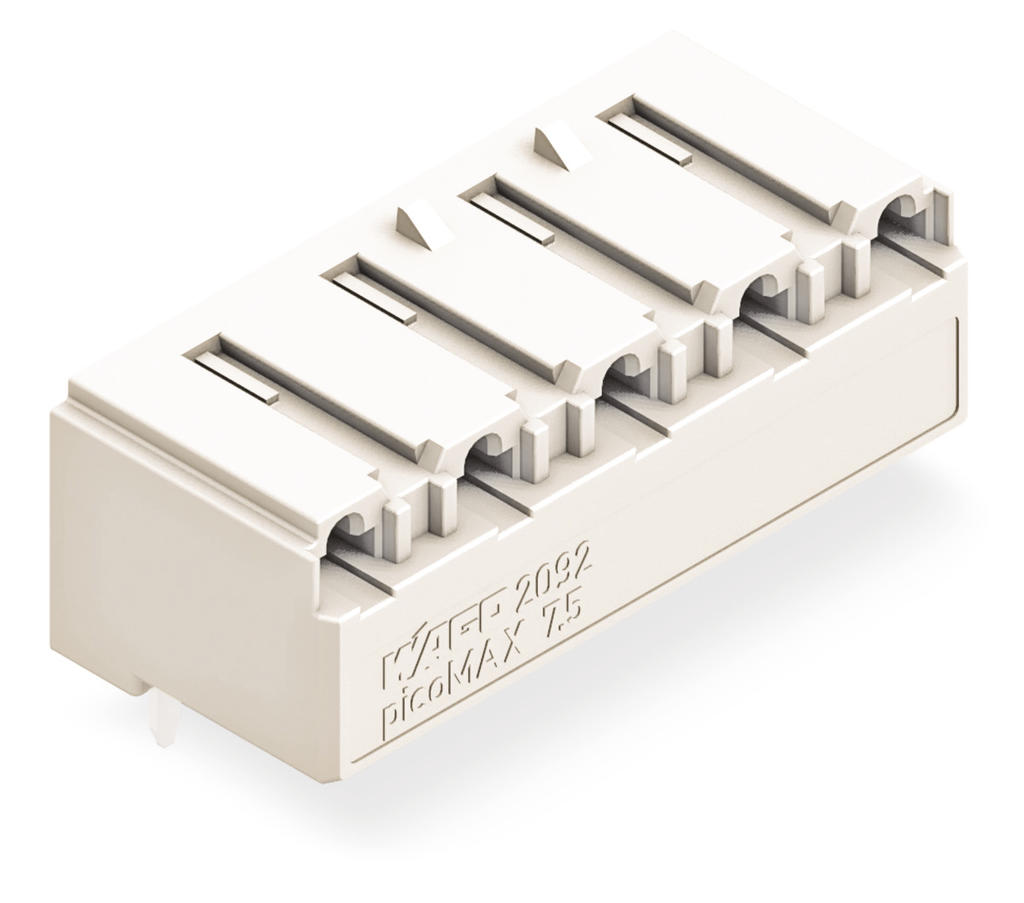

Datasheet Wago 2092-3325 — Ficha de datos
THT encabezado femenino; Pin de soldadura de 0.4 x 1.3 mm; angular; Espaciado de pasador de 7,5 mm; 5 polos
Precios
Descripción detallada
Paramétricos
| Color | light gray |
| Connector connection type | for PCBs |
| Contact material | Copper alloy |
| Contact plating | tin-plated |
| Contact type (pluggable connector) | Female connector/socket |
| Страна происхождения | DE |
| Depth | 15.4 mm / 0.606 inch |
| Fire load | 0.156 MJ |
| Flammability class per UL94 | V0 |
| Global Trade Item Number (GTIN) | 4050821164548 |
| Height | 17.2 mm / 0.677 inch |
| Height from the surface | 13.6 mm / 0.535 inch |
| Insulating material | Polyphtalamide (PPA GF) |
| Legend (ratings) | (III / 2) ≙ Overvoltage category III / Pollution degree 2 |
| Limit temperature range | -60 … +100 °C |
| Material group | I |
| Mismating protection | No |
| Number of Poles | 5 |
| Number of levels | 1 |
| PCB contact | THR |
| Pin spacing | 7.5 mm (0.295 inch) |
| Plated through-hole diameter (THR) | 1.5 (+ 0.1) mm |
| Product Group | 26 (picoMAX) |
| Rated current | 16 A |
| Rated impulse voltage (II / 2) | 6 kV |
| Rated impulse voltage (III / 2) | 6 kV |
| Rated impulse voltage (III / 3) | 6 kV |
| Rated voltage (II / 2) | 1000 V |
| Rated voltage (III / 2) | 630 V |
| Rated voltage (III / 3) | 400 V |
| Solder pin dimensions | 0.4 x 1.3 mm |
| Solder pin length | 3.6 mm |
| Total number of potentials | 5 |
| Weight | 6.24 g |
| Width | 35 mm / 1.378 inch |
