Datasheet Wago 745-838 — Ficha de datos

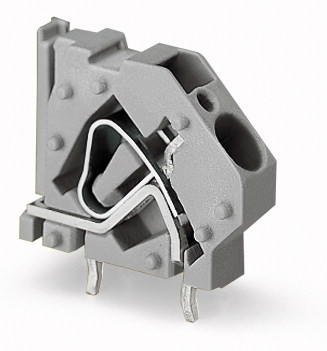

Bloque de terminales de PCB apilable; 6 mm²; Espaciado de pasador de 7,5 mm; 1 polo; Abrazadera de la jaula; opción común
Precios
Paramétricos
| Actuation type | Operating tool |
| Clamping spring material | Chrome nickel spring steel (CrNi) |
| Color | light green |
| Conductor entry angle to the PCB | 45 ° |
| Connection technology | CAGE CLAMP® |
| Contact material | Electrolytic copper (Ecu) |
| Contact plating | tin-plated |
| Страна происхождения | PL |
| Depth | 29.1 mm / 1.146 inch |
| Drilled hole diameter (tolerance) | 1.8(+ 0.1) mm |
| Fine-stranded conductor | 0.2 … 6 mm² / 24 … 10 AWG |
| Fine-stranded conductor with ferrule with plastic collar | 0.25 … 4 mm² |
| Fine-stranded conductor with ferrule without plastic collar | 0.25 … 4 mm² |
| Fire load | 0.072 MJ |
| Flammability class per UL94 | V0 |
| Global Trade Item Number (GTIN) | 4044918937276 |
| Height | 27.5 mm / 1.083 inch |
| Height from the surface | 23 mm / 0.906 inch |
| Insulating material | Polyamide 66 (PA 66) |
| Legend (ratings) | (III / 2) ≙ Overvoltage category III / Pollution degree 2 |
| Limit temperature range | -60 … +105 °C |
| Material group | I |
| Number of Poles | 1 |
| Number of connection types | 1 |
| Number of jumper slots | 1 |
| Number of levels | 1 |
| Number of solder pins per potential | 2 |
| PCB contact | THT |
| Pin spacing | 7.5 mm (0.295 inch) |
| Product Group | 4 (Printed Circuit) |
| Rated current | 41 A |
| Rated impulse voltage (II / 2) | 6 kV |
| Rated impulse voltage (III / 2) | 6 kV |
| Rated impulse voltage (III / 3) | 6 kV |
| Rated voltage (II / 2) | 1000 V |
| Rated voltage (III / 2) | 630 V |
| Rated voltage (III / 3) | 500 V |
| Solder pin arrangement | within the terminal block, in line |
| Solder pin dimensions | 1 x 1.4 mm |
| Solder pin length | 4.5 mm |
| Solid conductor | 0.2 … 6 mm² / 24 … 10 AWG |
| Strip length | 11 … 12 mm / 0.43 … 0.47 Inch |
| Total number of connection points | 1 |
| Total number of potentials | 1 |
| Weight | 4.752 g |
| Width | 9 mm / 0.354 inch |
