Datasheet Wago 734-366 — Ficha de datos

Tira combinada de 2 conductores; 100% protegido contra desajustes; 1,5 mm²; Espaciado entre clavijas 3.5 mm; 6 polos

Precios

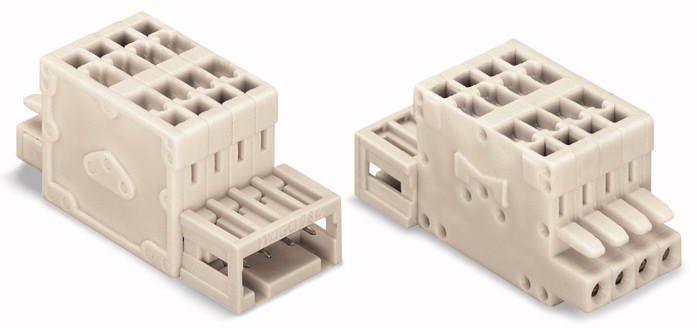

Wago 734-366

Actuation type	Operating tool
Clamping spring material	Chrome nickel spring steel (CrNi)
Color	light gray
Connection technology	CAGE CLAMP®
Connector connection type	for conductors
Contact material	Copper alloy
Contact plating	tin-plated
Contact type (pluggable connector)	Distribution connectors
Страна происхождения	PL

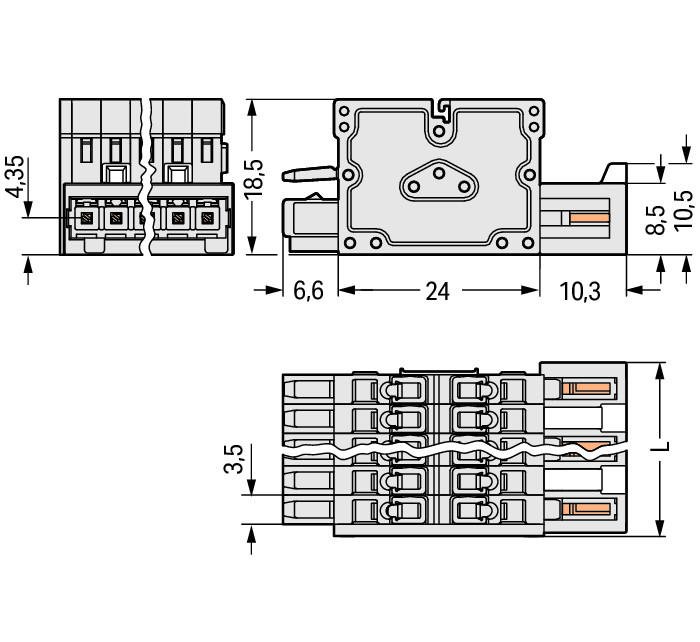

Depth	40.9 mm / 1.61 inch
Fine-stranded conductor	0.08 … 1.5 mm² / 28 … 14 AWG
Fine-stranded conductor with ferrule with plastic collar	0.25 … 1.5 mm²
Fine-stranded conductor with ferrule without plastic collar	0.25 … 1.5 mm²
Fire load	0.225 MJ
Flammability class per UL94	V0
Global Trade Item Number (GTIN)	4045454214531
Height	18.5 mm / 0.728 inch
Insulating material	Polyamide 66 (PA 66)
Legend (ratings)	(III / 2) ≙ Overvoltage category III / Pollution degree 2
Limit temperature range	-60 … +100 °C
Material group	I
Mismating protection	Yes
Number of Poles	6
Number of connection types	1
Number of levels	1
Pin spacing	3.5 mm (0.138 inch)
Product Group	3 (Multi Conn. System)
Rated current	10 A
Rated impulse voltage (II / 2)	2.5 kV
Rated impulse voltage (III / 2)	2.5 kV
Rated impulse voltage (III / 3)	2.5 kV
Rated voltage (II / 2)	320 V
Rated voltage (III / 2)	160 V
Rated voltage (III / 3)	160 V
Solid conductor	0.08 … 1.5 mm² / 28 … 14 AWG
Strip length	6 … 7 mm / 0.24 … 0.28 Inch
Total number of connection points	12
Total number of potentials	6
Weight	14.551 g
Width	23.85 mm / 0.939 inch

Serie: 734 (100 desde 708)

734366, 734 366
