Datasheet Wago 734-266 — Ficha de datos

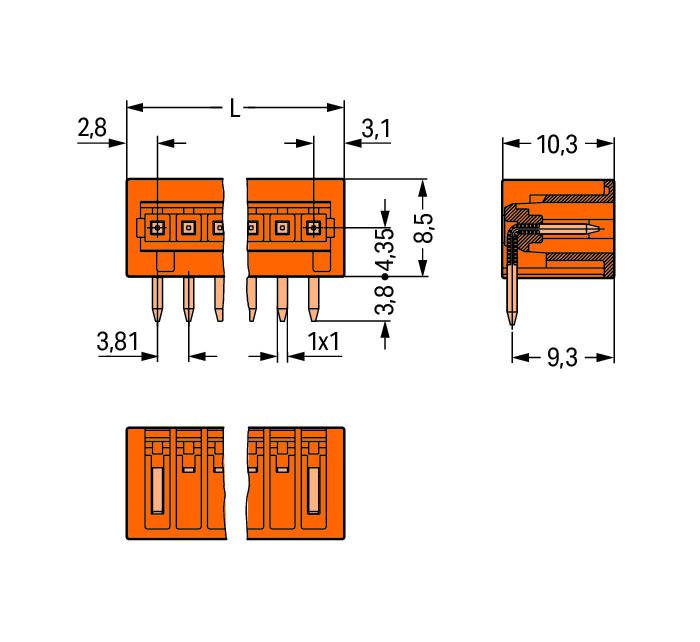

THT encabezado masculino; 1.0 x 1.0 mm pin de soldadura; angular; 100% protegido contra desajustes; Espaciado entre pasadores 3.81 mm; 6 polos

Precios

Wago 734-266

Color	orange
Connector connection type	for PCBs
Contact material	Electrolytic copper (Ecu)
Contact plating	tin-plated
Contact type (pluggable connector)	Male connector/plug
Страна происхождения	DE
Depth	10.3 mm / 0.406 inch
Drilled hole diameter (tolerance)	1.4(+ 0.1) mm
Fire load	0.026 MJ
Flammability class per UL94	V0
Global Trade Item Number (GTIN)	4044918872577
Height	12.3 mm / 0.484 inch
Height from the surface	8.5 mm / 0.335 inch
Insulating material	Polyamide 66 (PA 66)
Legend (ratings)	(III / 2) ≙ Overvoltage category III / Pollution degree 2
Limit temperature range	-60 … +100 °C
Material group	I
Mismating protection	Yes
Number of Poles	6
Number of levels	1
Number of solder pins per potential	1
PCB contact	THT
Pin spacing	3.81 mm (0.15 inch)
Product Group	3 (Multi Conn. System)
Rated current	10 A
Rated impulse voltage (II / 2)	2.5 kV
Rated impulse voltage (III / 2)	2.5 kV
Rated impulse voltage (III / 3)	2.5 kV
Rated voltage (II / 2)	320 V
Rated voltage (III / 2)	160 V
Rated voltage (III / 3)	160 V
Solder pin arrangement	over the entire male connector, in line
Solder pin dimensions	1 x 1 mm
Solder pin length	3.8 mm
Total number of potentials	6
Weight	1.662 g
Width	24.95 mm / 0.982 inch

Serie: 734 (100 desde 708)

734266, 734 266
