Datasheet Wago 231-132/001-000/105-604 — Ficha de datos

Fabricante	Wago
Serie	231
Numero de parte	231-132/001-000/105-604

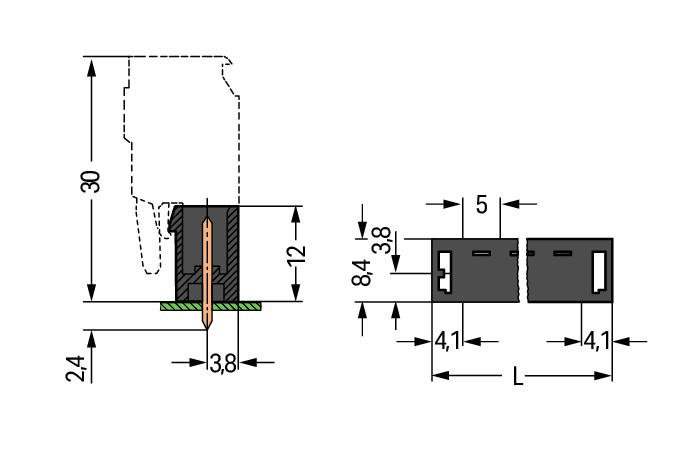

THR encabezado masculino; 1.0 x 1.0 mm pin de soldadura; Derecho; Espaciado de pasador de 5 mm; 2 polos

Precios

Descripción detallada

Wago 231-132/001-000/105-604

Paramétricos

Color	black
Connector connection type	for PCBs
Contact material	Electrolytic copper (Ecu)
Contact plating	tin-plated
Contact type (pluggable connector)	Male connector/plug
Страна происхождения	DE
Depth	8.4 mm / 0.331 inch
Fire load	0.02 MJ
Flammability class per UL94	V0
Global Trade Item Number (GTIN)	4044918847292
Height	14.4 mm / 0.567 inch
Height from the surface	12 mm / 0.472 inch
Insulating material	Polyphtalamide (PPA GF)
Legend (ratings)	(III / 2) ≙ Overvoltage category III / Pollution degree 2
Limit temperature range	-60 … +100 °C
Material group	I
Mating direction to the PCB	90 °
Mismating protection	No
Number of Poles	2
Number of levels	1
Number of solder pins per potential	1
PCB contact	THR
Pin spacing	5 mm (0.197 inch)
Plated through-hole diameter (THR)	1.4 (+ 0.1) mm
Product Group	3 (Multi Conn. System)
Rated current	12 A
Rated impulse voltage (II / 2)	4 kV
Rated impulse voltage (III / 2)	4 kV
Rated impulse voltage (III / 3)	4 kV
Rated voltage (II / 2)	630 V
Rated voltage (III / 2)	320 V
Rated voltage (III / 3)	320 V
Solder pin arrangement	over the entire male connector, in line
Solder pin dimensions	1 x 1 mm
Solder pin length	2.4 mm
Total number of potentials	2
Weight	0.902 g
Width	13.2 mm / 0.52 inch
