Datasheet Wago 231-132/001-000 — Ficha de datos

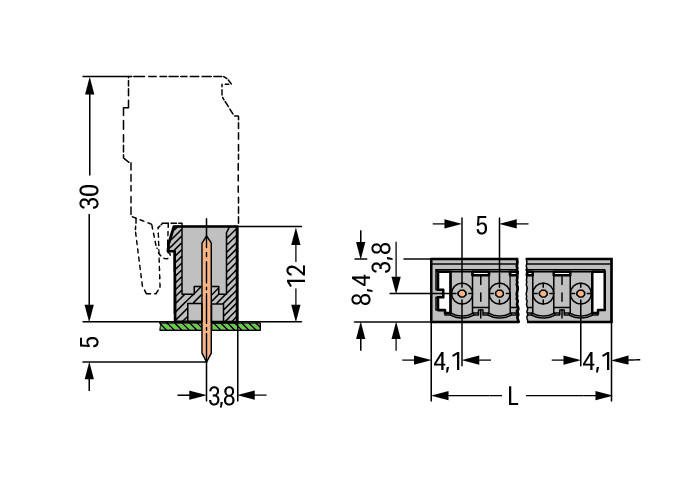

THT encabezado masculino; 1.0 x 1.0 mm pin de soldadura; Derecho; Espaciado de pasador de 5 mm; 2 polos
Precios
Descripción detallada
Paramétricos
| Color | gray |
| Connector connection type | for PCBs |
| Contact material | Electrolytic copper (Ecu) |
| Contact plating | tin-plated |
| Contact type (pluggable connector) | Male connector/plug |
| Страна происхождения | DE |
| Depth | 8.4 mm / 0.331 inch |
| Drilled hole diameter (tolerance) | 1.4(+ 0.1) mm |
| Fire load | 0.017 MJ |
| Flammability class per UL94 | V0 |
| Global Trade Item Number (GTIN) | 4044918862837 |
| Height | 17 mm / 0.669 inch |
| Height from the surface | 12 mm / 0.472 inch |
| Insulating material | Polyamide 66 (PA 66) |
| Legend (ratings) | (III / 2) ≙ Overvoltage category III / Pollution degree 2 |
| Limit temperature range | -60 … +100 °C |
| Material group | I |
| Mating direction to the PCB | 90 ° |
| Mismating protection | No |
| Number of Poles | 2 |
| Number of levels | 1 |
| Number of solder pins per potential | 1 |
| PCB contact | THT |
| Pin spacing | 5 mm (0.197 inch) |
| Product Group | 3 (Multi Conn. System) |
| Rated current | 12 A |
| Rated impulse voltage (II / 2) | 4 kV |
| Rated impulse voltage (III / 2) | 4 kV |
| Rated impulse voltage (III / 3) | 4 kV |
| Rated voltage (II / 2) | 630 V |
| Rated voltage (III / 2) | 320 V |
| Rated voltage (III / 3) | 320 V |
| Solder pin arrangement | over the entire male connector, in line |
| Solder pin dimensions | 1 x 1 mm |
| Solder pin length | 5 mm |
| Total number of potentials | 2 |
| Weight | 0.806 g |
| Width | 13.2 mm / 0.52 inch |
Linea modelo
Serie: 231 (100 desde 1349)
- 231-118/008-000 231-118/026-000 231-118/027-000 231-118/031-000 231-118/037-000 231-118/102-000 231-119/008-000 231-119/026-000 231-119/027-000 231-119/031-000 231-119/037-000 231-119/102-000 231-120/008-000 231-120/026-000 231-120/027-000 231-120/031-000 231-120/037-000 231-120/102-000 231-121/008-000 231-121/026-000 231-121/027-000 231-121/031-000 231-121/037-000 231-121/102-000 231-122/008-000 231-122/026-000 231-122/026-000/035-000 231-122/027-000 231-122/031-000 231-122/037-000 231-122/102-000 231-123/008-000 231-123/026-000 231-123/027-000 231-123/031-000 231-123/037-000 231-123/102-000 231-124/008-000 231-124/026-000 231-124/027-000 231-124/031-000 231-124/037-000 231-124/102-000 231-125 231-126 231-127 231-128 231-129 231-130 231-131 231-132/001-000 231-132/001-000/105-604 231-132/001-000/105-604/997-405 231-132/040-000 231-133/001-000 231-133/001-000/105-604 231-133/001-000/105-604/997-405 231-133/040-000 231-134/001-000 231-134/001-000/105-604 231-134/001-000/105-604/997-407 231-135/001-000 231-135/001-000/105-604 231-135/001-000/105-604/997-407 231-135/040-000 231-136/001-000 231-136/001-000/105-604 231-136/001-000/105-604/997-407 231-136/040-000 231-137/001-000 231-137/001-000/105-604 231-138/001-000 231-138/001-000/105-604 231-138/001-000/105-604/997-407 231-139/001-000 231-139/001-000/105-604 231-139/001-000/105-604/997-409 231-140/001-000 231-140/001-000/105-604 231-140/001-000/105-604/997-409 231-141/001-000 231-141/001-000/105-604 231-141/001-000/105-604/997-409 231-142/001-000 231-142/001-000/105-604 231-142/001-000/105-604/997-409 231-143/001-000 231-144/001-000 231-144/040-000 231-144/046-000 231-145/001-000 231-146/001-000 231-147/001-000 231-148/001-000 231-149/001-000 231-150/001-000 231-151/001-000 231-152/001-000 231-153/001-000 231-154/001-000
Clasificación del fabricante
- PCB Interconnect | Pluggable Connection Systems
Otros nombres:
231132/001000, 231 132/001 000
