Datasheet Wago 231-128 — Ficha de datos

Fabricante	Wago
Serie	231
Numero de parte	231-128

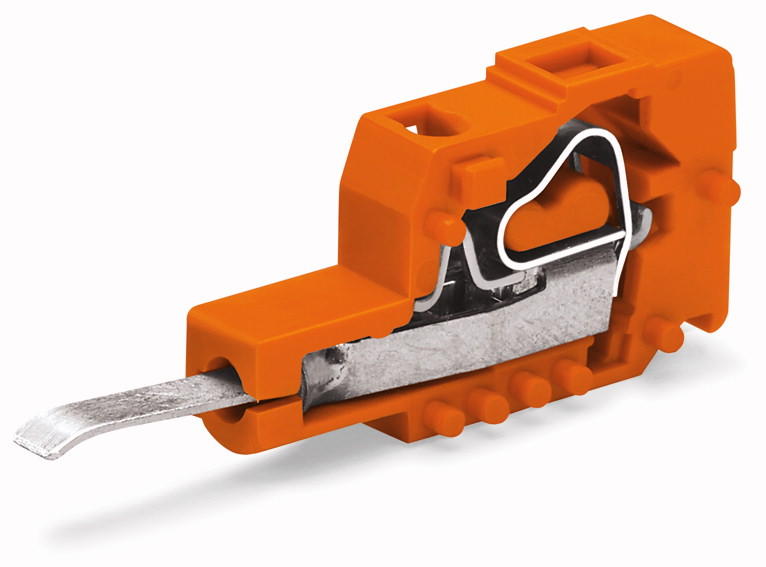

Módulo de prueba de enchufe con perno de contacto; Distancia entre clavijas 5.08 mm / 0.2 in

Precios

Paramétricos

Clamping spring material	Chrome nickel spring steel (CrNi)
Color	orange
Connection technology	CAGE CLAMP®
Contact material	Electrolytic copper (Ecu)
Contact plating	tin-plated
Страна происхождения	DE
Depth	36.45 mm / 1.435 inch
Fine-stranded conductor	0.08 … 2.5 mm² / 28 … 12 AWG
Fire load	0.024 MJ
Flammability class per UL94	V0
Global Trade Item Number (GTIN)	4045454761622
Height	14.3 mm / 0.563 inch
Insulating material	Polyamide 66 (PA 66)
Legend (ratings)	(III / 2) ≙ Overvoltage category III / Pollution degree 2
Limit temperature range	-60 … +105 °C
Material group	I
Number of connection types	1
Packaging type	BOX
Pin spacing	5.08 mm (0.2 inch)
Product Group	3 (Multi Conn. System)
Rated current	0.5 A
Rated impulse voltage (III / 2)	2.5 kV
Rated voltage (III / 2)	250 V
Solid conductor	0.08 … 2.5 mm² / 28 … 12 AWG
Strip length	12 … 13 mm / 0.47 … 0.51 Inch
Test contact length	10 mm
Total number of connection points	1
Total number of potentials	1
Weight	1.9 g
Width	5.08 mm / 0.2 inch
