Datasheet Wago 231-126 — Ficha de datos

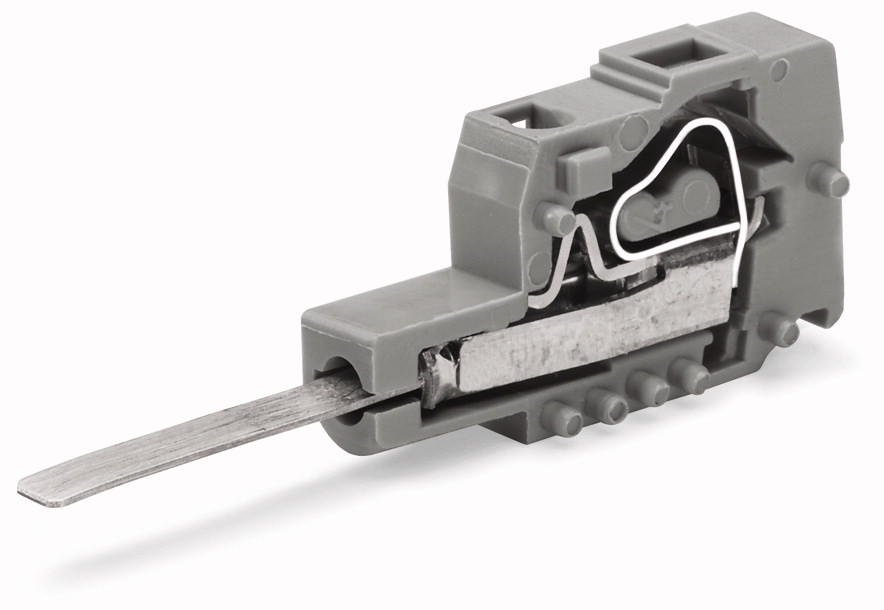

Módulo de prueba de enchufe con perno de contacto; para las series 280, 736, 737, 738, 780; Separación de clavijas 5 mm / 0.197 in
Precios
Paramétricos
| Clamping spring material | Chrome nickel spring steel (CrNi) |
| Color | gray |
| Connection technology | CAGE CLAMP® |
| Contact material | Electrolytic copper (Ecu) |
| Contact plating | tin-plated |
| Страна происхождения | DE |
| Depth | 43.45 mm / 1.711 inch |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Fire load | 0.024 MJ |
| Flammability class per UL94 | V0 |
| Global Trade Item Number (GTIN) | 4045454193584 |
| Height | 14.3 mm / 0.563 inch |
| Insulating material | Polyamide 66 (PA 66) |
| Legend (ratings) | (III / 2) ≙ Overvoltage category III / Pollution degree 2 |
| Limit temperature range | -60 … +105 °C |
| Material group | I |
| Number of connection types | 1 |
| Pin spacing | 5 mm (0.197 inch) |
| Product Group | 3 (Multi Conn. System) |
| Rated current | 0.5 A |
| Rated impulse voltage (III / 2) | 2.5 kV |
| Rated voltage (III / 2) | 250 V |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Strip length | 12 … 13 mm / 0.47 … 0.51 Inch |
| Test contact length | 17 mm |
| Total number of connection points | 1 |
| Total number of potentials | 1 |
| Weight | 2.1 g |
| Width | 5 mm / 0.197 inch |
Linea modelo
Serie: 231 (100 desde 1349)
- 231-117/008-000 231-117/026-000 231-117/027-000 231-117/031-000 231-117/037-000 231-117/102-000 231-118/008-000 231-118/026-000 231-118/027-000 231-118/031-000 231-118/037-000 231-118/102-000 231-119/008-000 231-119/026-000 231-119/027-000 231-119/031-000 231-119/037-000 231-119/102-000 231-120/008-000 231-120/026-000 231-120/027-000 231-120/031-000 231-120/037-000 231-120/102-000 231-121/008-000 231-121/026-000 231-121/027-000 231-121/031-000 231-121/037-000 231-121/102-000 231-122/008-000 231-122/026-000 231-122/026-000/035-000 231-122/027-000 231-122/031-000 231-122/037-000 231-122/102-000 231-123/008-000 231-123/026-000 231-123/027-000 231-123/031-000 231-123/037-000 231-123/102-000 231-124/008-000 231-124/026-000 231-124/027-000 231-124/031-000 231-124/037-000 231-124/102-000 231-125 231-126 231-127 231-128 231-129 231-130 231-131 231-132/001-000 231-132/001-000/105-604 231-132/001-000/105-604/997-405 231-132/040-000 231-133/001-000 231-133/001-000/105-604 231-133/001-000/105-604/997-405 231-133/040-000 231-134/001-000 231-134/001-000/105-604 231-134/001-000/105-604/997-407 231-135/001-000 231-135/001-000/105-604 231-135/001-000/105-604/997-407 231-135/040-000 231-136/001-000 231-136/001-000/105-604 231-136/001-000/105-604/997-407 231-136/040-000 231-137/001-000 231-137/001-000/105-604 231-138/001-000 231-138/001-000/105-604 231-138/001-000/105-604/997-407 231-139/001-000 231-139/001-000/105-604 231-139/001-000/105-604/997-409 231-140/001-000 231-140/001-000/105-604 231-140/001-000/105-604/997-409 231-141/001-000 231-141/001-000/105-604 231-141/001-000/105-604/997-409 231-142/001-000 231-142/001-000/105-604 231-142/001-000/105-604/997-409 231-143/001-000 231-144/001-000 231-144/040-000 231-144/046-000 231-145/001-000 231-146/001-000 231-147/001-000 231-148/001-000
Clasificación del fabricante
- PCB Interconnect
Otros nombres:
231126, 231 126
