Datasheet Wago 2022-105/000-039/999-953 — Ficha de datos

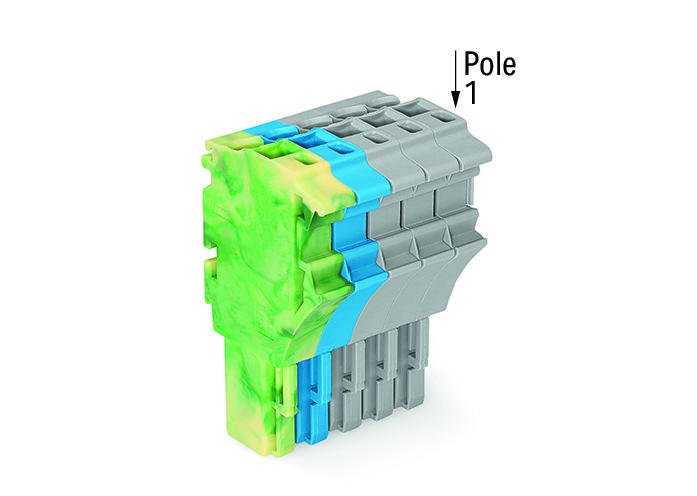

Enchufe hembra de 1 conductor; 2,5 mm²; 5 polos
Precios
Descripción detallada
Paramétricos
| Actuation type | Operating tool Push-in |
| Color | green-yellow, blue, gray |
| Connectable conductor materials | Copper |
| Connection technology | Push-in CAGE CLAMP® |
| Connector connection type | for conductors |
| Contact type (pluggable connector) | Female connector/socket |
| Страна происхождения | DE |
| Depth | 22.4 mm / 0.882 inch |
| Fine-stranded conductor | 0.25 … 4 mm² / 22 … 12 AWG |
| Fine-stranded conductor with ferrule, push-in termination, from | 0.75 mm² / 18 AWG |
| Global Trade Item Number (GTIN) | 4055143534413 |
| Height | 40.5 mm / 1.594 inch |
| Insulating material | Polyamide 66 (PA 66) |
| Marking level | Side marking |
| Nominal cross section | 2.5 mm² |
| Number of Poles | 5 |
| Rated voltage EN (Ex e II) | 630 V |
| Solid conductor | 0.25 … 4 mm² / 22 … 12 AWG |
| Solid conductor, push-in termination | 0.75 … 4 mm² / 18 … 12 AWG |
| Strip length | 10 … 12 mm / 0.39 … 0.47 Inch |
| Total number of connection points | 5 |
| Total number of potentials | 5 |
| Type of wiring | Front-entry wiring |
| Weight | 16.542 g |
| Width | 26 mm / 1.024 inch |
