Datasheet Wago 2022-108/000-039 — Ficha de datos

Fabricante	Wago
Serie	2022
Numero de parte	2022-108/000-039

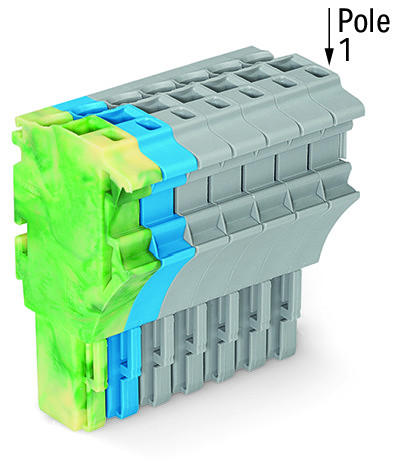

Enchufe hembra de 1 conductor; 2,5 mm²; 8 polos

Precios

Paramétricos

Actuation type	Operating tool Push-in
Color	green-yellow, blue, gray
Connectable conductor materials	Copper
Connection technology	Push-in CAGE CLAMP®
Connector connection type	for conductors
Contact type (pluggable connector)	Female connector/socket
Страна происхождения	DE
Depth	22.4 mm / 0.882 inch
Fine-stranded conductor	0.25 … 4 mm² / 22 … 12 AWG
Fine-stranded conductor with ferrule, push-in termination, from	0.75 mm² / 18 AWG
Fire load	0.431 MJ
Global Trade Item Number (GTIN)	4045454915810
Height	40.5 mm / 1.594 inch
Insulating material	Polyamide 66 (PA 66)
Legend (ratings)	(III / 3) ≙ Overvoltage category III / Pollution degree 3
Marking level	Side marking
Nominal cross section	2.5 mm²
Number of Poles	8
Product Group	18 (X-COM-System)
Rated current	24 A
Rated current (2)	32 A
Rated impulse voltage (III / 3)	6 kV
Rated voltage (III / 3)	690 V
Solid conductor	0.25 … 4 mm² / 22 … 12 AWG
Solid conductor, push-in termination	0.75 … 4 mm² / 18 … 12 AWG
Strip length	10 … 12 mm / 0.39 … 0.47 Inch
Total number of connection points	8
Total number of potentials	8
Type of wiring	Front-entry wiring
Weight	26.51 g
Width	41.6 mm / 1.638 inch

Linea modelo

Serie: 2022 (100 desde 251)

2022-104/000-039/999-953 2022-104/123-000 2022-104/133-000 2022-104/143-000 2022-104/999-953 2022-105 2022-105/000-006 2022-105/000-012 2022-105/000-016 2022-105/000-036 2022-105/000-037 2022-105/000-038 2022-105/000-038/999-953 2022-105/000-039 2022-105/000-039/999-953 2022-105/123-000 2022-105/134-000 2022-105/144-000 2022-105/999-953 2022-106 2022-106/000-006 2022-106/000-012 2022-106/000-016 2022-106/000-036 2022-106/000-037 2022-106/000-038 2022-106/000-038/999-953 2022-106/000-039 2022-106/000-039/999-953 2022-106/123-000 2022-106/134-000 2022-106/144-000 2022-106/999-953 2022-107 2022-107/000-006 2022-107/000-012 2022-107/000-016 2022-107/000-036 2022-107/000-037 2022-107/000-038 2022-107/000-039 2022-107/123-000 2022-107/135-000 2022-107/145-000 2022-107/999-953 2022-108 2022-108/000-006 2022-108/000-012 2022-108/000-016 2022-108/000-037 2022-108/000-039 2022-108/123-000 2022-108/135-000 2022-108/145-000 2022-108/999-953 2022-109 2022-109/000-006 2022-109/000-012 2022-109/000-016 2022-109/000-036 2022-109/000-037 2022-109/000-038 2022-109/000-039 2022-109/123-000 2022-109/135-000 2022-109/145-000 2022-110 2022-110/000-006 2022-110/000-012 2022-110/000-016 2022-110/000-037 2022-110/000-039 2022-110/123-000 2022-110/135-000 2022-110/145-000 2022-111 2022-111/000-006 2022-111/000-012 2022-111/000-016 2022-111/000-037 2022-111/000-039 2022-111/126-000 2022-111/136-000 2022-111/146-000 2022-112 2022-112/000-006 2022-112/000-012 2022-112/000-016 2022-112/000-036 2022-112/000-037 2022-112/000-038 2022-112/000-039 2022-112/126-000 2022-112/136-000 2022-112/146-000 2022-113 2022-113/000-006 2022-113/000-012 2022-113/000-016 2022-113/000-037

Clasificación del fabricante

Rail / Chassis Terminal blocks | Pluggable Connection Systems

Otros nombres:

2022108/000039, 2022 108/000 039
