Datasheet Wago 870-559 — Ficha de datos

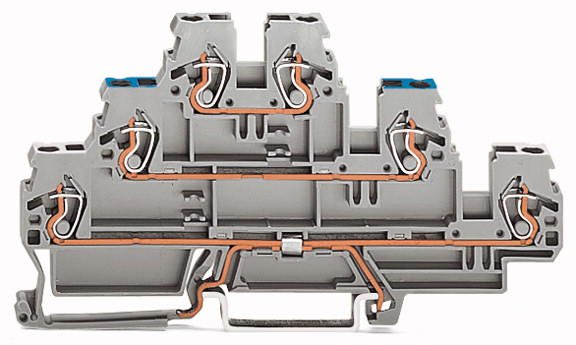

Bloque de terminales de tres pisos; conexión de pantalla; 5 mm de ancho; gris
Precios
Paramétricos
| Actuation type | Operating tool |
| Color | gray |
| Connectable conductor materials | Copper |
| Connection technology | CAGE CLAMP® |
| Страна происхождения | DE |
| Depth | 106 mm / 4.173 inch |
| Design | horizontal |
| Fine-stranded conductor | 0.08 … 4 mm² / 28 … 12 AWG |
| Fire load | 0.275 MJ |
| Global Trade Item Number (GTIN) | 4045454129088 |
| Height from upper-edge of DIN-35 rail | 52.5 mm / 2.067 inch |
| Legend (ratings) | (III / 3) ≙ Overvoltage category III / Pollution degree 3 |
| Marking level | Side marking |
| Number of levels | 3 |
| Potential marking | Schirm/L/L |
| Rated current | 24 A |
| Rated impulse voltage (III / 3) | 6 kV |
| Rated voltage (III / 3) | 500 V |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Strip length | 6 … 7 mm / 0.24 … 0.28 Inch |
| Total number of connection points | 6 |
| Total number of potentials | 3 |
| Type of mounting | DIN-35 rail |
| Type of wiring | Front-entry wiring |
| Weight | 18.995 g |
| Width | 5 mm / 0.197 inch |
